Parts

11-2

Part 1121836_03

E 11/2014 Nordson Corporation

How to Use Illustrated Parts List

The parts lists in this section are divided into the following columns:

Item— Identifies illustrated parts that can be obtained from Nordson.

Part— Nordson part number for each spare part shown in the illustration.

A row of hyphens in the column Part (- - - - -) indicates that this part can

not be ordered separately.

Description— This column contains the name of the part and, when

appropriate, its dimensions and other properties. The points in the

column Description show the relationship between assemblies,

subassemblies and single parts.

Quantity— The quantity needed per unit, assembly or subassembly. The

abbreviation AR (as required) is used when this item is a bulk item or

when the quantity per assembly depends on the product version or

model.

Melter — This column indicates the melter P/N in which this part is

installed. It is not contained in all of the melters shown on the back of the

cover page.

Fasteners

Fasteners are shown as Fx in every illustration, whereby ”x” indicates the

number of the fastener in the list Schedule of Fasteners at the end of this

document.

Component Designation

The electrical components are labeled in accordance with DIN 40719, part 2.

Parts

11-3

Part 1121836_03

E 11/2014 Nordson Corporation

Assembly Overview

Figure 11-1

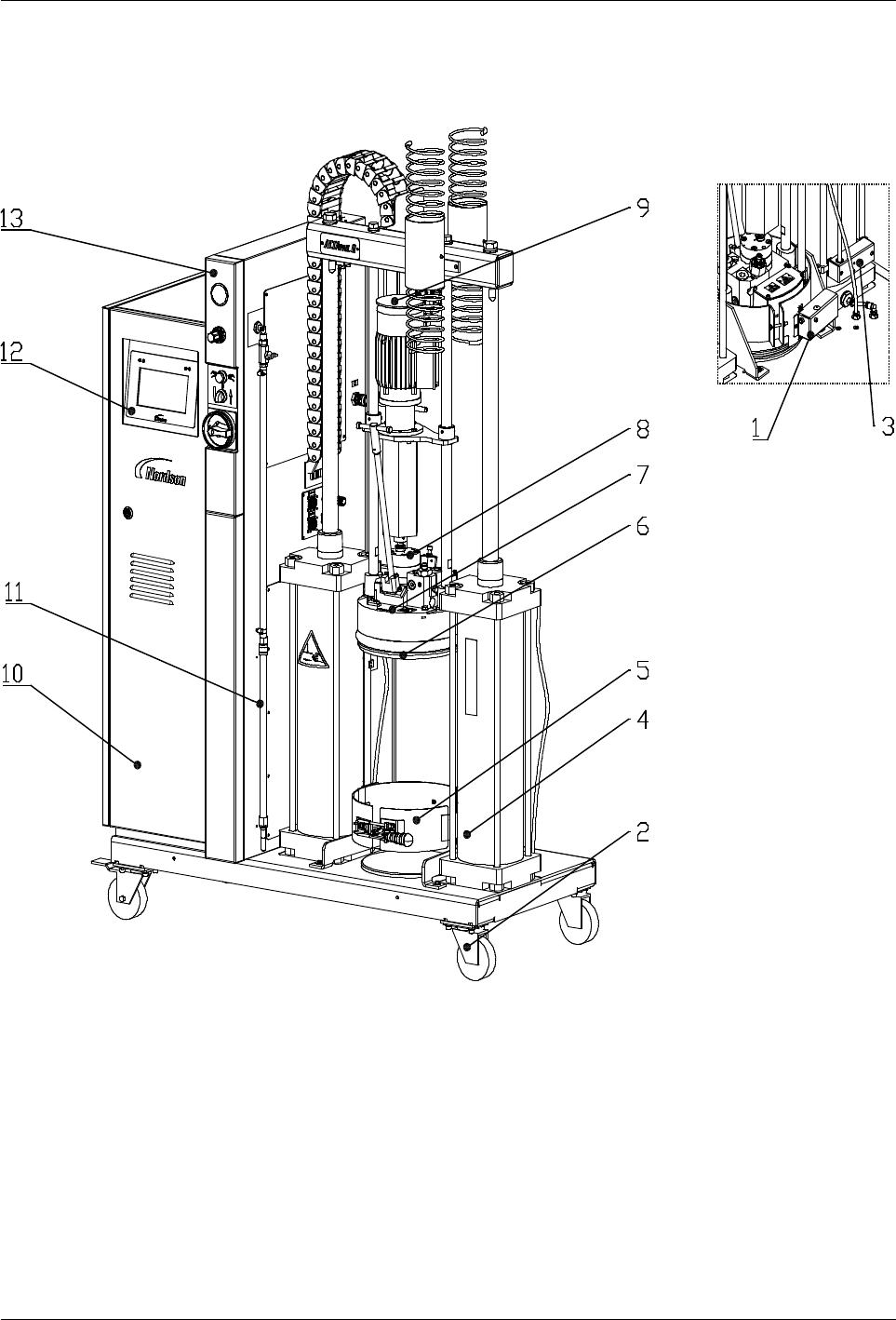

1. Device, container detection

2. Castors

3. Device platen position inquiry

4. Pneumatic cylinder D160-520

5. Pail clamp

6. Melting plate

7. Platen assembly

8. Pump

9. Motor

10. Cabinet assembly

11. Aeration (manual)

12. LCD touch screen

13. Cover front switch

Parts

11-4

Part 1121836_03

E 11/2014 Nordson Corporation

Ship With Kit

Item Part Description Quantity Melter

- 7403875 hose connect.ftg.a9/16UNF-a1 1/16UNF 1

- 7126911 hose connect.ftg.a1 1/16UNF-a1 1/16UNF 1

- 7407078 PUSH IN FITTINF,QS-12-10 1

- 7407079 PUSH IN FITTINF,QS-12-08 1

- 7403849 CATCH PAN VP VX 2
