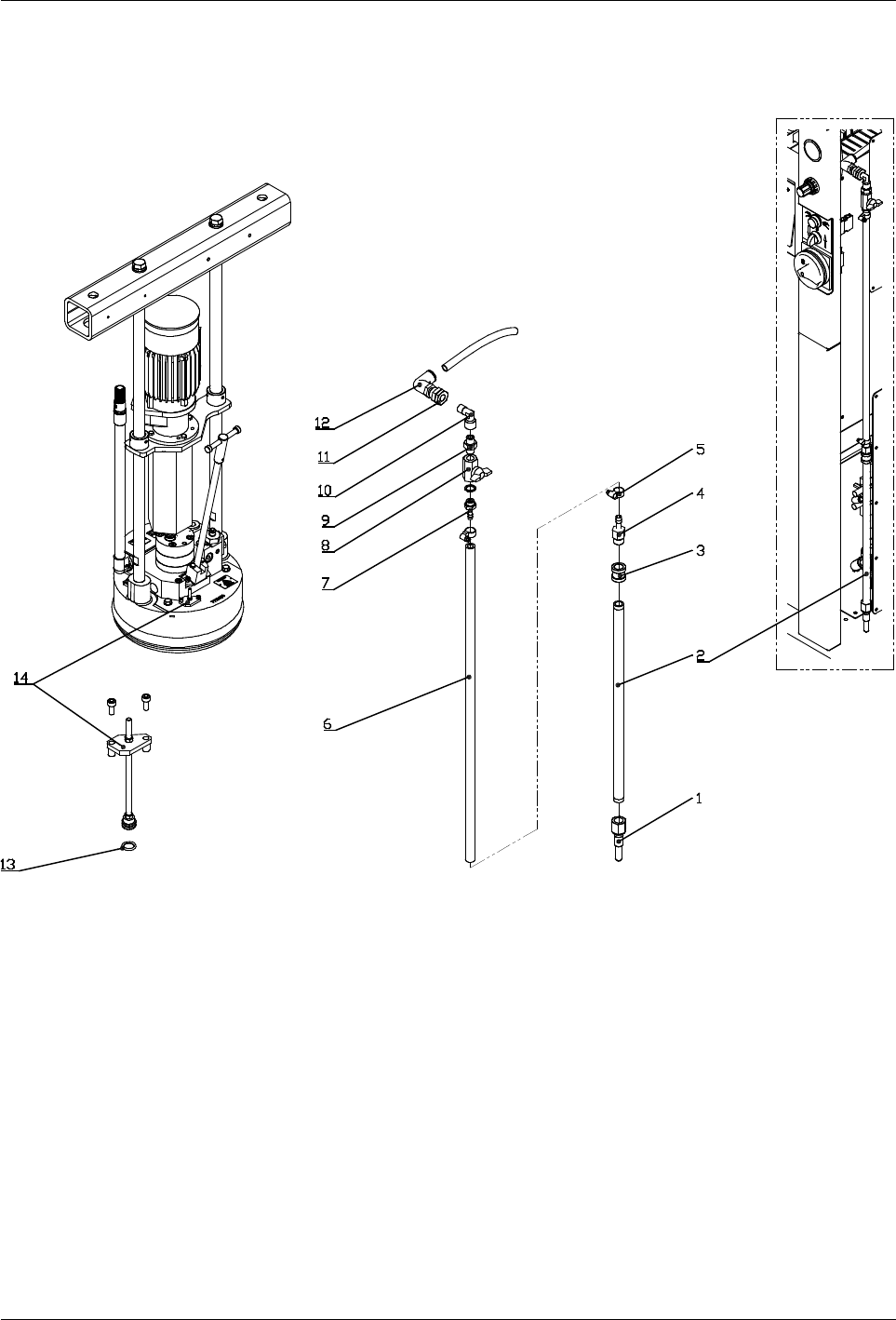

Parts 1 1 -15 Part 1121836_03 E 1 1/2014 Nordson Corporation Aeration (Manual) Figure 11-8

Parts

11-14

Part 1121836_03

E 11/2014 Nordson Corporation

Item Part Description Quantity Note Melter

1 7116879 MELTING PLATE, SMOOTH, VP, GP, D286, VX 1

Smooth

7407065

7407067

7407068

7407069

2 250263 O-RING 22x2 VITON 2

Item Part Description Quantity Note Melter

1 7116858 MELTING PLATE, SMOOTH, VP, GP, D280, VX 1 Smooth

7407039

7407041

7407664

7407666

2 250263 O-RING 22x2 VITON 2

Item Part Description Quantity Note Melter

1 7116860 MELTING PLATE, AXIAL, VP, GP, D286, VX 1 Axial

7407670

7407671

2 250263 O-RING 22x2 VITON 2

Parts

11-15

Part 1121836_03

E 11/2014 Nordson Corporation

Aeration (Manual)

Figure 11-8

Parts

11-16

Part 1121836_03

E 11/2014 Nordson Corporation

Item Part Description Quantity Note Melter

------ 7407070 SERVICE KIT,AERATION MANUAL,ALTAPAIL II ------

1 ------ AERATION PIPE,MANUAL AERATION 1

2 ------ PIPE,DOUBLE END R3/8",L=400 1

3 ------ PIPE CONNECTOR,STRAIGHT,i=G3/8",i=G3/8" 1

4 ------ BARB FITTING,SWIVEL,G3/8",Di=9,L=54 1

5 ------ hose clamp D10-16/9 DIN3017 1

6 ------ hose grey type:801-9,5 0.7M

7 ------ BARB FITTING,G1/4 MALE, Di=9,L=38 1

8 ------ ball valve 2ways iG1/4-iG1/4 DN8 PN10 1

9 ------ double nipple aR1/4-aR1/4 1

10 ------ quick thread-in fitting -W-d06-G1/8-TURN 1

11 ------ bulkhead connection iG1/4 1

12 ------ PUSH IN FITTING, QSL-1/4-12 1

------ 7407071 SERVICE KIT,PUNCH PLUG,ALTAPAIL II ------

13 ------ PLUG ASSY,PUNCH,ALTAPAIL II 1

14 ------ O-RING 11x2 VITON 1

AR: As Required
