Parts 1 1 -22 Part 1121836_03 E 1 1/2014 Nordson Corporation This page intentiona lly left blank.
Parts
11-21
Part 1121836_03
E 11/2014 Nordson Corporation
Machine Feet / Casters
Figure 11-13
Item Part Description Quantity Note Melter
1 ------ BASE,ALTA PAIL 1
------ 7407072 SERVICE KIT,CASTOR,ALTAPAIL II ------ Includes
4
casters
2 ------ CASTOR, SWIVEL,100MM, 130KG 2
3 ------ CASTOR, BRAKING,100MM, 130KG 2
4 ------ WASHER,LK,M,SPT,M8,STL,ZN 16
5 ------ SCR,SKT,M8X1.25X25,BL 16
Parts
11-22
Part 1121836_03
E 11/2014 Nordson Corporation
This page intentionally left blank.
Parts
11-23
Part 1121836_03
E 11/2014 Nordson Corporation

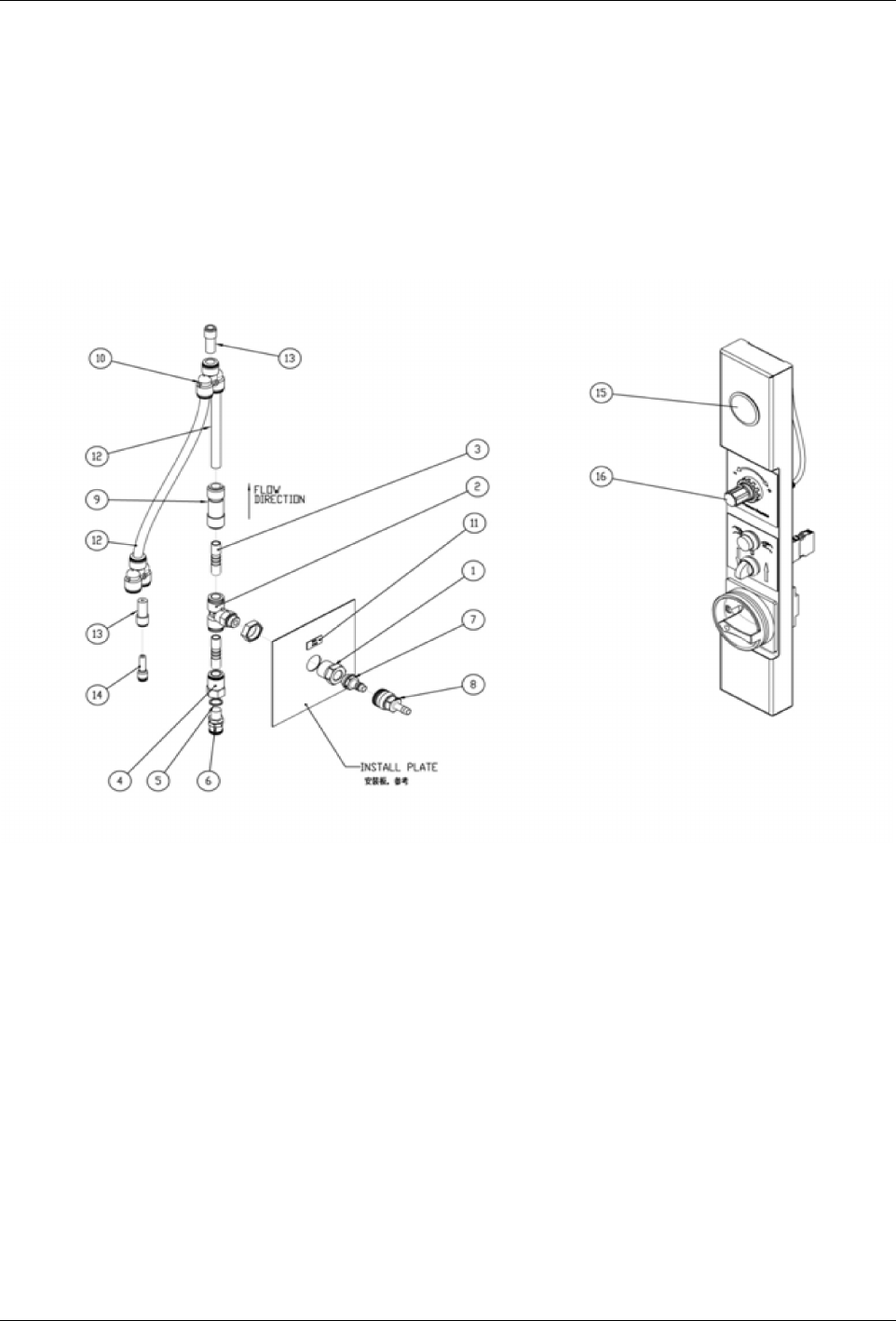

Pneumatic Components
Tower
Pneumatic Control
Figure 11-14
