101/144

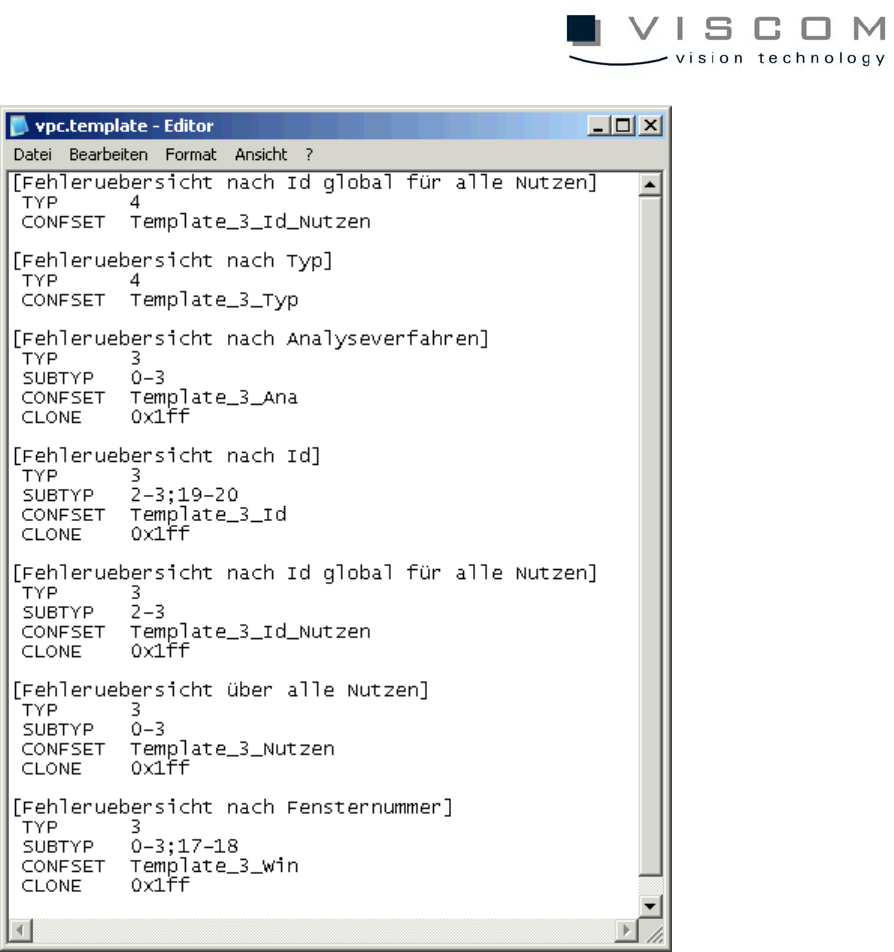

The diagram title is shown in square brackets. The keyword TYP indicates for

which diagram type the template is available; SUBTYP is possible only for type

3. The first table below shows the different possible subtypes.

CONFSET defines the configuration set to be loaded, and CLONE defines

which filter is loaded for the template (see also table 2).

102/144

6.1.8 Subtypes for diagram type 3

Subtype X-axis Total defects Can be used in

template

0 ID yes

1 ID yes yes

2 component body type yes

3 component body type yes yes

4 features no

5 machine name no

6 machine name yes no

7 inspection plan no

8 inspection plan yes no

9 variant no

10 variant yes no

11 window numbers no

12 window numbers yes no

13 operator no

14 operator yes no

15 bonder number no

16 bonder number yes no

17 inspection pattern yes

18 inspection pattern yes yes

19 global ID no

20 global ID yes no

21 single panel no

103/144

22 single panel yes no

23 barcode no

24 barcode yes no

6.1.9 Mask for CLONE

bar code filter 0x001

bond filter 0x002

component filter 0x004

features filter 0x008

operator filter 0x010

inspection pattern filter 0x020

inspection plan filter 0x040

machine filter 0x080

time filter 0x100

copy all filters 0x1ff
