32/144 1 selecting the inspection families from a scroll menu 2 entry of the inspection families' submode 3 entry of the ins pection window number 1 2 3
31/144

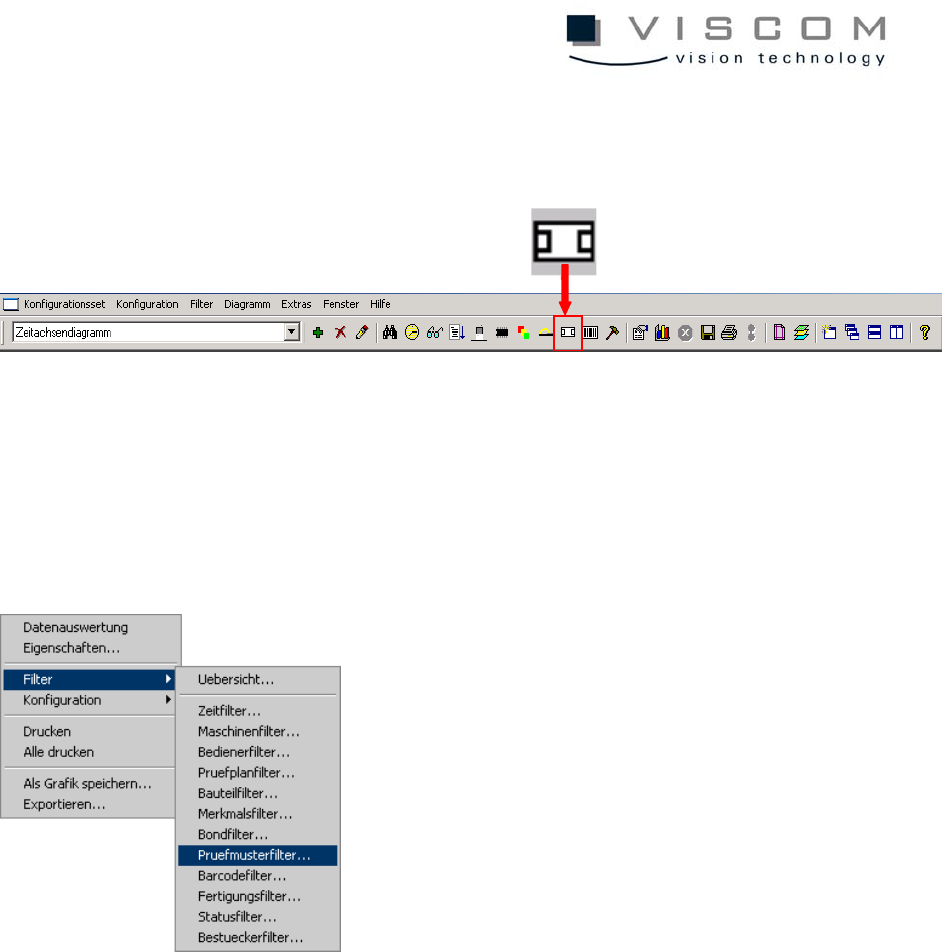

1.6.9 Inspection pattern filter
The inspection pattern filter defines the inspection mode and/or submode and
the window number for which the VPC files are evaluated.
This filter is significant for the machine programmer.
With it, it is possible to get very detailed information on the single inspection
program, for selective optimization of the program.
32/144
1 selecting the inspection families from a scroll menu
2 entry of the inspection families' submode
3 entry of the inspection window number
1
2
3
33/144
1.6.10 Production filter
The production filter defines both a line- and an order number. Thus it is also
possible to execute order-relevant evaluations.
1
2
