58/144

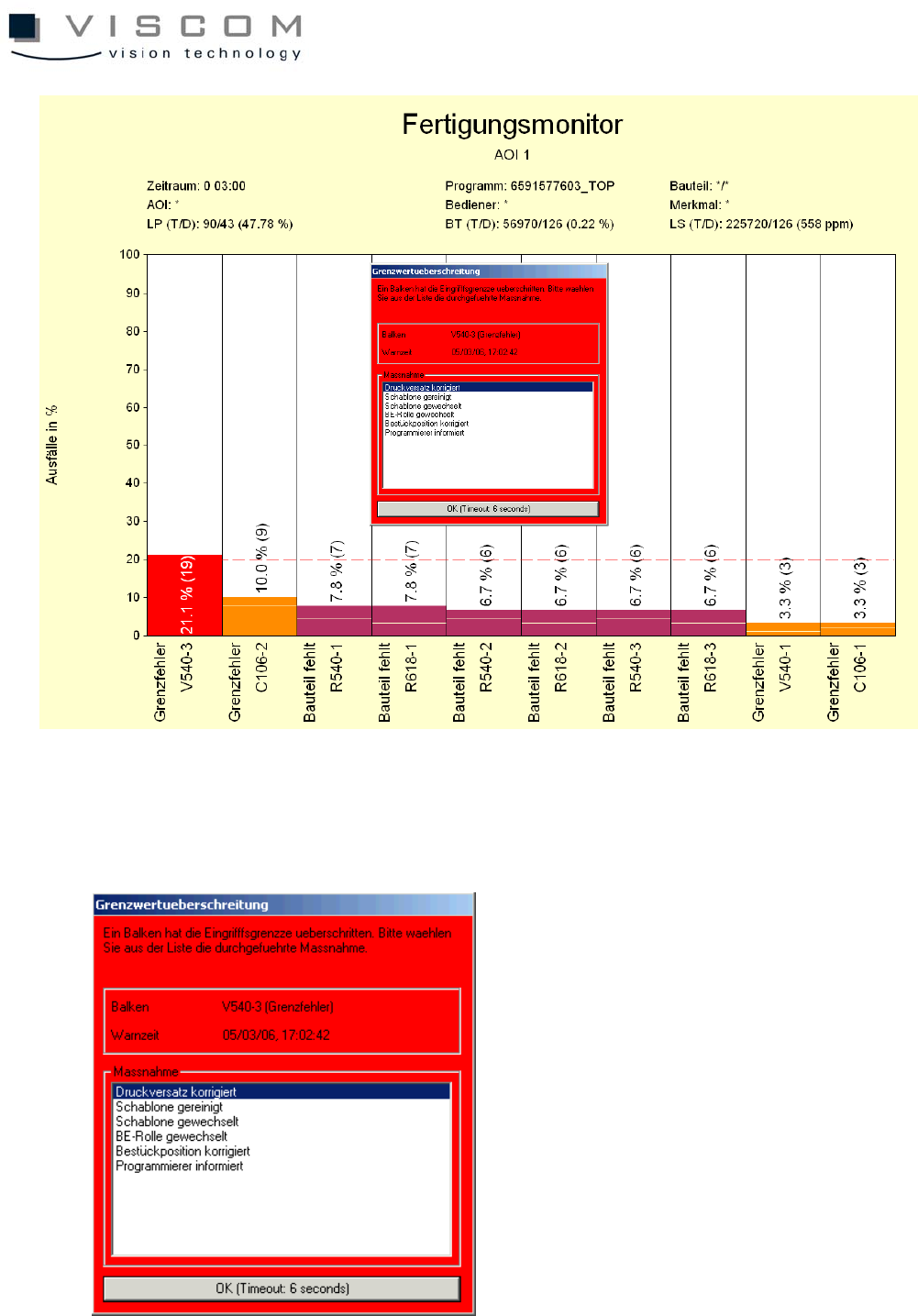

The data evaluation done here shows an exceeded warning limit. This opens a
"Limit exceeded" mask which refers to the first bar.
59/144
In the white window, the mask offers some solutions that can be configured as
needed. The selection measures can be entered through the file si_spc.lwtxt.
After the time determined with the parameter MessageTimeout in vpc.ini is over,
the mask closes automatically, and "TIMEOUT" is entered in the file
si_spc.lwlog.

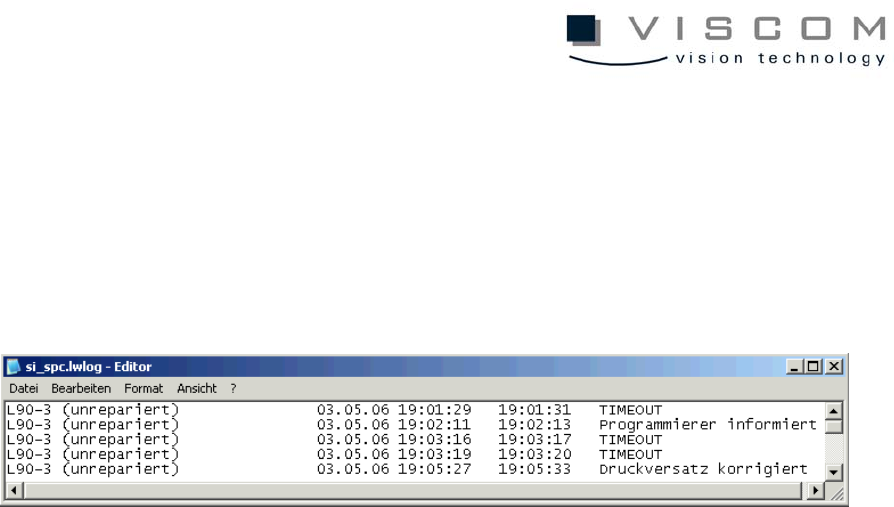

Here, the bars that exceed the limit are also listed. An entry consists of:
• the ID (defect feature always unrepaired),
• date,
• start of evaluation,
• end of evaluation,
• remedial action.
60/144
3.1 Exercise 4:
Please open the production monitor and evaluate the inspection plan
6591577603_BOT. For this, change the system time to 5/3/2006, 17:00 and
enter this inspection plan in si.name.
1. Set the path to the file si.name.
2. Enter the necessary parameters for the production monitor in the
vpc.ini file.
3. Then, set the time filter to 3 hours.
