25/144 1.6.6 Inspection plan filt er The inspection plan filter defines which inspection plan the VPC da ta will be evaluated for. The entry of wildcards (*) is allowed.

24/144

1 display of the previous filter

2 display of the next filter

3 delete the chosen filter

4 add a new filter

The number of the selected subfilter (1 of 1) is read out in the header (see

example, "Machine filters").

1.6.5 Machine filter

The machine filters offer the possibility to evaluate VPC data only from specific

machines, or to suppress VPC data from single machines.

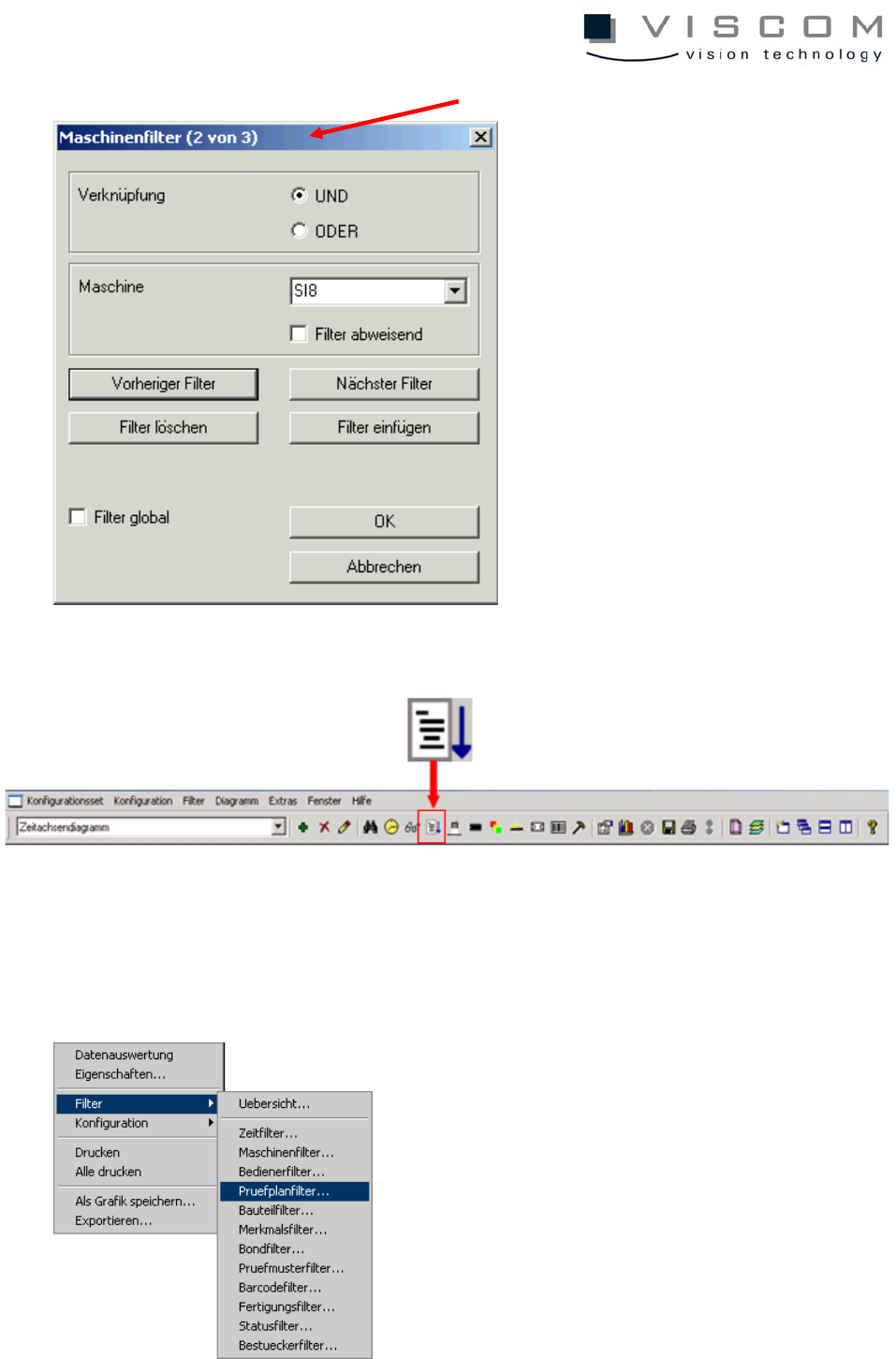

Subfilter number (here, 2 of 3)

25/144

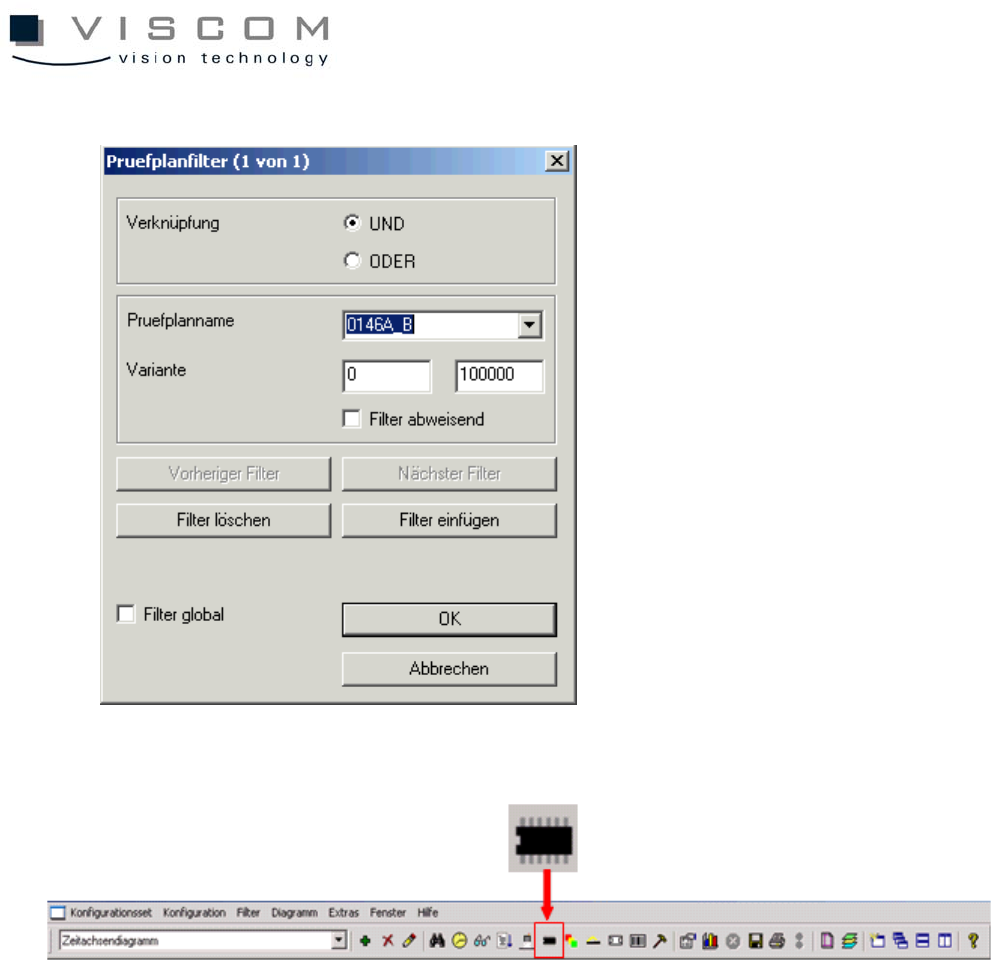

1.6.6 Inspection plan filter

The inspection plan filter defines which inspection plan the VPC data will be

evaluated for. The entry of wildcards (*) is allowed.

26/144

1.6.7 Component filter

The component filter defines the component type (component name or body

type and solder joint number) for which the VPC data should be evaluated. The

entry of wildcards (*) is allowed.
