User Manual For Cyclone LC Programmers 124

12.2.1.1 Reset

Instructs the program to start editing a NEW (as yet un-named) serial number file. It will throw

away the information for any serial number currently being edited unless that information has been

saved (Save Button). The new serial number is initialized with one (1) byte of binary.

12.2.1.2 Save

Pops up a Save dialog with the current serial number being edited into the file name and path as

shown in the Serial Number File window. If a file name has not been provided, a dialog will pop up

to allow the user select a file name. Save will save any setup information in the file Serialize.ini.

This file will initialize the setup information the next time the program is started.

12.2.2 Serial Number File

Displays the path and filename of the open Serial File, if saved.

12.2.3 Serial File Unique ID

Displays the unique ID associated with the Serial File. A unique ID is generated anytime a Serial

File is created or modified. Multiple programming images are able to share the same serial

numbers by referencing the same ID number (see Section 13.6 - Shared Serial Numbers). The

user can click the “Regenerate” button to assign a new unique ID to the current Serial File.

12.2.4 Serial File Name To Display

The name that will appear in the JSON viewer, Cyclone menu, and in the Name field of the

Cyclone Control GUI. A descriptive name can help to easily differentiate Serial Files.

12.2.5 Serial File Notes

Allows the user to save notes regarding the Serial File. These will appear in the JSON viewer

when viewing the properties of the Serial File, see Section 13.3 - Serial File Properties.

12.2.6 Number of Bytes in Serial Number

The up and down arrows allow the user to add or delete bytes for the serial number, the maximum

in hexadecimal = 0x10 (16 base ten), the minimum = 1.

• Up Arrow Click - Adds new bytes to the Serial Number. Each byte added appears as a

new column in the serial number representation. Added bytes are input as Binary Bytes,

i.e. the upper bound is FF and the lower bound is 00.

• Down Arrow Click - Deletes bytes from the right end of the Serial Number. Any previously

entered byte properties are lost.

12.2.7 Starting HEX Address

Assigns the starting address (in hexadecimal) of the device memory where the serial number will

be programmed.

12.2.8 Count Sequence

This window lets you test the serial number by counting up or down through the sequencing of the

serial number. The serial number will roll over the upper bounds of the highest serial number back

to the lower bounds of the serial number, and vice versa.

• Up Arrow Click - Counts the serial number up.

• Down Arrow Click - Counts the serial number down.

12.2.9 Serial Number Bytes as Hex

There is one display column for each byte in the serial number shown as printable ASCII

characters. Non-printable ASCII characters are indicated by a blank gray box.

• Up Arrow Click - Counts the serial number up.

User Manual For Cyclone LC Programmers 125

• Down Arrow Click - Counts the serial number down.

• Click into the edit Box to enter any number within range. Values entered will be limited by the

upper and lower bounds.

12.2.10 Hex Upper Bounds

There is one display column for each upper bound of the byte in the serial number in hex.

• Up Arrow Click - Increases the upper bound by one with a maximum of FF Hex.

• Down Arrow Click - Decreases the upper bound by one with a minimum of the current

serial number byte value.

• Click into the edit Box to enter any number within range (from the Serial number value up

to a maximum of Hex FF).

12.2.11 Hex Lower Bounds

There is one display column for each byte of the lower bound of the serial number in hex.

• Up Arrow Click - Increases the lower bound by one with a maximum of the current serial

number byte value.

• Down Arrow Click - Decreases the lower bound by one with a minimum of 00 Hex.

• Click into the edit Box to enter any number within range (from the Serial number value to a

minimum of 00 Hex).

12.2.12 Binary, Numeric, Constant, Alpha Upper, Alpha Lower, and Printable

Checkboxes at the bottom will select properties to set for each serial number byte. Selections will

be highlighted in yellow. The buttons below may be used to set the boundary type for the selected

serial byte(s).

12.2.13 Byte Program Order

The user can choose whether the serial number increments from left to right, or from right to left, in

the Byte Program Order section.

12.3 Serial File Properties

Serial File properties are easy to access, as the generated serial file is stored in JSON format. This

makes it simple for the user to save and parse the information.

Note: Serial Files in JSON format are compatible with Cyclone LC firmware version 10.13 and later.

Users that wish to retrieve the original text serial number format can parse out the JSON file:

object->pesettings-> serial_number_definition -> legacyv1encoding

12.3.1 Serial File Example

An example file is provided, Example.ser, located in the Image Creation folder of your installation

directory. Below is a screen snapshot of the saved serial file as seen from a JSON viewer.

User Manual For Cyclone LC Programmers 126

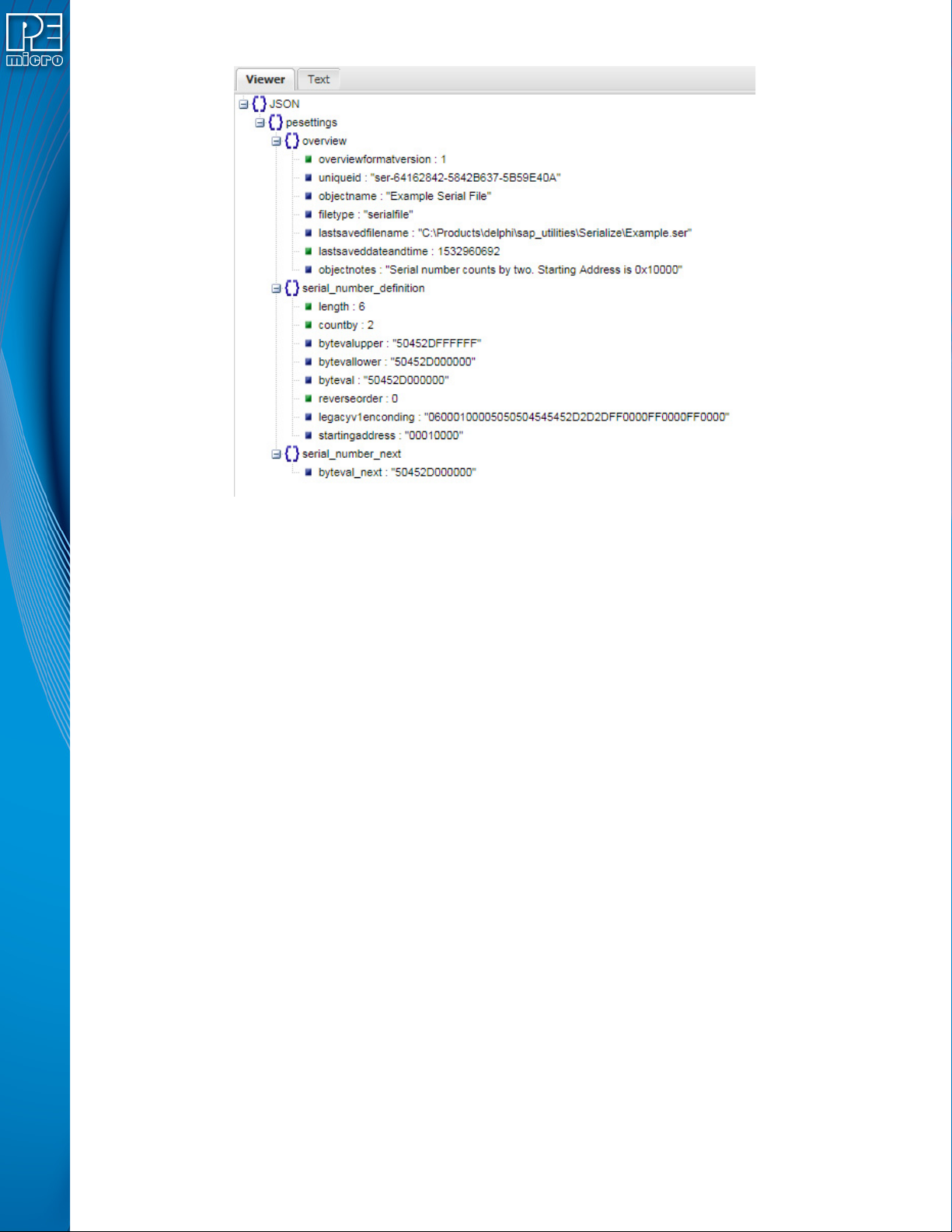

Figure 12-2: Example Serial File In JSON Viewer

12.4 Serial Number Handling

The Cyclone LC firmware implements the automatic serial number mechanism (see Section

5.2.2.3 - Serial Numbers). The same serial number files are used with the Cyclone Image

Creation Utility, and the same commands are used to specify the serial number file and initiate

serial number programming and incrementation. The serial number data structure is saved in the

SAP image. Once a “PS” command is carried out, a serial number is programmed into the target.

Only after all operations have been completed successfully does the Cyclone firmware

automatically increment the serial number and store it in the Cyclone’s flash for internal images (or

external CompactFlash for external SAP images).

The CS and PS commands are not present in the Cyclone Image Creation Utility until a valid

programming algorithm is specified.

To complement the Cyclone’s usage in production environments, the Cyclone supports multiple

serial number structures for each programming algorithm block. Each SAP image may contain

multiple programming algorithms for every memory module it needs to program, and each

programming algorithm block may contain multiple serial number structures. The SAP image

sequence below illustrates this briefly:

CM algorithm_file_1

SS object_code_1

CS serial_file1.ser

CS serial_file2.ser
