User Manual For Cyclone LC Programmers 16
These settings can be made using the corresponding areas of the Cyclone Image Creation Utility.
Step 6. Save SAP image to Cyclone
The user should then save the SAP image onto the Cyclone by clicking the button to save to “Cyclone
Only” or “Cyclone & Disk.” The image will be automatically selected as the current SAP image on the
Cyclone.
2.3.1 Advanced Features
Cyclone programmers can take advantage of several advanced features that are beyond the scope of
this Getting Started guide, such as RSA/AES encrypted programming images, programming
restrictions on images (see Section 6.1.8 - ProCryption Security License Features), and use of a
barcode scanner to launch programming (see CHAPTER 12 - USING A BARCODE SCANNER TO
SELECT AN IMAGE & INITIATE PROGRAMMING). CYCLONE FX programmers include all of these
features, and CYCLONE programmers can use many of these features with the appropriate activation
license.
2.4 Launching Cyclone Programming
There are three ways to launch programming.
1. Cyclone Start Button Press - The user simply presses the Start button located on top of
the Cyclone programmer.
2. Cyclone Control Console (command-line utility) - The user writes a script that specifies
parameters and initiates programming using the command line. More information is avail-
User Manual For Cyclone LC Programmers 17
able in the Cyclone’s User manual or at: http://www.pemicro.com/blog/
index.cfm?post_id=142
3. SDK - The SDK is a software library that is used in conjunction with the user’s own code.
The user writes a customer application that uses this library of functions to launch pro-
gramming. More information is available in the Cyclone’s User Manual, or at: http://
www.pemicro.com/blog/index.cfm?post_id=139
The “Success” or “Error” LED will illuminate to let the user know the result of programming.
Note: If programming is unsuccessful when using this quick start procedure, the user may instead wish
to use the included PROG software for their target device. The PROG software allows the user to
manually walk through the programming procedure step by step, which may help determine which
part of setup or programming function is causing difficulty.
User Manual For Cyclone LC Programmers 18
3 CYCLONE LC HARDWARE
The following is an overview of the features and interfaces of Cyclone LC programmers. Many of
these interfaces are labeled on the underside of the plastic case.

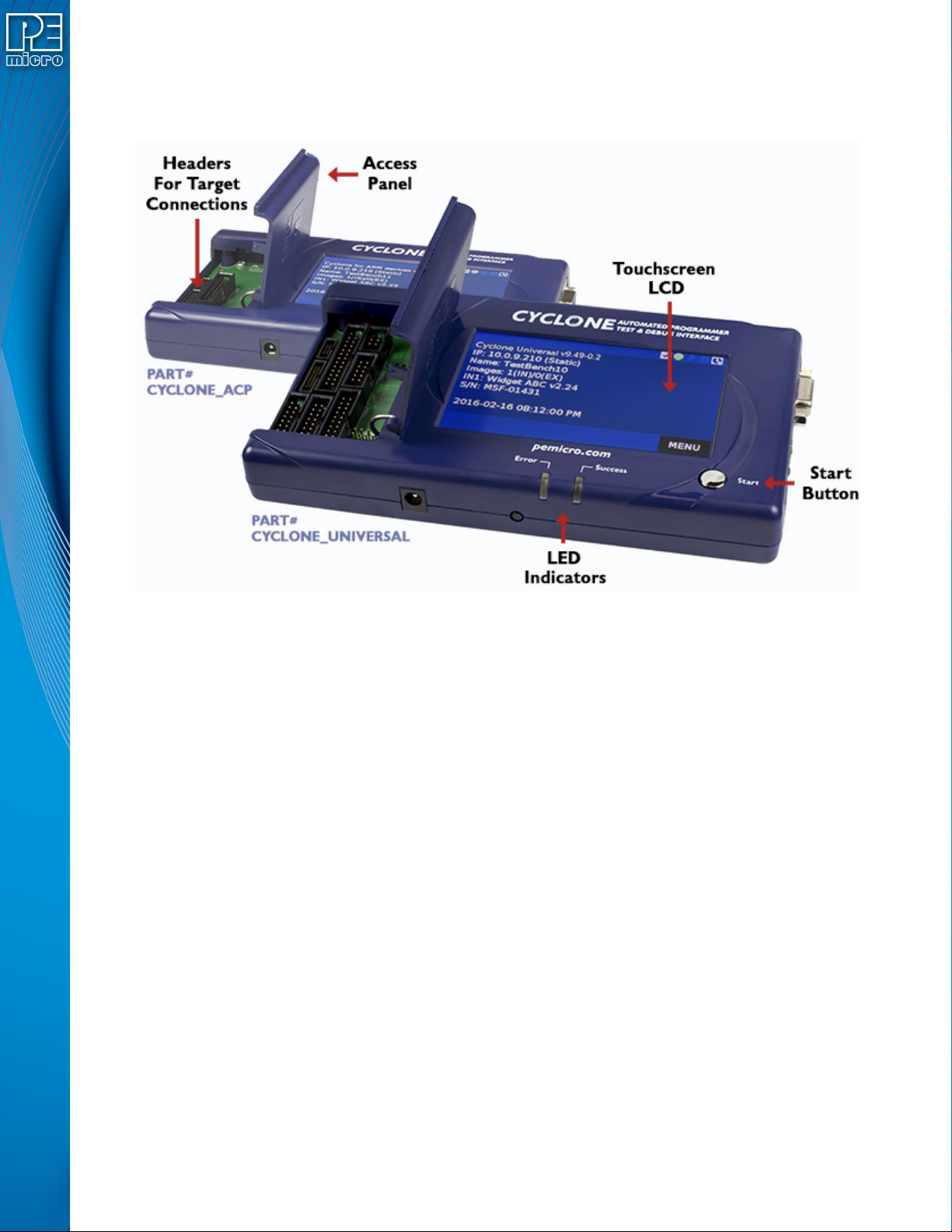

Figure 3-1: Cyclone LC Top View
3.1 Touchscreen LCD
The LCD Touchscreen displays information about the Cyclone’s configuration and the
programming process, and also allows the user to navigate the Cyclone’s menus. The location of
the Touchscreen LCD is shown in Figure 3-1.
3.2 LED Indicators
The LED indicators for Error or Success will illuminate depending on the results of the
programming process and provide a clear visual indication of the results. The location of the LED
Indicators is shown in Figure 3-1.
3.3 Start Button
The Start Button can be used to begin the programming process manually, provided that the
Cyclone is properly configured. The location of the Start Button is shown in Figure 3-1.
3.4 Access Panel
The Access Panel can easily be opened to allow the user to connect/disconnect ribbon cables
from the headers, or to configure the Cyclone’s Power Jumpers to select one of the available
Power Management setups. The location of the Access Panel is shown in Figure 3-1; a layout of
the headers and jumpers beneath the Access Panel is shown in Figure 3-5.
