User Manual For Cyclone LC Programmers 131 Figure 12-7: Cyclone Control GUI: Serial Files T ab 12.6.1.2 Program SAP images With Shared Serialization The Cyclone screen in Figure 13-8 shows two SAP images stored on the Cy…
User Manual For Cyclone LC Programmers 130
Figure 12-5: Cyclone Menu Selection
It is possible to Decrease or Increase the Next Serial by -10, -1, +1, +10. This is often done to
address issues in the production process, such as during initial setup.
Figure 12-6: Increase or Decrease Serial Number
Note that the Cyclone Control GUI has the ability to show all the Serial Files stored on the Cyclone.
This is done by opening a Cyclone, and then navigating to the Serial Files Tab, as shown in Figure
13-7. The Serial File tab has a Delete Button at the bottom which will remove the selected serial
file from view and reset the tracking of the serial number to its original state. This does not actually
delete the serial file. Once any programming is initiated using this ‘deleted’ serial file, the serial file
will reappear back in the list and program using the original serial number.
User Manual For Cyclone LC Programmers 131
Figure 12-7: Cyclone Control GUI: Serial Files Tab
12.6.1.2 Program SAP images With Shared Serialization
The Cyclone screen in Figure 13-8 shows two SAP images stored on the Cyclone: The first is
‘Waynes SAP Image Serialx2’ and the second is ‘Garths SAP Image Serialx2’. They both use the
same serial file named ‘PEserial K64 Count by 2’ which has a unique ID ser-4FD596BF-
7DDD6470-5BDAE9E7 and the next serial number to be programmed (in ASCII) is PE-002. If we
select Waynes SAP image we can see this current PE-002.
Figure 12-8: View Current Serial Number for "Wayne's SAP Image"
Once programmed is initiated, PE-002 is programmed into memory and the screen shows the next
serial number to be programmed is which is PE-004.
User Manual For Cyclone LC Programmers 132

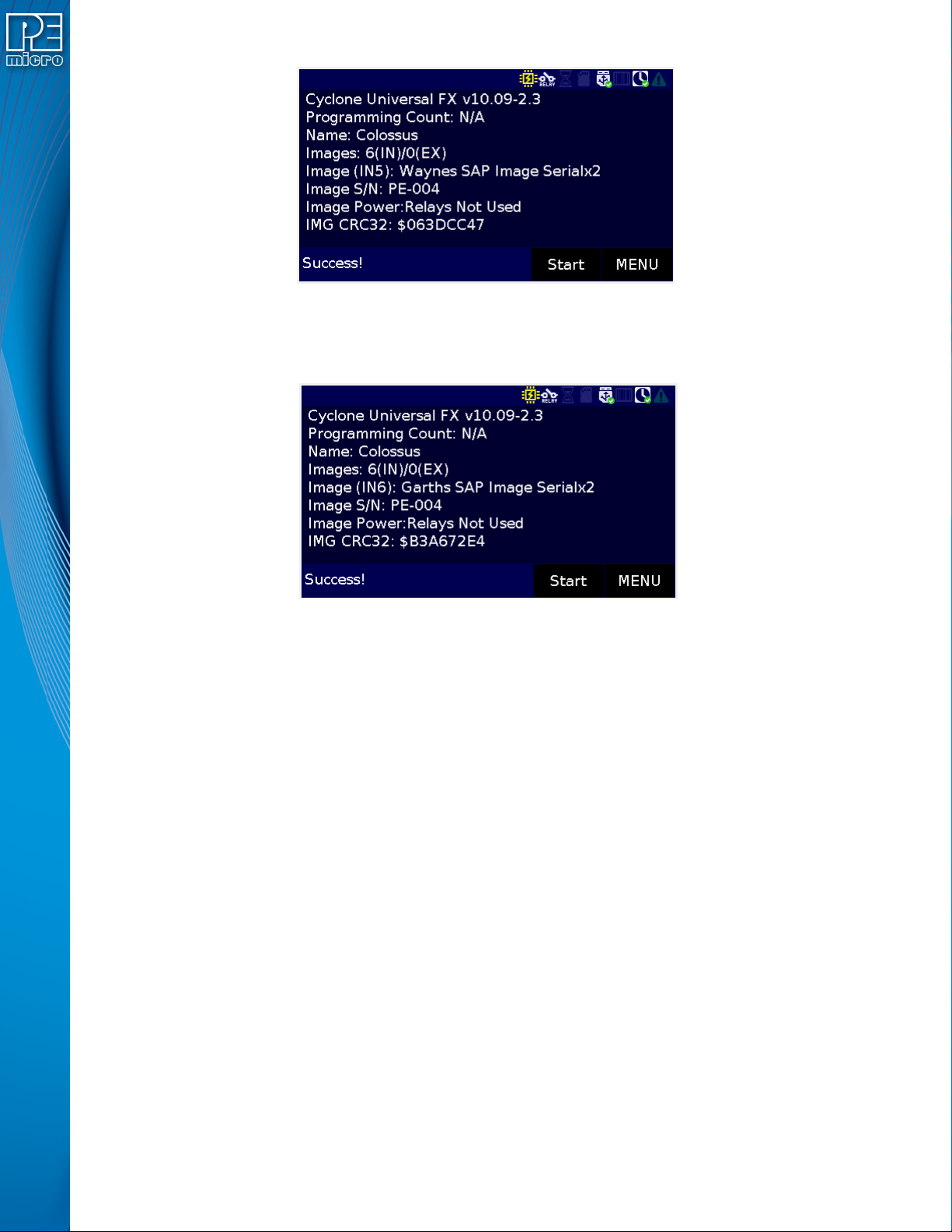

Figure 12-9: Serial Number Incremented for "Wayne's SAP Image"
If the Garth’s SAP Image is now selected on the Cyclone, it will show the next serial number to be
programmed is PE-004 because it tracks the same serial number.
Figure 12-10: Serial Number Also Incremented for "Garth's SAP Image"
