User Manual For Cyclone LC Programmers 132 Figure 12-9: Serial Number Incremented for "W ayne's SAP Image" If the Garth’s SAP Image is now selected on the Cyclone, it will show the next serial number to be…
User Manual For Cyclone LC Programmers 131
Figure 12-7: Cyclone Control GUI: Serial Files Tab
12.6.1.2 Program SAP images With Shared Serialization
The Cyclone screen in Figure 13-8 shows two SAP images stored on the Cyclone: The first is
‘Waynes SAP Image Serialx2’ and the second is ‘Garths SAP Image Serialx2’. They both use the
same serial file named ‘PEserial K64 Count by 2’ which has a unique ID ser-4FD596BF-
7DDD6470-5BDAE9E7 and the next serial number to be programmed (in ASCII) is PE-002. If we
select Waynes SAP image we can see this current PE-002.
Figure 12-8: View Current Serial Number for "Wayne's SAP Image"
Once programmed is initiated, PE-002 is programmed into memory and the screen shows the next
serial number to be programmed is which is PE-004.
User Manual For Cyclone LC Programmers 132
Figure 12-9: Serial Number Incremented for "Wayne's SAP Image"
If the Garth’s SAP Image is now selected on the Cyclone, it will show the next serial number to be
programmed is PE-004 because it tracks the same serial number.
Figure 12-10: Serial Number Also Incremented for "Garth's SAP Image"
User Manual For Cyclone LC Programmers 133
13 CYCLONE LICENSE INSTALLATION
PEmicro’s current-generation Cyclone LC programmers can have optional licenses installed into
them: the SDHC Port Activation License, the ProCryption Security Activation License, and the
Cyclone Control Suite Advanced Features License. Once a license is installed into the Cyclone, it
will be available to the Cyclone even after it is reset and/or powered down. Having a license
installed in the Cyclone is often advantageous since it moves with the Cyclone (if the Cyclone is
moved from PC to PC).
13.1 How to Install Your License
Follow the steps below to install a license on your Cyclone LC programmer:
1. Make sure the Cyclone is powered and connected to the PC or PC’s network (via USB,
Ethernet, or Serial).
2. Open the Cyclone Control GUI and connect to the appropriate Cyclone.
3. Click the “License” tab in the Cyclone Control GUI.

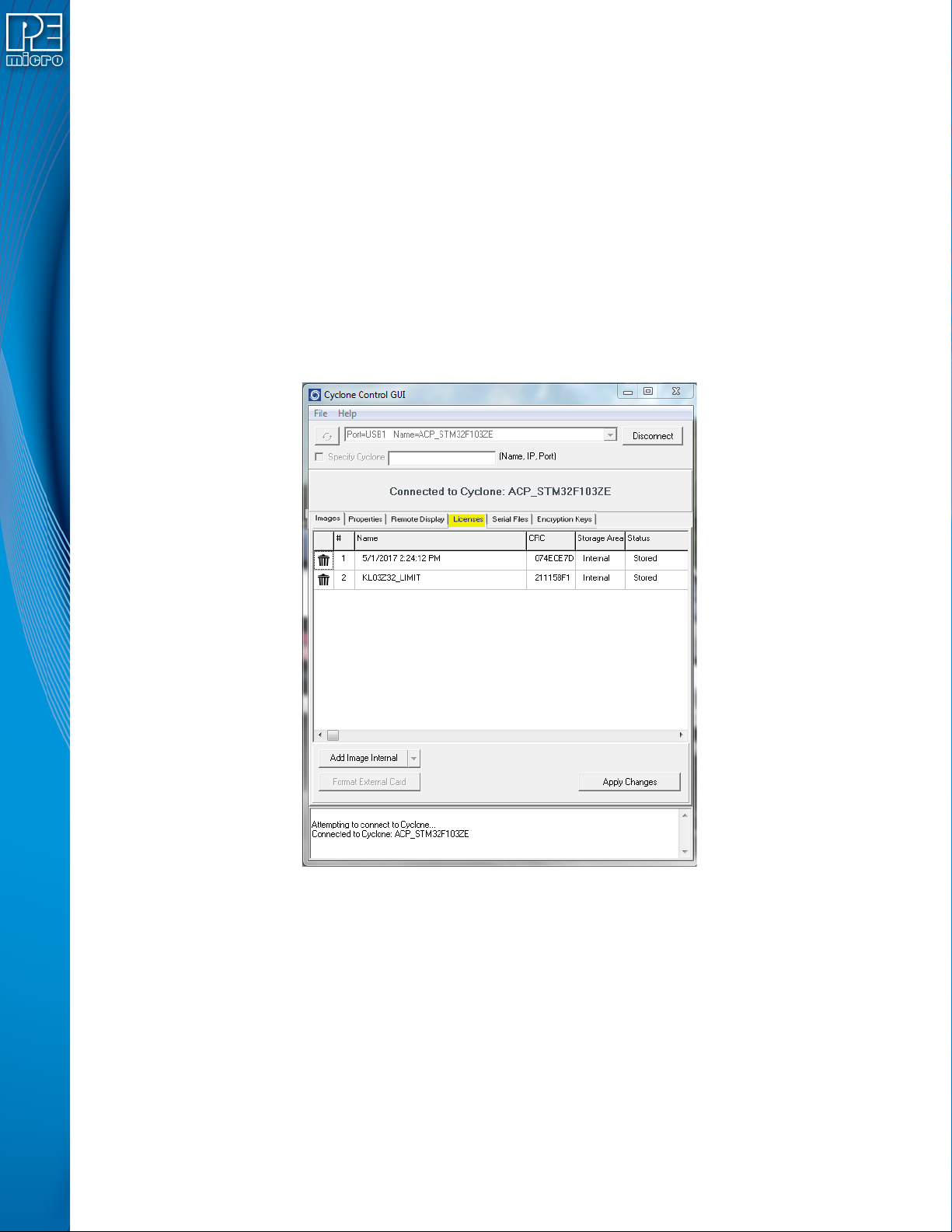

Figure 13-1: Cyclone Control GUI: License Tab
