5.2.3.5.4 Configure Home Screen
This menu allows you to choose what information to display on Lines 2-8 of the home screen.
Available elements to display consist if information such as: the current IP address, the Cyclone
name, the number of images, etc. In this way the user can customize the display to provide the
information that they find most useful. There is a separate button for each of Lines 2-8. Tapping on
the button for a specific Line brings up a list of elements that you can choose to display on that
Line of the home screen. If the list of elements is greater than one page, tap the More button to
view the rest of the available elements. Tap the element that you want to display on that line and
then tap Done to save your selection.
5.2.3.6 Configure Storage
This menu selection allows the user to format the Cyclone’s internal memory. This menu will also
allow the user to format an SD card located in the Cyclone’s memory expansion slot if the SDHC
Port Activation License is installed. Select “Format Internal Storage” or “Format External SD Card”.
The user will be prompted to ensure that they wish to format the corresponding memory. Tap “Yes”
to format, or “Cancel” to go back to the previous menu option without formatting the memory.
5.2.3.7 Enable/Disable Start Button
This menu option gives the user the option to disable the physical Start Button. Programming can
then be initiated via the Cyclone Control Suite, or by a digital start button on the Cyclone screen if
you have the AUX button set to the "Launch Image Programming" option.
The physical Start Button can always be re-enabled via this same menu toggle.
5.2.4 Status
This menu contains a selection that allow the user to view status information regarding various
aspects of the Cyclone. This menu will likely be expanded with future updates.
5.2.4.1 Show Current IP Settings
Allows the user to view the Cyclone’s Current IP Mode, IP Address, Mask, Gateway, and MAC
Address.
User Manual For Cyclone LC Programmers 48
6 CREATING AND MANAGING PROGRAMMING IMAGES
The Cyclone Image Creation Utility is used to create programming images which may be loaded
into the Cyclone. The user creates programming images based on data sets to be programmed
and programming instructions which are all self contained. The next step is to download these
programming images to the Cyclone via the GUI, Console, or SDK. Programming can then be
launched either manually via the button, or automatically via the Console.exe or SDK. Learn about
how to download and launch programming images in CHAPTER 8 - CYCLONE PROGRAMMER
AUTOMATED CONTROL (CYCLONE CONTROL SUITE).
Cyclone LC programmers, or Cyclone LC programmers with the ProCryption Security Activation
License, can also use the The Cyclone Image Creation Utility to encrypt programming images,
such that only Cyclones with a specific key can decrypt and program these images. Instructions on
how to encrypt using the Cyclone Image Creation Utility are found in Section 6.1.8.1 - SAP Image
Encryption. A more in-depth description of the encryption process is available in CHAPTER 11 -
SAP IMAGE ENCRYPTION.
Note: If the user wishes to use a programming image created with an earlier generation Cyclone (such
as the Cyclone PRO or MAX, or the Cyclone for ARM devices Rev. A/B) they should first convert
the image using the conversion utility described in CHAPTER 14 - TROUBLESHOOTING.
6.1 Cyclone Image Creation Utility
This section describes in detail how use the Cyclone Image Creation Utility, shown in Figure 6-1,
to configure, create, and save a SAP image that will be used for stand-alone programming with the
Cyclone LC. The Cyclone LC does not require a target to be connected when it is being
configured. However, the Cyclone must be powered on and one of the communications interfaces
must be connected to the Cyclone if an image is to be stored on it.
User Manual For Cyclone LC Programmers 49

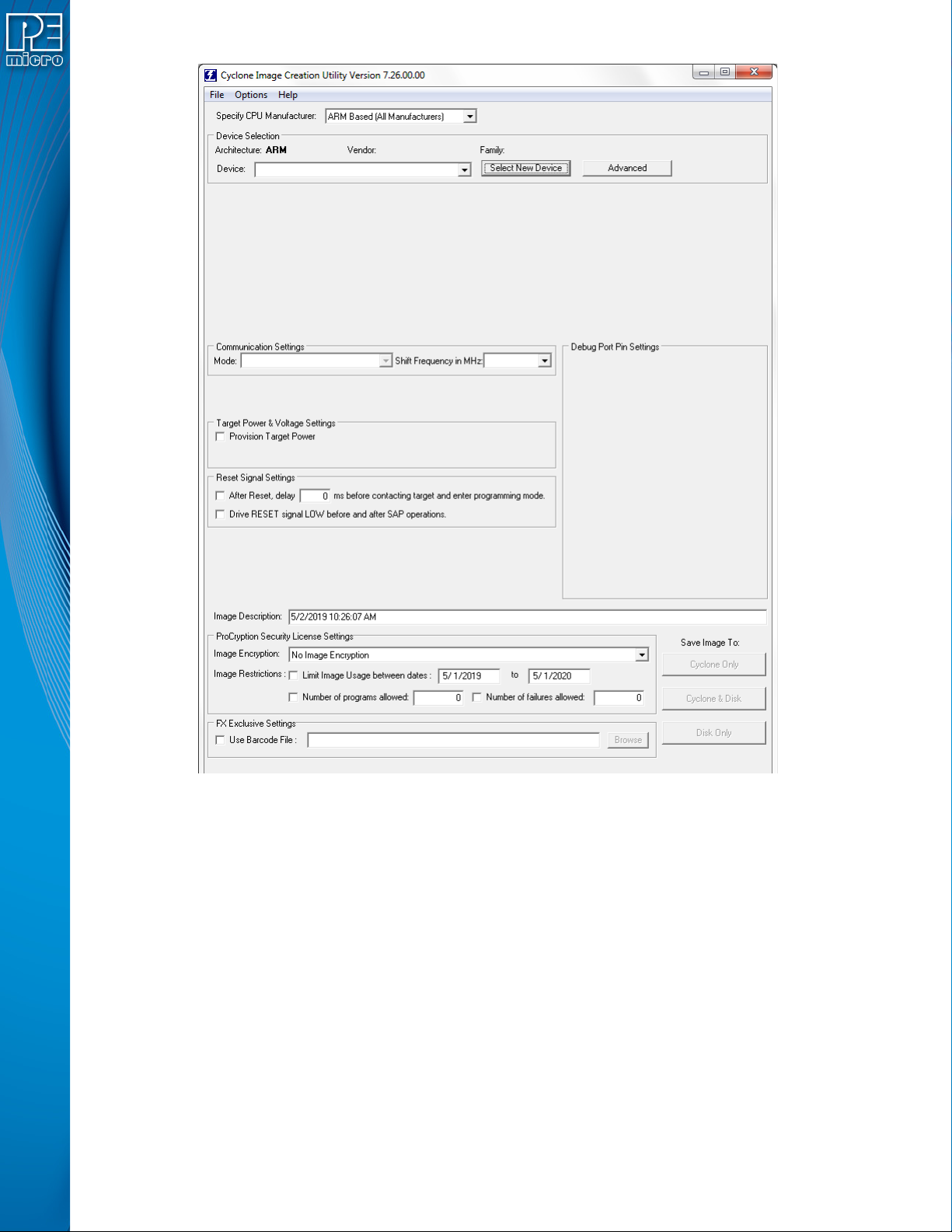

Figure 6-1: Cyclone Image Creation Utility
6.1.1 Specify CPU Manufacturer
The user should select the manufacturer of their target device from the drop-down list.
Cyclone LC programmers support ARM Cortex devices from several manufacturers, including
NXP’s Kinetis and LPC devices. For a complete index of PEmicro-supported ARM Cortex devices,
please view pemicro.com/arm.
If you are using PEmicro Part# CYCLONE-LC-UNIV, this Cyclone also supports these 8-16/32-bit
architectures: NXP’s S32, ColdFire® V2/V3/V4, ColdFire+/V1, MPC5xx/8xx, MPC55xx-57xx,
DSC, ARM® Nexus (MAC7xxx), S12Z, HC(S)12(X), HCS08, HC08, and RS08 devices, as well as
STMicroelectronics’ SPC5 & STM8 (w/ adapter) devices.
Figure 6-2 shows the Specify CPU Manufacturer drop-down box. The options are:
• ARM-based (All Manufacturers)
• NXP
• STMicroelectronics
