User Manual For Cyclone LC Programmers 132
Figure 12-9: Serial Number Incremented for "Wayne's SAP Image"
If the Garth’s SAP Image is now selected on the Cyclone, it will show the next serial number to be
programmed is PE-004 because it tracks the same serial number.
Figure 12-10: Serial Number Also Incremented for "Garth's SAP Image"
User Manual For Cyclone LC Programmers 133
13 CYCLONE LICENSE INSTALLATION
PEmicro’s current-generation Cyclone LC programmers can have optional licenses installed into
them: the SDHC Port Activation License, the ProCryption Security Activation License, and the
Cyclone Control Suite Advanced Features License. Once a license is installed into the Cyclone, it
will be available to the Cyclone even after it is reset and/or powered down. Having a license
installed in the Cyclone is often advantageous since it moves with the Cyclone (if the Cyclone is
moved from PC to PC).
13.1 How to Install Your License
Follow the steps below to install a license on your Cyclone LC programmer:
1. Make sure the Cyclone is powered and connected to the PC or PC’s network (via USB,
Ethernet, or Serial).
2. Open the Cyclone Control GUI and connect to the appropriate Cyclone.
3. Click the “License” tab in the Cyclone Control GUI.
Figure 13-1: Cyclone Control GUI: License Tab
User Manual For Cyclone LC Programmers 134
4. Click the “Add New License” button.

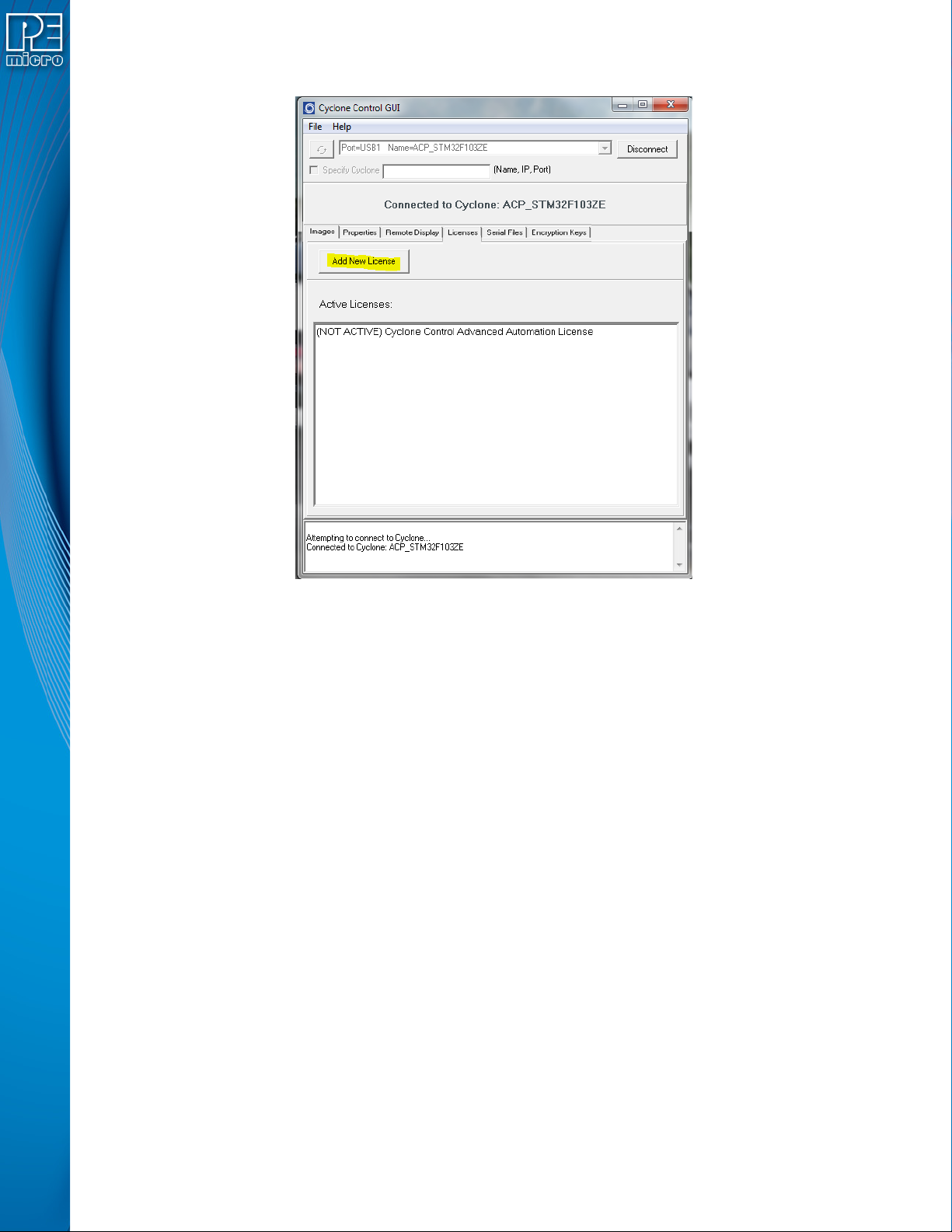

Figure 13-2: Add New License Button
