5 Materials 5-10 Table 2 Application Chart for Standard Nozzles * 1 ： P050 ⇒ for 01005(0402)R and 01005(0402)C only * 2 ： P051 ⇒ for 0201(0603) ・ P061 ⇒ for 0201(0603) to 0402(1005) * 3 ： P052 ⇒ for 0402(1005) to 0603(16…
5 Materials
5-9
Nozzle Application Chart
It is suggested that the most recommended (◎) nozzle should be used in case more than one nozzle are
applicable. (Table 1 and 2)
Recommended Priority: ◎ ⇒ ○ ⇒ △

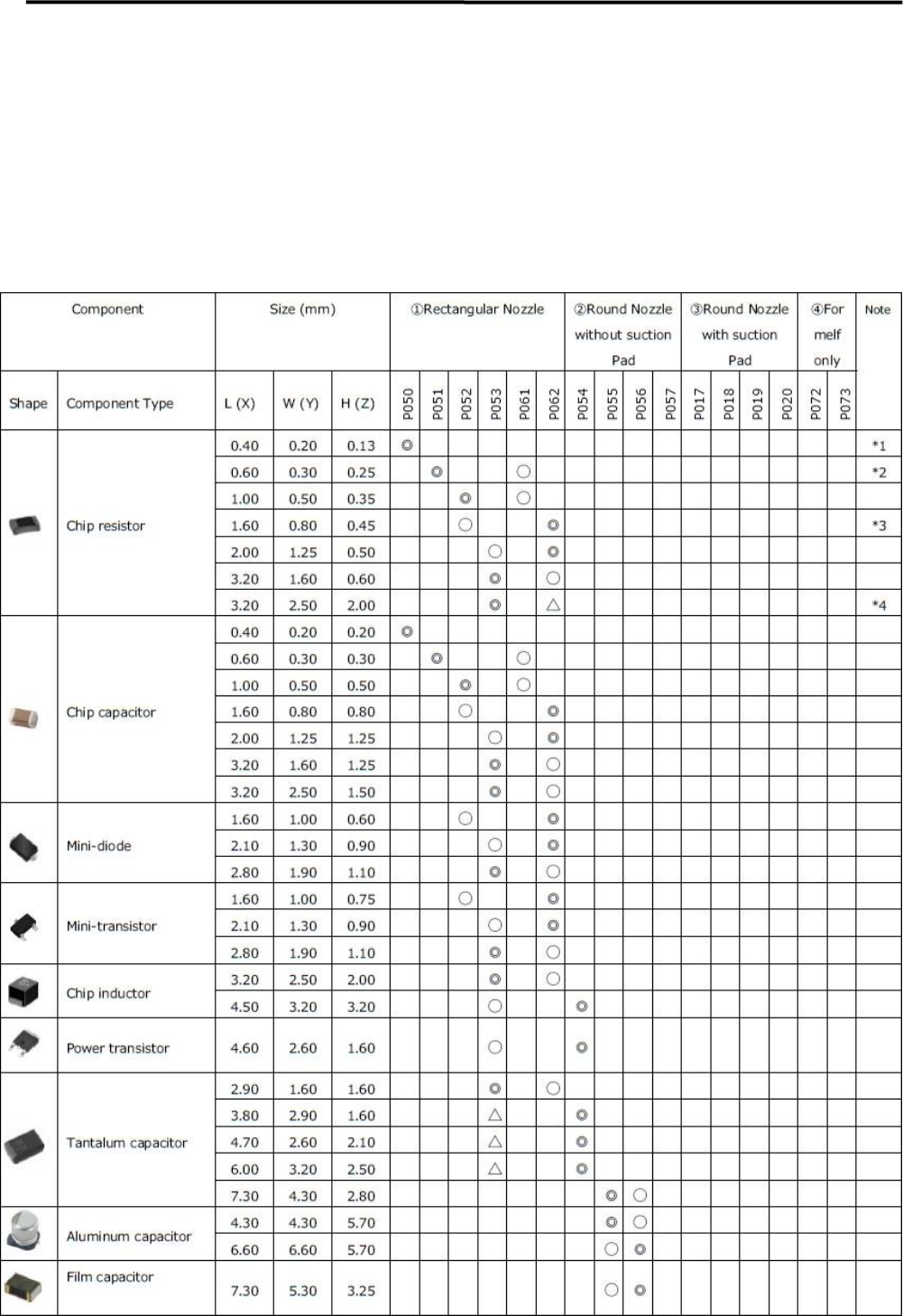

Table 1 Application Chart for Standard Nozzles
5 Materials
5-10

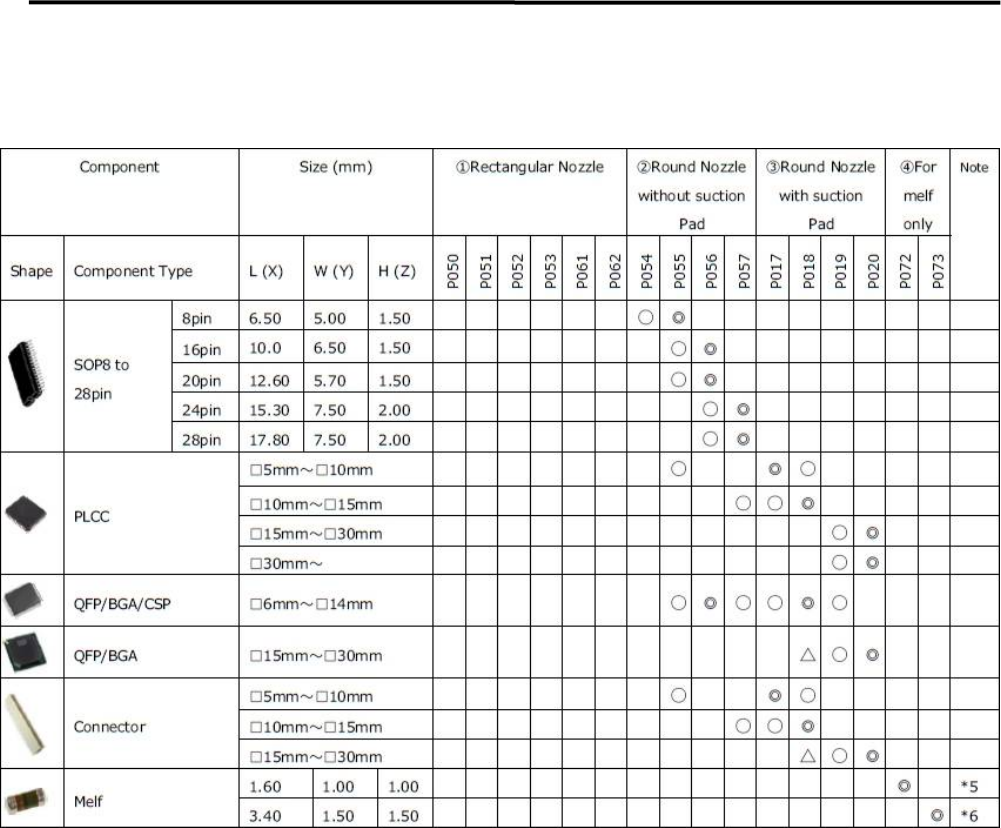

Table 2 Application Chart for Standard Nozzles
*
1 ： P050⇒for 01005(0402)R and 01005(0402)C only
*
2 ： P051⇒for 0201(0603) ・P061⇒for 0201(0603) to 0402(1005)
*
3 ： P052⇒for 0402(1005) to 0603(1608) ・P062⇒for 0603(1608) to 1206(3216)
*
4 ： P053⇒for 0805(2012) to 1210(3225)
*
5 ： P072⇒for φ1.0mm to φ1.1mm MELF
*
6 ： P073⇒for φ1.2mm to φ2.2mm MELF
6．Additional Function
1
6
Additional Function
Dispense Head
DOT STATION
CTF40,CFB-36/E
