3 Mechanical Section 3-24 ■ Lubrication Poin ts for Z-axis Guide / R-axis Spline Sh aft ■ Application of grease on a Nozzle Holder ACTION: ① Use a dry cotton swab to clean the inside of the nozzle hol der and remove old …

3 Mechanical Section

3-23

NOTE: When too much grease is applied, excessive grease may scatter around while machine is running. Apply

proper amount of grease so that thin coat of grease is made over the surface of the ball screws.

NOTE: If grease is applied on the ball screw surface (out of ditches), the grease will be coming out and it will not

caught by the ball bearing inside. That may cause insufficient lubrication condition. Therefore, apply

grease onto the ditches of the ball screw.

■ Lubrication Points for Linear Guide

ACTION:

① Use a nonwoven cloth and wipe off the dirty grease or adhered grease on the linear guide. Do not use

a cotton swab or woven cloth, which may generate dust or waste threads.

② Press the tip of the nozzle of the grease gun against the grease nipple and insert grease into the linear

guide nut.

③ On the software, go to Manual > Warm Up, and conduct “Aging” at the speed of 20% for more than 10

minutes. In order to set the speed, click the “Setting” tab on the Warm-up & Self-diagnistics window

and slide the scroll bar under the “Axis Speed”.

④ Use a nonwoven cloth and wipe off the pushed-out dirty grease from the ball bearing. Apply new

grease into the linear guide nut once again afterwards.

⑤ Use a nonwoven cloth and remove excessive grease gathered on the linear guide nut or both ends of

the linear guide, and conduct “Aging” by increasing Axis Speed from low speed to high speed

gradually.

⑥ Both front and rear end of the linear guide are out of the movable range of the linear guide nut and

grease are not spread to there even by moving axis all the way to its ±software limits. Apply grease

to front and rear end of the linear guide with a nonwoven cloth for rust prevention.

NOTE: If a cotton-swab or a woven cloth is used to wipe off the dirty grease, waste threads of cloth may be caught

in the ball screw. Use a nonwoven cloth.

NOTE: Use proper grease for lubrication, specified as our standard. (See the “Specified Lubricants” list at the end

of this chapter.)

NOTE: Remove the excess grease gathered on the nut or both ends of the linear guide by wiping it off with a

nonwoven cloth to avoid grease scattering.

3 Mechanical Section

3-24

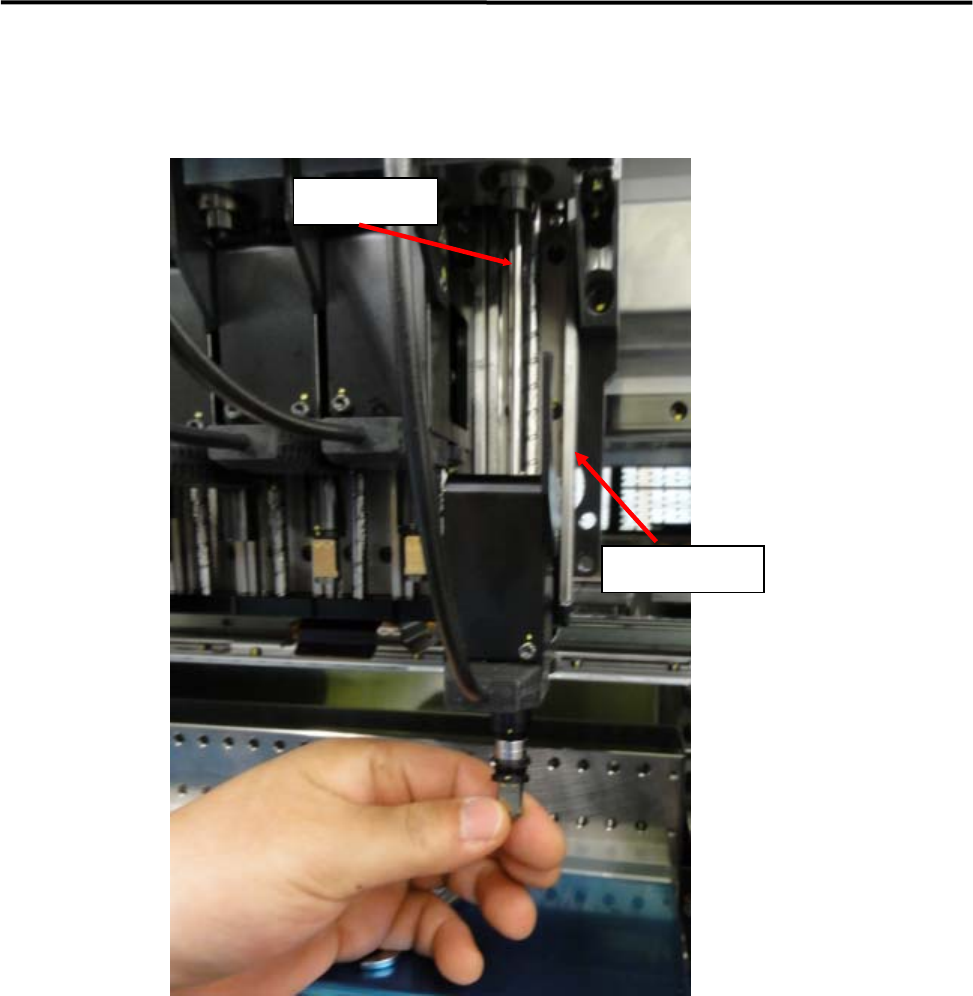

■ Lubrication Points for Z-axis Guide / R-axis Spline Shaft

■ Application of grease on a Nozzle Holder

ACTION:

① Use a dry cotton swab to clean the inside of the nozzle holder and remove old grease and dust.

② Use the head vacuum breaker to blow out the dust and fibers from a cotton swab.

NOTE: Go to Main menu > Manual > Actuator > On/Off tab and select “Head Vacuum Breaker, and then Turn on

the vacuum breaker on a target head.

③ Apply silicon grease evenly on the new cotton swab and rub the inside of the Nozzle Holder gently

and evenly.

④ After grease is applied to the nozzle holder , insert a nozzle and confirm that the nozzle escaping

works smoothly.

Ball screw

Linear guide

3 Mechanical Section

3-25

Resetting Maintenance Notice

Once maintenance is completed, go to;

Manual > Maintenance > Maintenance Notice

Add a check mark to each of the mechanical units which maintenance has been

completed, and click the [Reset] button.

Next maintenance date can be updated.
