6 ． Additional Function 24 CTF-40 “C” and “D” Section Clean the linear guides and apply grease through the grease nipples. C D Front View (Cover Removed) Linear Guide Right Left Linear Guid e Grease Nipple
6．Additional Function
23
CTF40 and CFB-36/E Periodical Maintenance
CTF-40
“A” Section
Remove dust and dirt from the rails with alcohol. No need to apply grease.
“B” Section
Clean the metal rail, rollers, and moving arm and apply grease to them.
Grease: AFA Grease
A
B
TOP
6．Additional Function
24

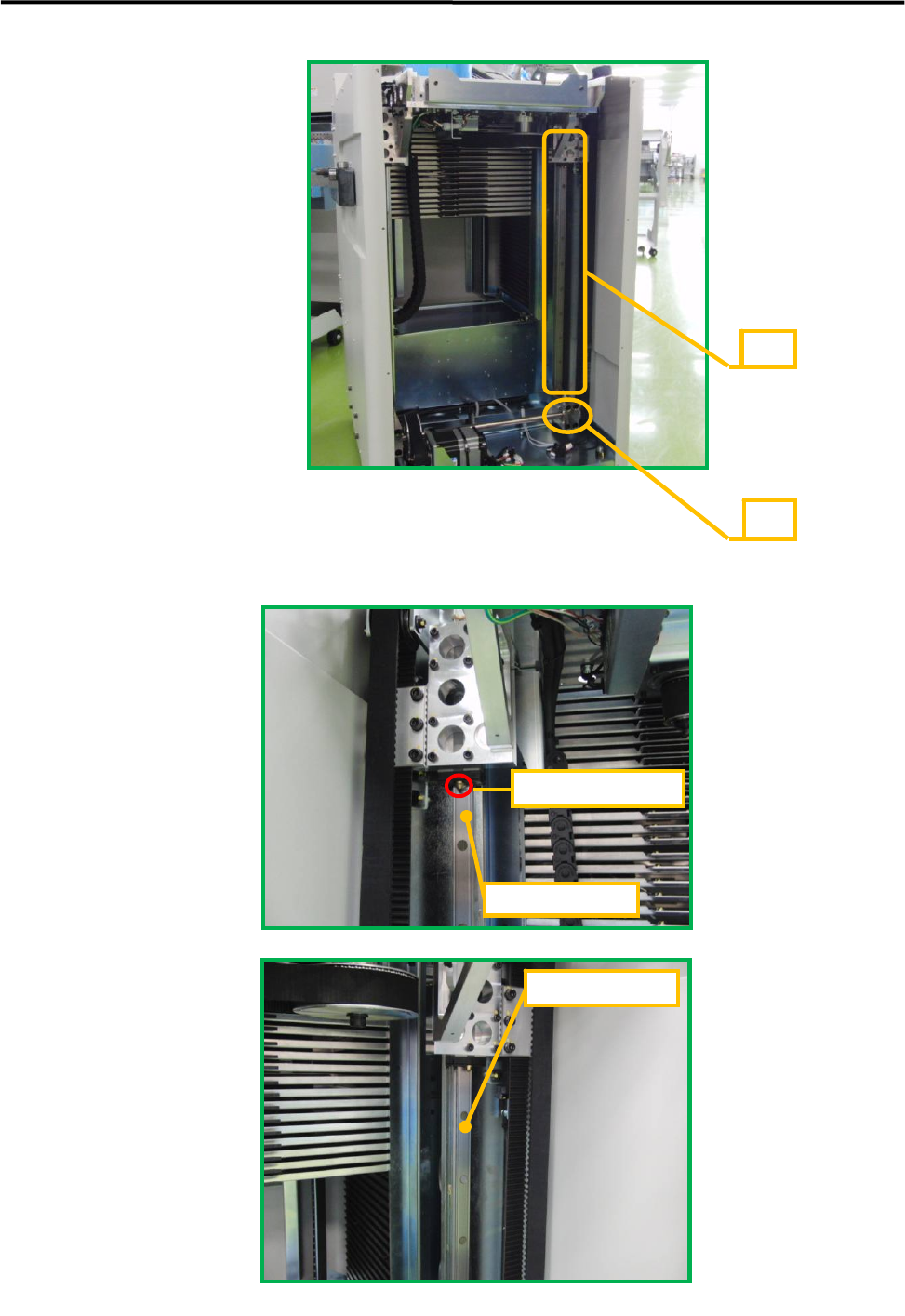

CTF-40
“C” and “D” Section
Clean the linear guides and apply grease through the grease nipples.
C
D
Front View (Cover Removed)
Linear Guide
Right
Left
Linear Guide
Grease Nipple
6．Additional Function
25

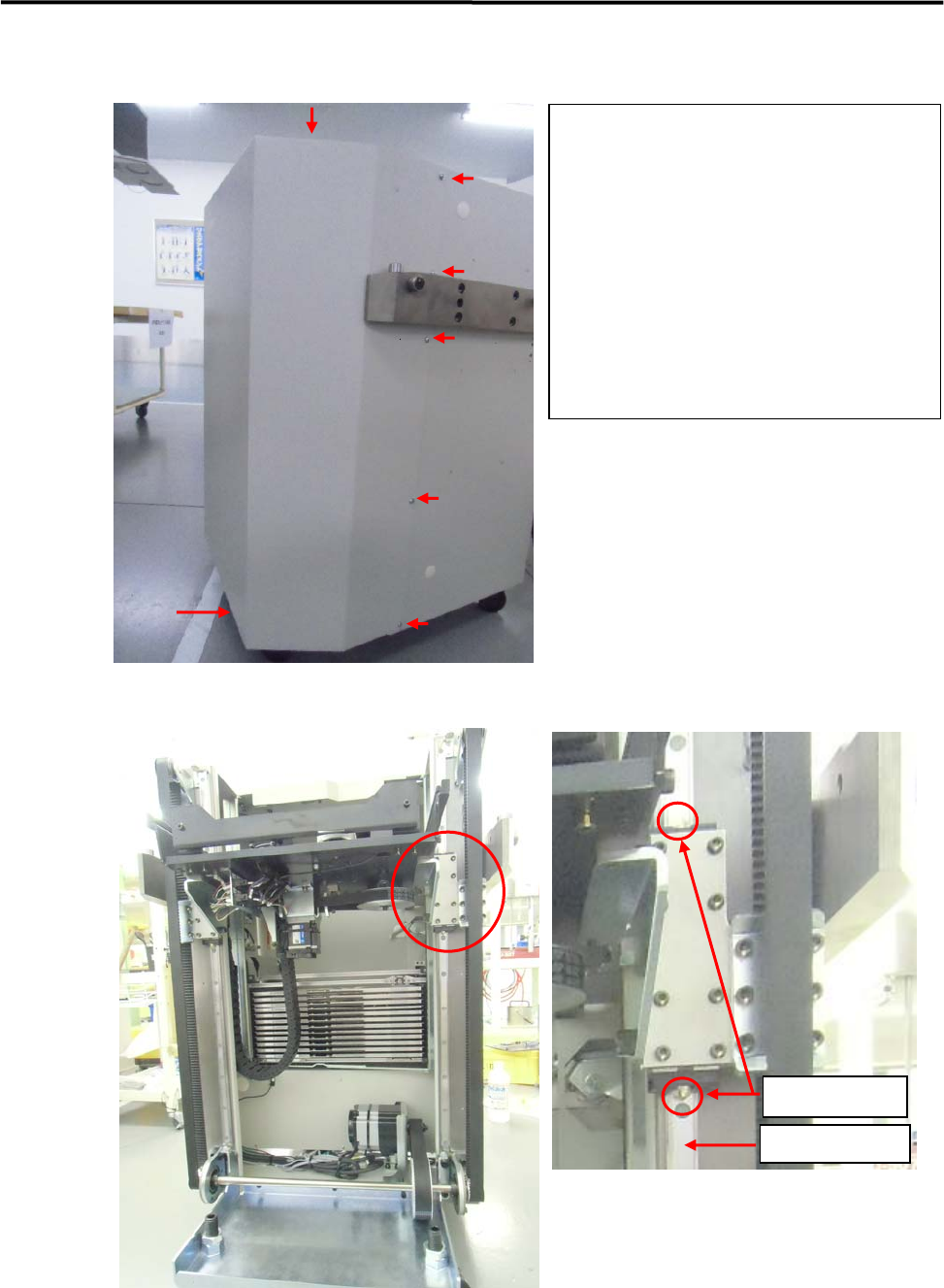

CTF-36C
Linear
Guide
Grease Nipples
Remove the cover.
・Unscrew and remove the bolts.
(see image on the left.)
Head shape of the bolt varies.
・Remove the cover.
