3 Mechanical Section

3-13

Nozzle ID Stickers

Labeling a Nozzle ID Sticker to a Nozzle

ACTION:

① Use industrial alcohol and completely remove grease, oil, and water content from the surface of

the nozzle flange where a nozzle ID sticker is to be labeled.

② Pull out the shaft of the nozzle sticker tool approx. 3mm from the ring.

③ Use tweezers and peel off the sticker from the paper.

④ Place the sticker with its adhesive side up, and then put it in the jig (make sure that the D-cut on

the sticker is aligned with that on the ring). (The sticker must be angled so that the nozzle ID

number is oriented as illustrated below.) Do not touch the adhesive surface of the sticker with

fingers.

⑤ Push the nozzle into the shaft of the nozzle ID sticker tool. Make sure that the nozzle’s notch is

aligned with the positioning slot on the ring.

⑥ While pressing the nozzle flange, push the shaft into the ring so that the sticker is affixed onto the

flange.

⑦ Check to make sure that the sticker touches the bottom of the ring.

NOTE: When the shaft is pulled out of the ring too much, it may come off. When it comes off, align the shaft’s slot

with the ring’s positioning pin and then insert the shaft into the ring slowly.

Part Name

Part No. Remark

ID SEAL TOOL, ASSY. LC1-M8903-00X Nozzle ID sticker tool

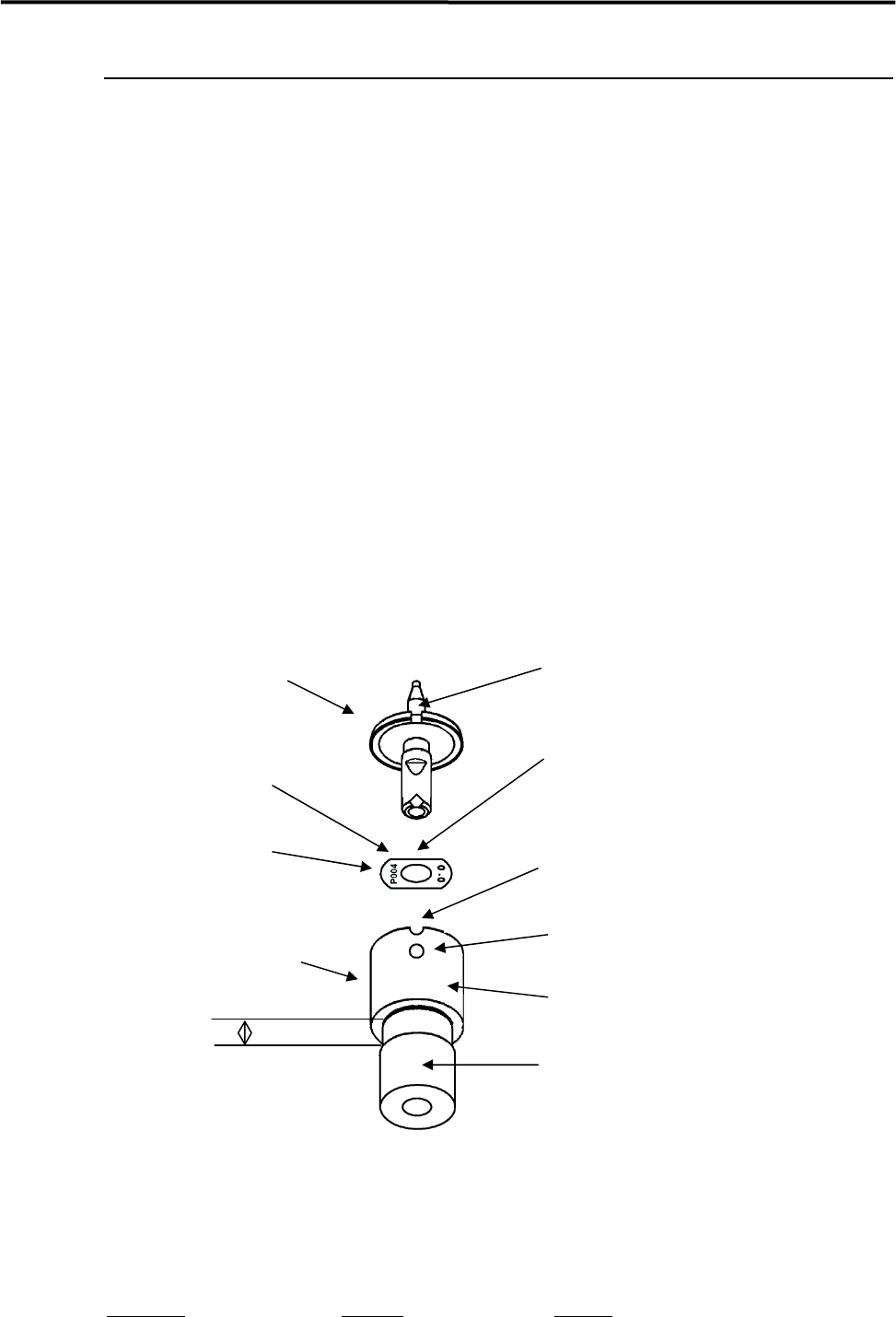

Nozzle ID sticker tool

D-cut

Shaft

Positioning pin

Ring

Positioning slot

Nozzle ID sticker

Nozzle

Notch

ID No. (P***)

3mm

3 Mechanical Section

3-14

Cleaning Nozzle ID Stickers

Dirt on nozzle ID stickers may cause vision recognition failure. Regularly clean the nozzle ID stickers.

ACTION:

① Clean the sticker with cotton swab soaked with alcohol.

② Wipe off the remaining alcohol from the sticker surface with dry cotton swab.

NOTE: Particularly the nozzle ID stickers tend to easily get dirty. When a nozzle ID sticker becomes too dirty to be

cleaned, replace it with a new one.

For the part number of the nozzle ID sticker, refer to “5. Materials”.

NOTE: The nozzle ID stickers are easily peeled off when they become wet. Be sure to dry them with cotton swab

whenever they become wet.

3 Mechanical Section

3-15

Flange Seal

Underside of the nozzle flange is covered with non-reflecting black coating, which prevents misrecognition

at vision processing, and protective seal (flange seal) which protects the coating. Long-term use of a nozzle

accompanied by ANC operation may cause scratches on the flange seal. These scratches may bring about

unwanted reflection of lights, which interfere with the image, and causes vision process errors. Follow the

procedure below and replace the flange seal when necessary.

ACTION:

① Peel off the old Flange Seal thoroughly from the underside of the nozzle flange, and clean off dust,

dirt, oil, and moisture by using industrial alcohol. Do not use a sharp-edged tool and tweezers when

peeling off the seal. Using these tools damage the non-reflecting black coating

② Slide up the ring of the Flange Seal Set Tool (Optional) and turn it clockwise.

③ Use tweezers and remove the Flange Seal from the exfoliate paper.

④ Set the Flange Seal with its adhesive side up onto the Flange Seal Set Tool. Do not touch the adhesive

side of the seal with fingers.

⑤ Check to make sure that the seal is placed evenly flat onto the inside bottom of the ring.

⑥ Insert the nozzle with its nozzle tip down into the tool.

⑦ Turn the ring counterclockwise along with pressing the nozzle onto the tool, and slide it down to

attach the nozzle flange to the flange seal.

NOTE: The flange seal comes off easily when it becomes wet. When it becomes wet, use a dry cotton-swab and

wipe off grease, oil, and water content immediately.

NOTE: There are 3 types of Flange seal. Please refer to the list below.

Flange Seal Parts Number Parts Name Supported nozzle types

LG0-M77A6-000 FLANGE SEAL 1 P005, P012, P013

LG0-M77A7-000 FLANGE SEAL 2 P031～ P034, P006, P017, P018, P019, P042

LG0-M77A8-000 FLANGE SEAL 3 P020

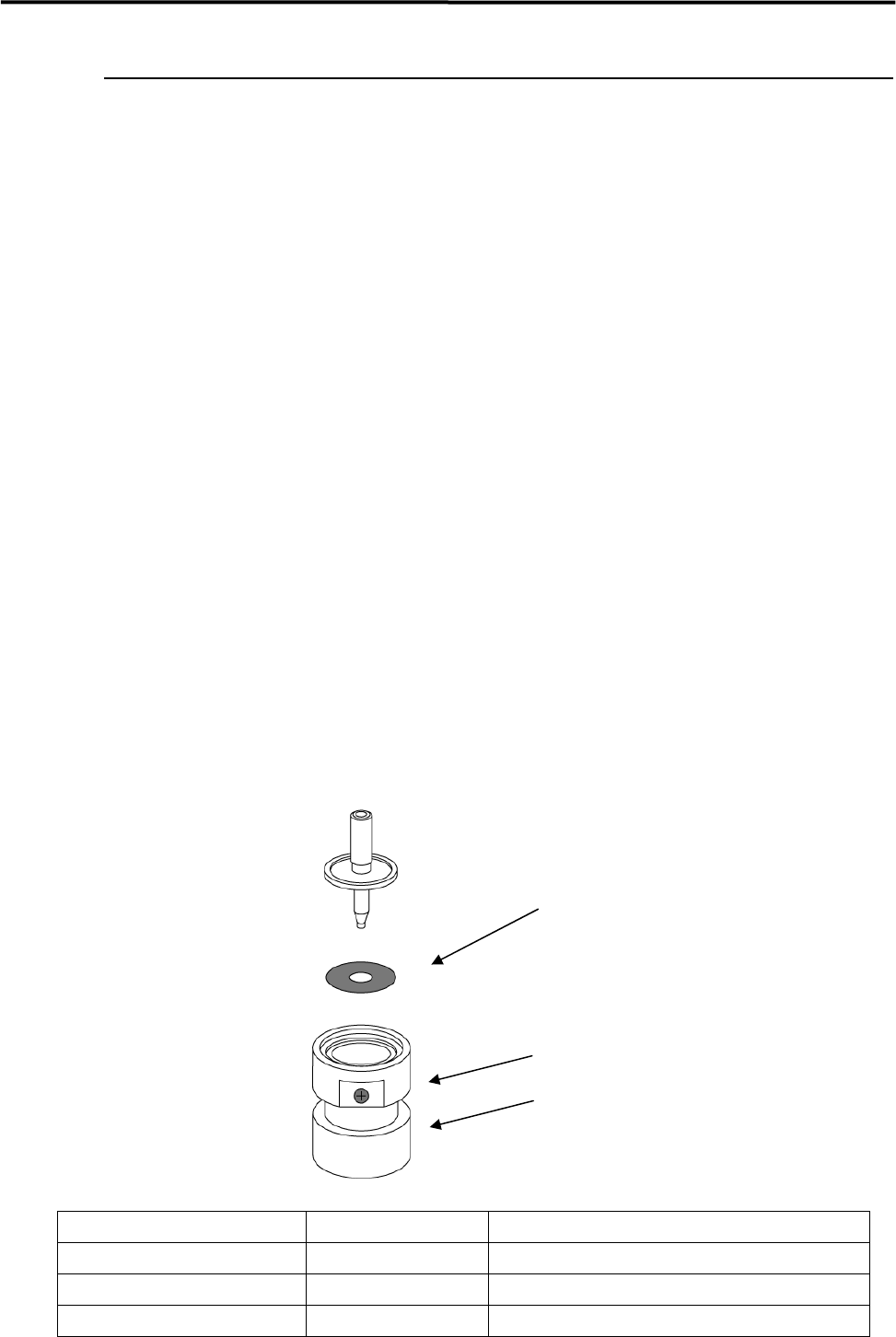

Flange Seal

Ring

Flange Seal Set Tool
