1 Installation

1-12

NOTE: The hydraulic jacks must satisfy the following requirements.

Allowable load: 1.5 tons or higher

Hook size: 100mm or more (stroke)

Part Name

Part No. Remark

PLATE,BASE LG0-M8911-00X For plates 1 and 2

Jack -Up Points

Two Positions each at machine front and rear sides

M10

M20

1 Installation

1-13

Removal of Rust Inhibiting Grease

At packing and shipping, a large amount of grease is applied on the surface of each ball-screw and linear

guides on X/Y axes in order to prevent rust. As each axis moves an excess grease is gradually removed

from their surface and a proper amount of grease remains as a lubricant.

For this reason, when these axes are moved at installation, the extra grease may be built up on ball-screw

nuts, on linear guide sliders, and both ends of each axis. If you run the mounter at high speed (production)

without wiping it away, the grease may be scattered around due to centrifugal force and vibration, and that

may stick to cameras, sensors, or a board.

Please perform a warm-up at low speed once the origin is acquired after installation, and wipe off any

excess grease as necessary.

The mounter may not function properly when grease sticks to the sensors

and the cameras.

ACTION:

① Check and remove any board and tools from inside of the mounter, and then perform origin

acquisition.

② Select Main Menu> Manual> Warm Up.

③ Select Warm-up & Self-diagnostics> Setting.

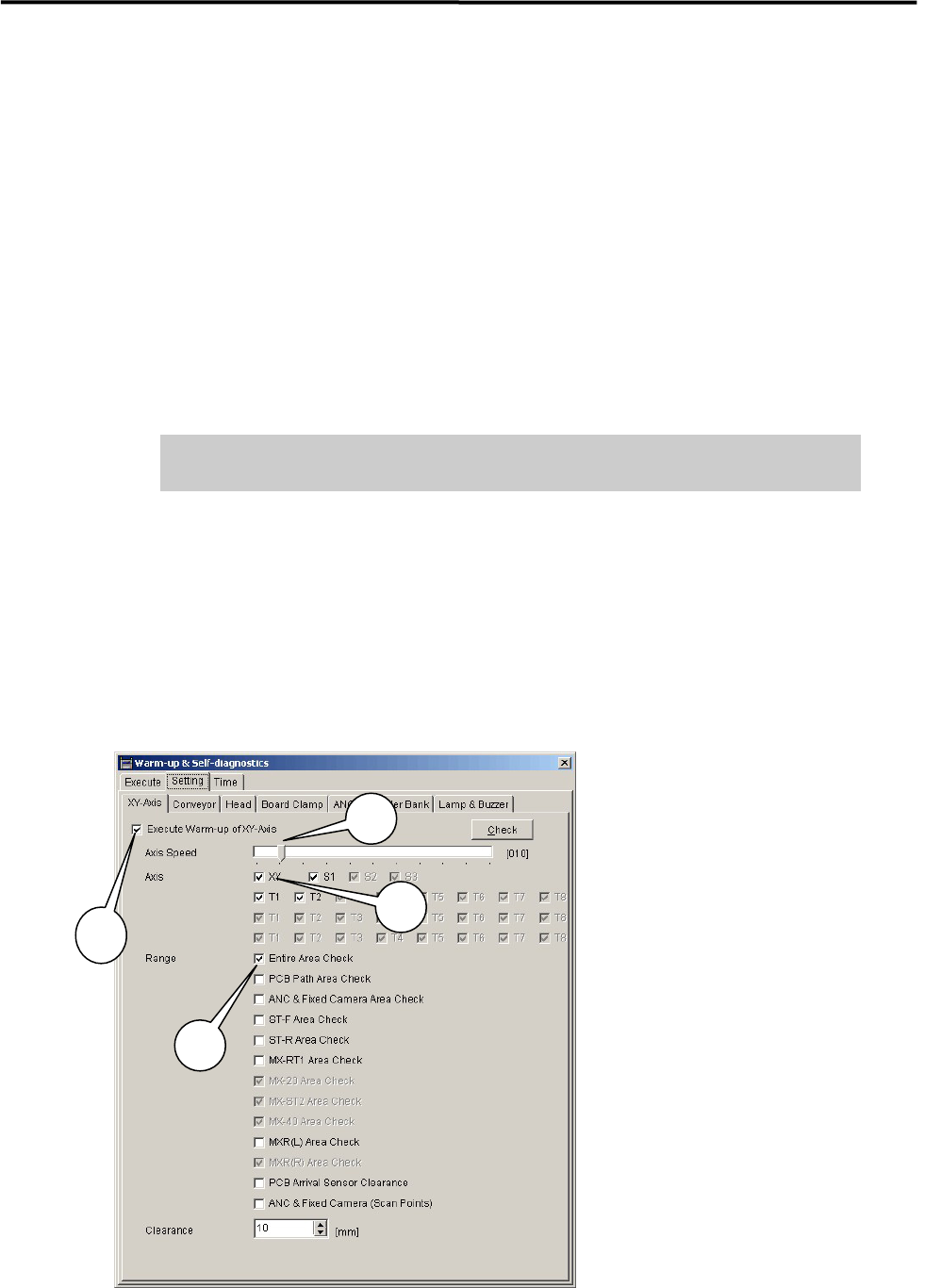

④ Select [XY-axes] and set up the parameters as follows.

1: Check “Execute Warm-up of XY-axes”.

2: Set “Axis Speed” at 10%.

3: Check “XY “.in Axis.

4: Check “Entire Area Check“in Range.

* It is not necessary to check other items.

３

１

２

４

1 Installation

1-14

⑤ Disable all the parameters in other tab fields than [XY-axes]. Remove a check mark on each

parameters in [Conveyer], [Head], [Board Clamp], [ANS], [Feeder Bank], and [Lamp & Buzzer] (tabs

may vary due to mounter’s option settings.) in order to carry out only the selected parameters in

[XY-axes].

⑥ Select [Execute] and click <Ageing>.

When [Execute] tab is selected, the <Execute> button and the<Ageing> button are found at the

bottom of the window. Clicking the <Execute> button enables to perform warm-up only a single

cycle and sufficient ageing is not carried out.

⑦ Continue ageing for 5 to 10 minutes.

After 5 to 10 minutes, click the <Stop> button to stop ageing.

⑧ Wipe off excess grease.

Use a unwoven cloth to wipe off excess grease which is built up on ball-screw nuts, on linear guide

sliders, and both ends of each axis.

NOTE: Refer to Chapter 3 Mechanical Section for the location of each axis.

⑨ Check to be sure that the excess grease has not been scattered around.

Make sure the excess grease has not been stuck on sensors, cameras, conveyer and its belts, and ANC

When it has been stuck on these parts, remove it with unwoven cloth.

NOTE: Refer to Chapter 3 mechanical Section for more detail in cleaning of camera lens.

Ageing Button

Execute Tab
