1 Installation

1-10

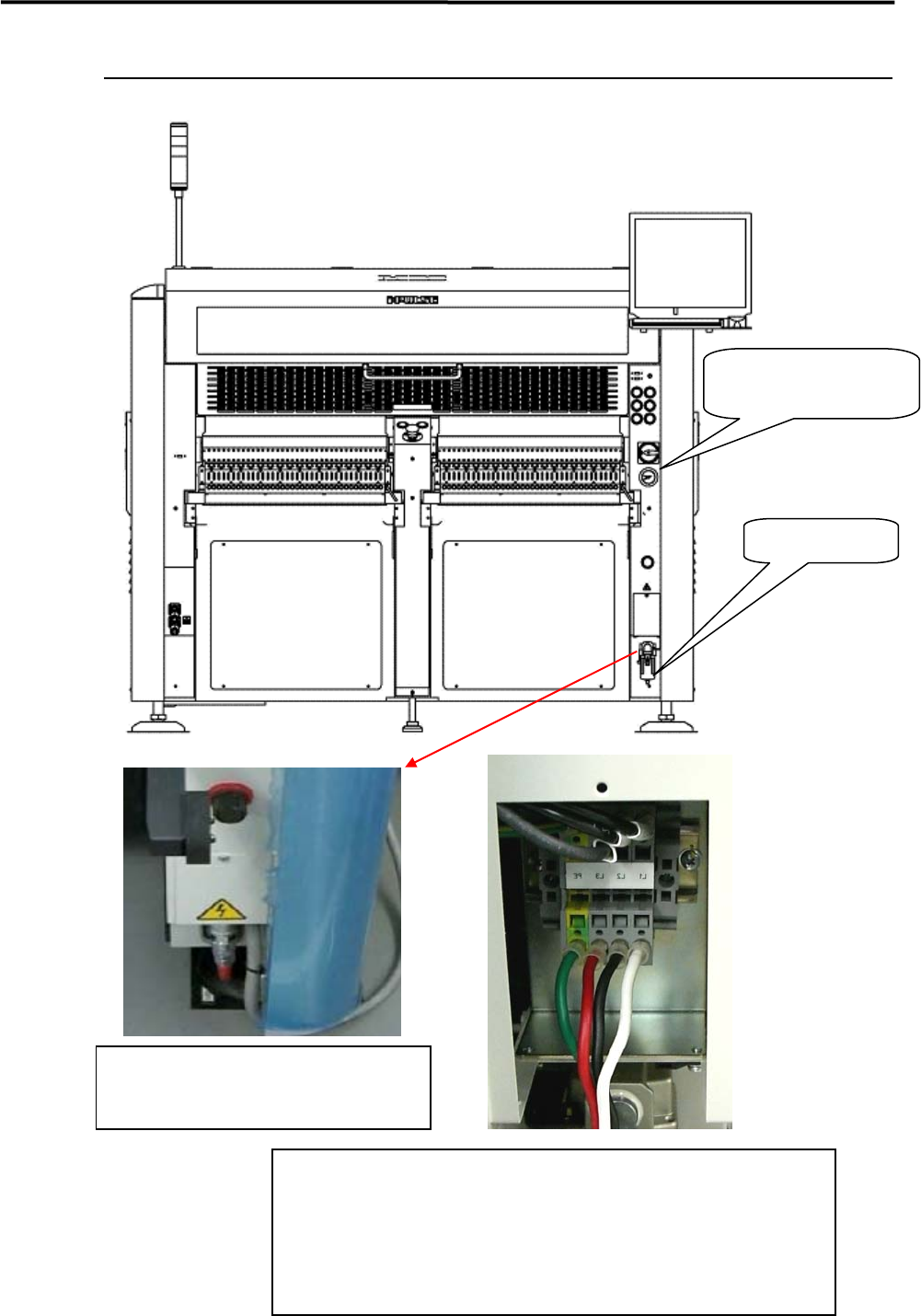

Air and Power Cable Lead-In

Air Regulator

0.45MPa

Air Coupler

Supply Side Air Coupler

65SN/85SN

(NITTO KOHKI)

Corresponding Goods

The power cable terminal block is located at

inside of the right lower cover, so the cover has to

be opened , then power cables are connected to

the block.

Electric Power Supply Source

Source Voltage： AC200/208/220/240/380/400/416/440V

Three Phase 50/60Hz

Current Capacity： 6.0kV

Electric Wire：VCT 3.5mm2 or more, Four-cores cables

Terminal：Insulating Pin Terminal

TMEV TC3.5-11(made by NITHIFU) or similar

roducts

1 Installation

1-11

Supplementary Explanation for Installation

When setting up a production line, level adjustment and line positioning of the mounter may be carried out

at the same time. However, to fine-adjust the mounter position with the mounter level, we recommends that

the mounter be roughly positioned to the production line first, and then be leveled and positioned accurately

using the following four sets comprising a hydraulic jack and plates.

ACTION:

① Apply grease between base plates 1 and 2 for lubrication purposes.

② Place a plate set near each mounter jack-up point (four points).

③ Place a jack on each plate set and jack up the mounter.

④ Adjust each jack so that the mounter is level.

⑤ Fine-adjust the position of the mounter while the mounter is jacked up. (The mounter can be moved

lengthwise and crosswise with help of grease applied between the plates.)

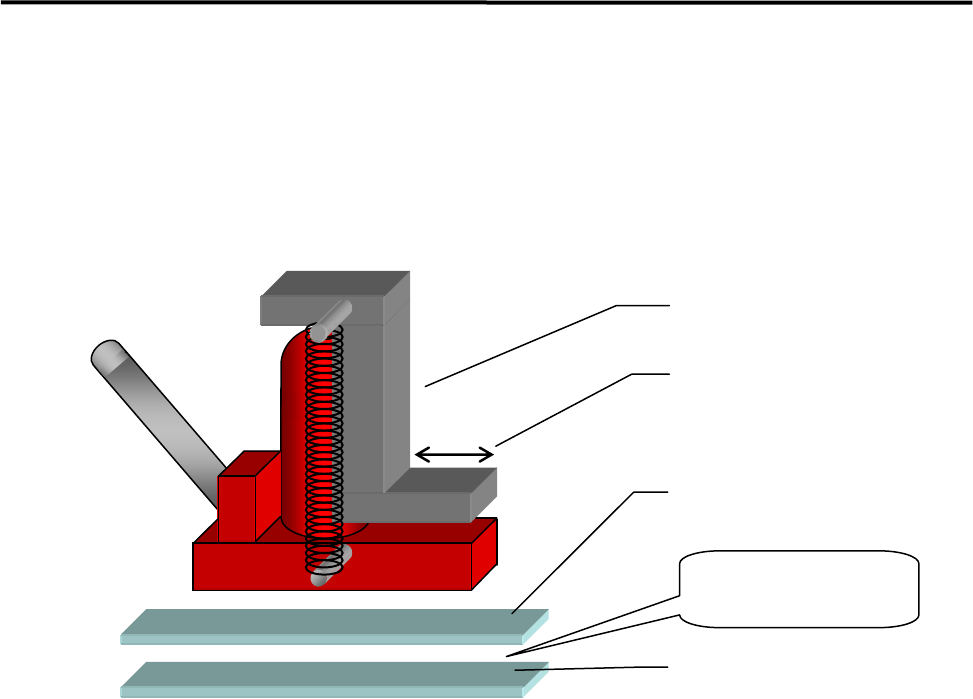

Hydraulic jack

Base plate 1

Base plate 2

Apply grease

between the

lates.

Hook stroke

1 Installation

1-12

NOTE: The hydraulic jacks must satisfy the following requirements.

Allowable load: 1.5 tons or higher

Hook size: 100mm or more (stroke)

Part Name

Part No. Remark

PLATE,BASE LG0-M8911-00X For plates 1 and 2

Jack -Up Points

Two Positions each at machine front and rear sides

M10

M20
