3 Mechanical Section

3-25

Resetting Maintenance Notice

Once maintenance is completed, go to;

Manual > Maintenance > Maintenance Notice

Add a check mark to each of the mechanical units which maintenance has been

completed, and click the [Reset] button.

Next maintenance date can be updated.

3 Mechanical Section

3-26

Specified Lubricants

■ M10/ M20

PART MANUFACTURER PRODUCT NAME

X/Y Axis

Ball Screw

Linear Guide

THK AFA Grease

NOK NBU15

KYODO YUSHI Multemp

Z Axis

Ball Screw

Linear Guide

THK AFB Grease

Showa-Shell Albania Grease No. 2

Idemitsu Daphnis Eponex Grease No. 2

R Axis

Spline Shaft

THK AFB Grease

Showa-Shell Albania Grease No. 2

Idemitsu Daphnis Eponex Grease No. 2

Silicone Grease for

Nozzle

Three Bond #1855 Silicone Grease

■Purchasable Grease from YAMAHA

Part Name

Part No. Remark

GREASE,AFA LG0-M86A3-00X AFA Grease

GREASE,AFB LG0-M86A4-00X AFB Grease

GREASE GUN ASSY. LE6-M8910-00X Grease Gun and Nozzle set

GREASE,SILICON LG0-M89AB-00X Silicone Grease

NOTE: AFA grease is superior to AFB grease and can be used for all the axes.

NOTE: Order placement for lubricants can be accepted only if the machine is delivered inside Japan. For locations

overseas, please consultant the agency from which you purchased the machine.

NOTE: Please specify Part No.

to place an order.

3 Mechanical Section

3-27

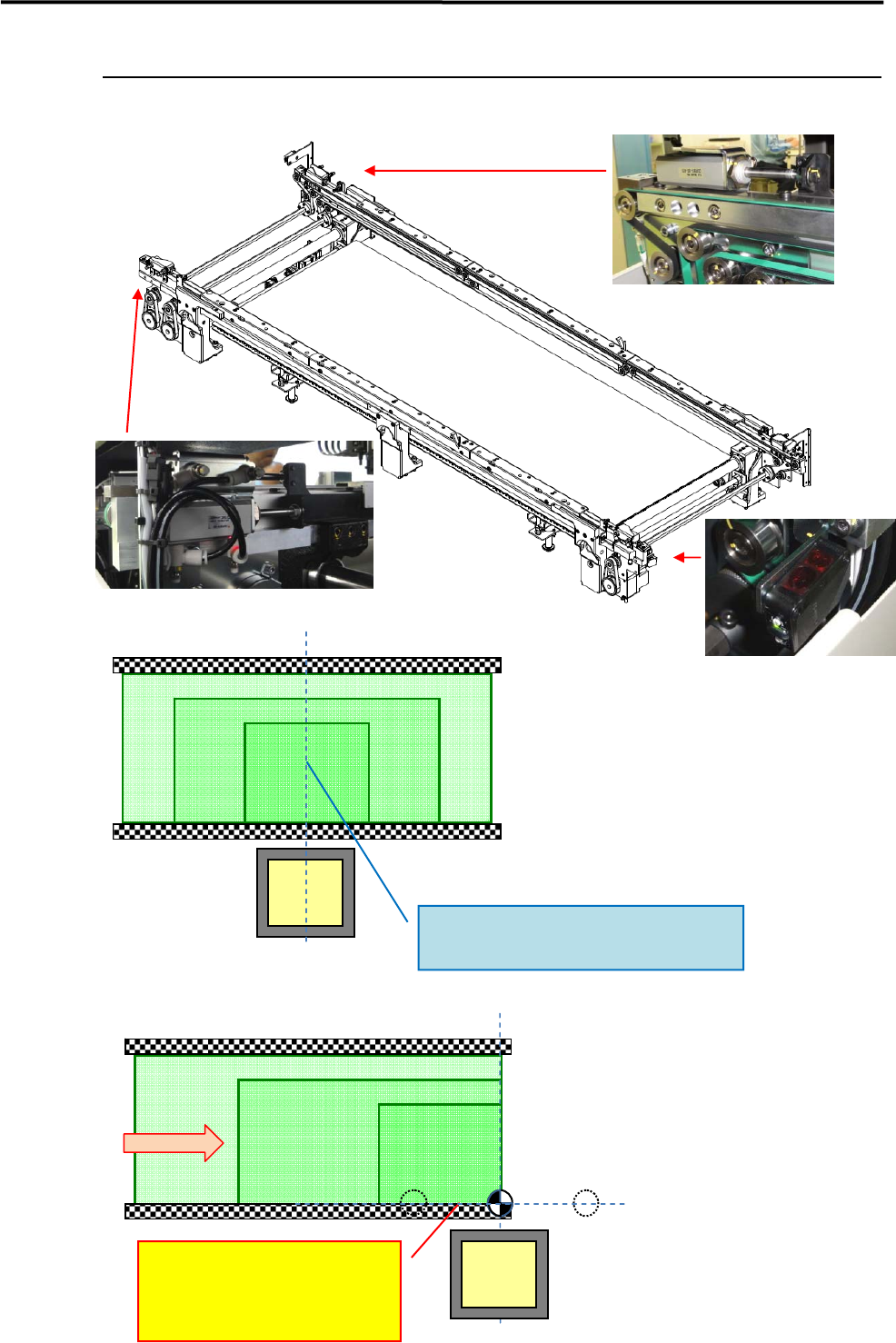

Fixed Base (X) is changed

according to the PCB size.

Fixed Base＝PCB Origin

Multi Conveyor

PCB clamp position can be adjusted flexibly regardless the board size.

M20

M10

PCB is fixed at the position where the PCB

center matches to the camera center.
