3 Mechanical Section

3-19

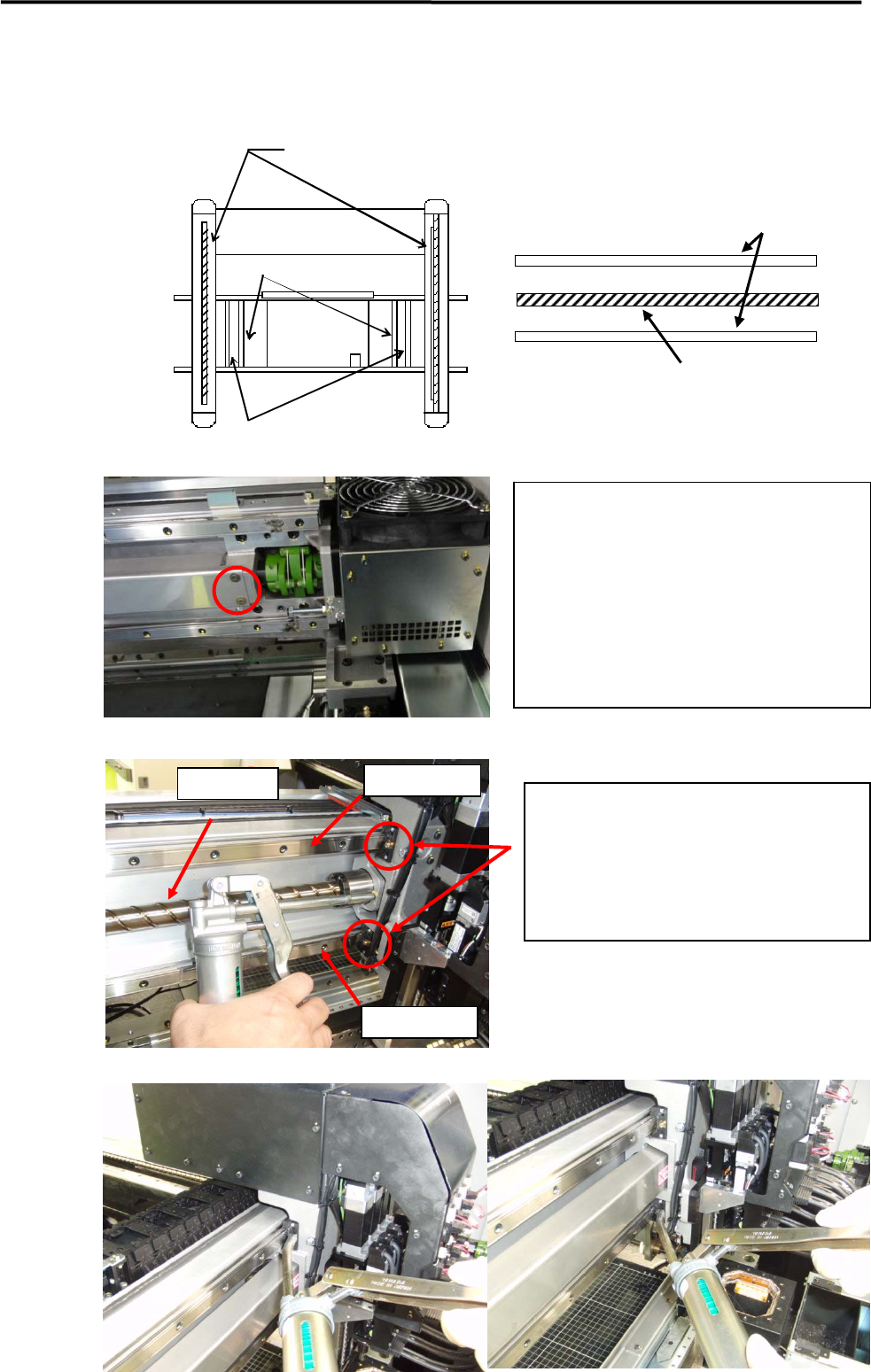

■ Lubrication Points on X/Y-axis, Conveyor, Feeder bank plates

X and Y axis Ball Screw are covered by plates (Cover Plate). These plates must be removed before

applying grease to X and Y axis Ball Screw and Linear Guides.

X Axis

X Axis Ball Screw

X Axis Linear Guide

Removing the cover plate.

・ Move the head unit all the way to either

left

or right.

・ Unscrew and remove the screws.

Screws are located at both ends of the

cover plate. (see image on the left).

・ Remove the cover plate.

Y axis Linear guide

Y axis ball screw

Conveyor adjusting screw

Conveyor guide shaft

X Axis

X Axis Linear Guide

X Axis Ball Screw

Linear Guide

Ball Screw

Linear Guide

Grease Nipples

・Grease nipples are located at both ends of

upper and lower linear guides.

・Lubricate the ball screw as shown in the

image.

3 Mechanical Section

3-20

Y Axis Ball Screw

Y 軸ボールネジカバーを外す場合。

Removing the Y Axis Ball Screw Cover Plate

Ｙ軸リニアガイド

Y Axis Linear Guide

Unscrew the bolts on both sides and remove

the ball screw cover plate

Move the X axis all the way to either front or

back.X.

Unscrew and remove 4 bolts (as shown in the

image )

Slightly lift the cover plate enough for the

nozzle of the grease gun to go through, and

lubricate the ball screw.

Grease Nipple

Move the X axis until the grease nipple on the Y

axis ball screw comes in sight through the slit of

the cover plate.

Lubricate the Y axis ball screws on both left and

right.

Firmly press the tip of the grease gun against the

grease nipple.

3 Mechanical Section

3-21

■ Remarks for lubrication on X/Y axis ball screws

NOTE: Insufficient amount of grease or remaining of old/dirty grease may cause axis damage or axis noise

problem. It is recommended that lubrication should be conducted every two weeks, but the grease

condition on the ball screws should be checked in proper intervals and lubrication should be

conducted more frequently depending on the machine’s running time and environment.

Follow the procedures below for lubrication.

■ Lubrication Points with Grease Nipples

ACTION:

① Use a nonwoven cloth and wipe off the dirty grease or adhered grease on the ball screw. Do not use a

cotton swab or woven cloth, which generate dust or waste threads.

② Press the nozzle tip of the grease gun against the grease nipple and apply grease into the ball screw

nut..

③ On the software, go to Manual > Warm Up, and conduct “Aging” at the speed of 20% for more than 10

minutes. In order to set the speed, click the “Setting” tab on the Warm-up & Self-diagnistics window

and slide the scroll bar under the “Axis Speed”.

④ Use a nonwoven cloth and wipe off the pushed-out dirty grease from the ball bearing, and apply new

grease into the ball screw nut once again.

⑤ Use a nonwoven cloth and remove excessive grease gathered on the ball screw nut or both ends of the

ball screw, and conduct “Aging” by increasing Axis Speed from low speed to high speed gradually.

⑥ Both front and rear end of the ball screws are out of the movable range of the ball screw nut and grease

are not spread to there even by moving axis all the way to its ±software limits. Apply grease to front

and rear end of the ball screws with a nonwoven cloth for rust prevention.

NOTE: Do not use a cotton-swab or a woven cloth to wipe off the dirty grease, otherwise waste threads of cloth

may be caught in the ball screw.

NOTE: Use proper grease for lubrication, specified as our standard. (See the “Specified Lubricants” list at the end

of this chapter.)

NOTE: Use a nonwoven cloth and wipe off excessive grease gathered on the ball screw nut or both ends of the ball

screws to avoid grease scattering.
