6 ． Additional Function 6 Assembly of Screw DP Head PART LIST No. PART NO. PART NAME Q’TY No. PART NO. PART NAME Q’T Y 1 LE6-M5F1E-00x O-RING 1 10 LE6-M5FL3-00x FACE SEAL 2 2 LE6-M5F59-02x PIPE, FITTING 1 11 LE6-M5FL4-00…
6．Additional Function
5
Insert ADAPTER into BRACKET NOZZLE.
Place NOZZLE onto ADAPTER.
Attach LOCK ADAPTER to BRACKET NOZZLE.
NOZZLE LIST
PART NAME PART NAME
LG7-M740S-10x NOZZLE, SINGLE (15G)
LG7-M740S-30x NOZZLE, SINGLE (19G)
LG7-M740S-50x NOZZLE, SINGLE (22G)
Lg7-M740S-70x NOZZLE, SINGLE (25G)
Be sure that O-RING is placed on
ADAPTER, and insert ADAPTER into
BRACKET NOZZLE.
Gently tighten LOCK ADAPTER enough
to prevent it from loosening.
6．Additional Function
6

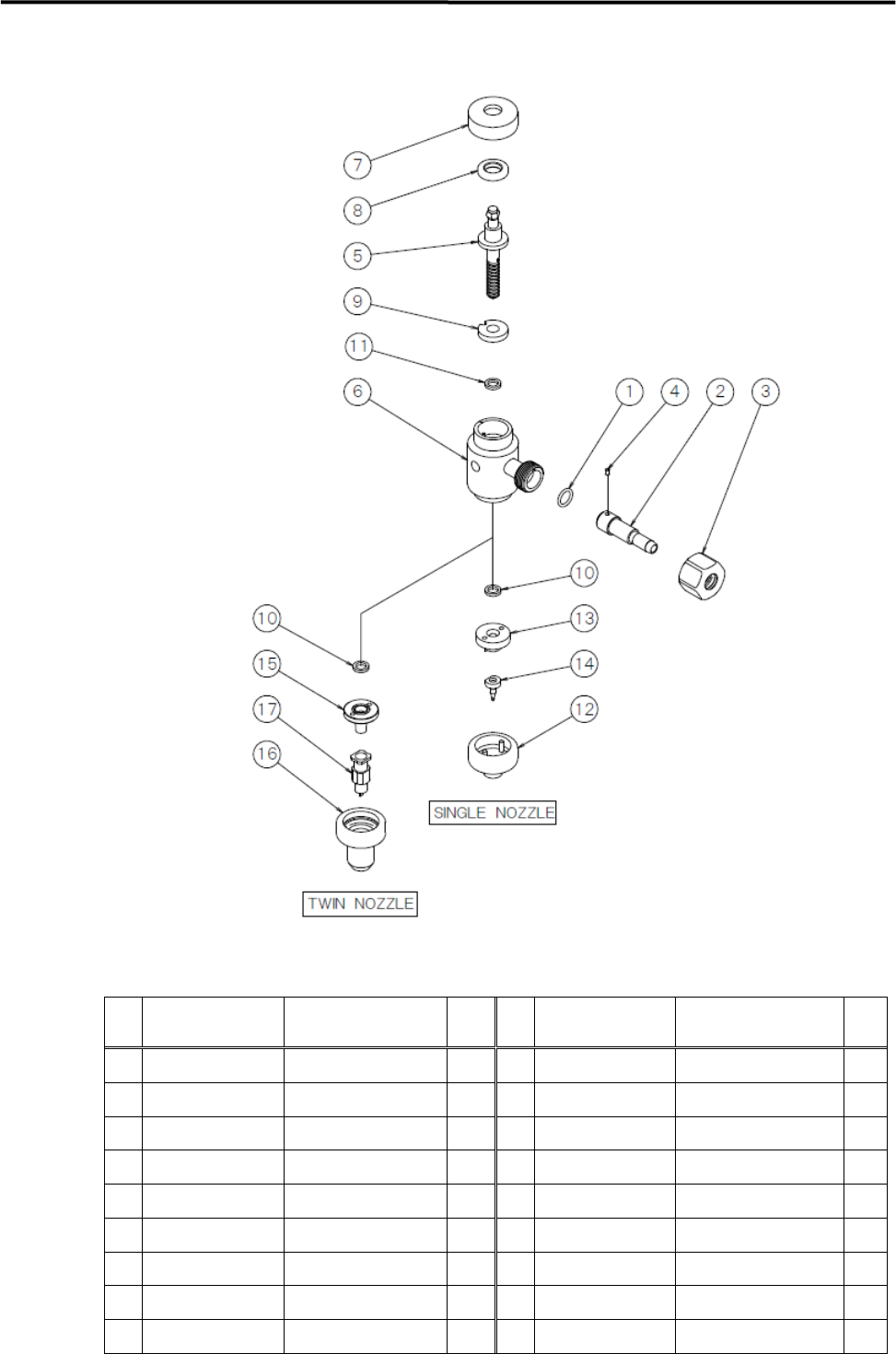

Assembly of Screw DP Head
PART LIST
No. PART NO. PART NAME Q’TY No. PART NO. PART NAME
Q’T
Y
1 LE6-M5F1E-00x O-RING 1 10 LE6-M5FL3-00x FACE SEAL 2
2 LE6-M5F59-02x PIPE, FITTING 1 11 LE6-M5FL4-00x O-RING (VITON) 1
3 LE6-M5F5C-01x NAT, CAP 1 12 LE6-M5FM0-00x CAP, BOTTOM 1
4 LE6-M5F5D-00x PIN, PARALLEL 1 13 LE6-M5FM1-00x ADAPTER PLATE 1
5 LE6-M5FJ0-00x SCREW 16-1-01 1 14 LE6-M5FN0-xxx SINGLE NOZZLE SEL 1
6 LE6-M5FK0-00x CARTRIDGE BODY 1 15 LE7-M5F61-00x ADAPTER 1
7 LE6-M5FK1-00x CAP, TOP 1 16 LE7-M5F62-00x CAP. LOCK 1
8 LE6-M5FL0-00x UPPER BEARING 1 17 LE7-M5F63-xxx TWIN NOZZLE SEL.
9 LE6-MFL1-00x LOWER BEARING 1
6．Additional Function
7

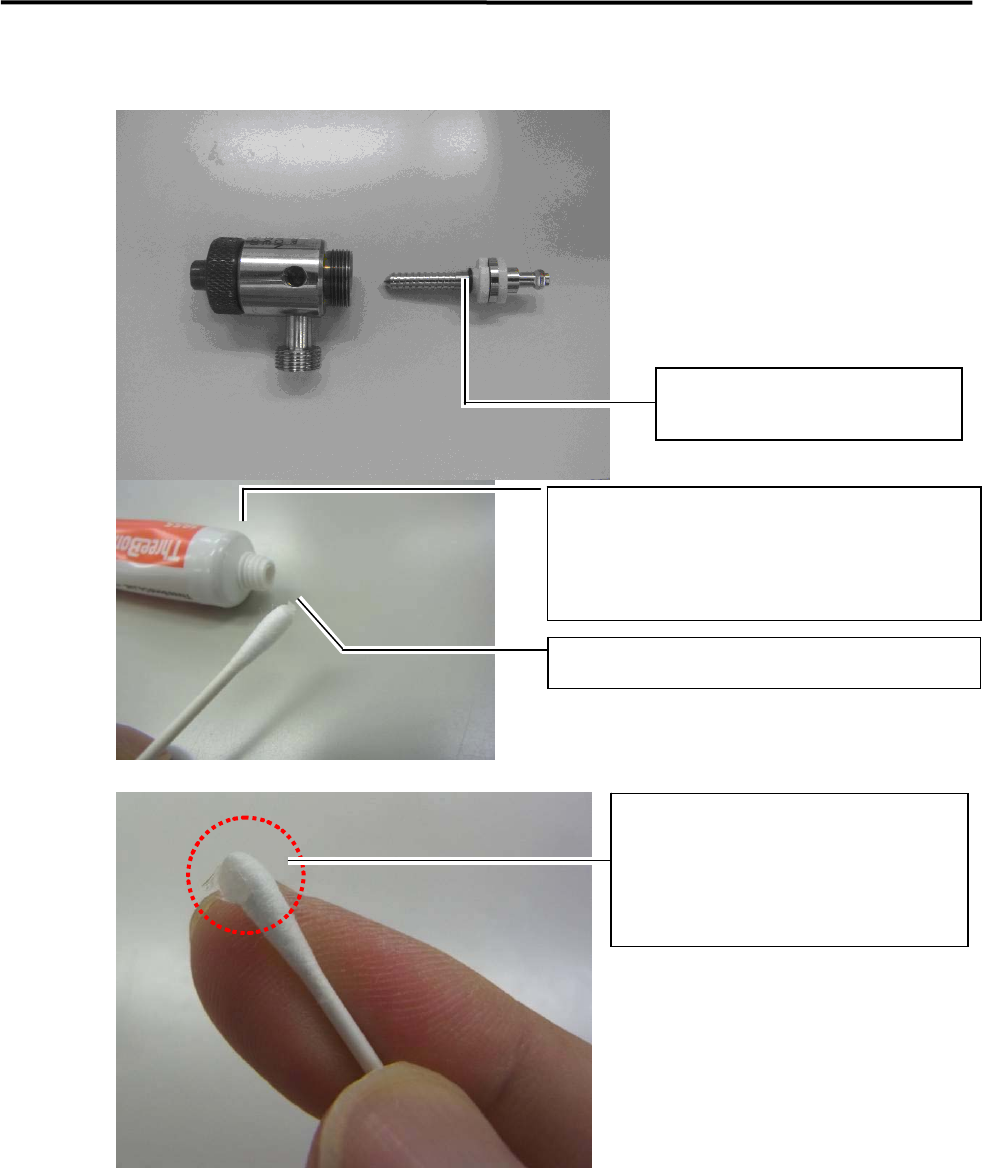

Placement of O-Ring to Screw Pump
Follow the instructions below and place the O-ring to the screw pump.
Apply the silicon grease.
Use the silicon grease which has been shipped
along with the machine.
LG0-M89AB-000 / GREASE SILICON
※Do not use any other silicon grease.
Apply the silicon grease to a cotton swab.
Small portion of the silicon grease is
sufficient. (As seen on the picture.)
※Do not apply too much of the silicon
grease.
O-RING
LE6-M5FL4-000 / O-RING
