6．Additional Function
7
Placement of O-Ring to Screw Pump
Follow the instructions below and place the O-ring to the screw pump.
Apply the silicon grease.
Use the silicon grease which has been shipped
along with the machine.
LG0-M89AB-000 / GREASE SILICON
※Do not use any other silicon grease.
Apply the silicon grease to a cotton swab.
Small portion of the silicon grease is
sufficient. (As seen on the picture.)
※Do not apply too much of the silicon
grease.
O-RING
LE6-M5FL4-000 / O-RING
6．Additional Function
8
２ｍｍ

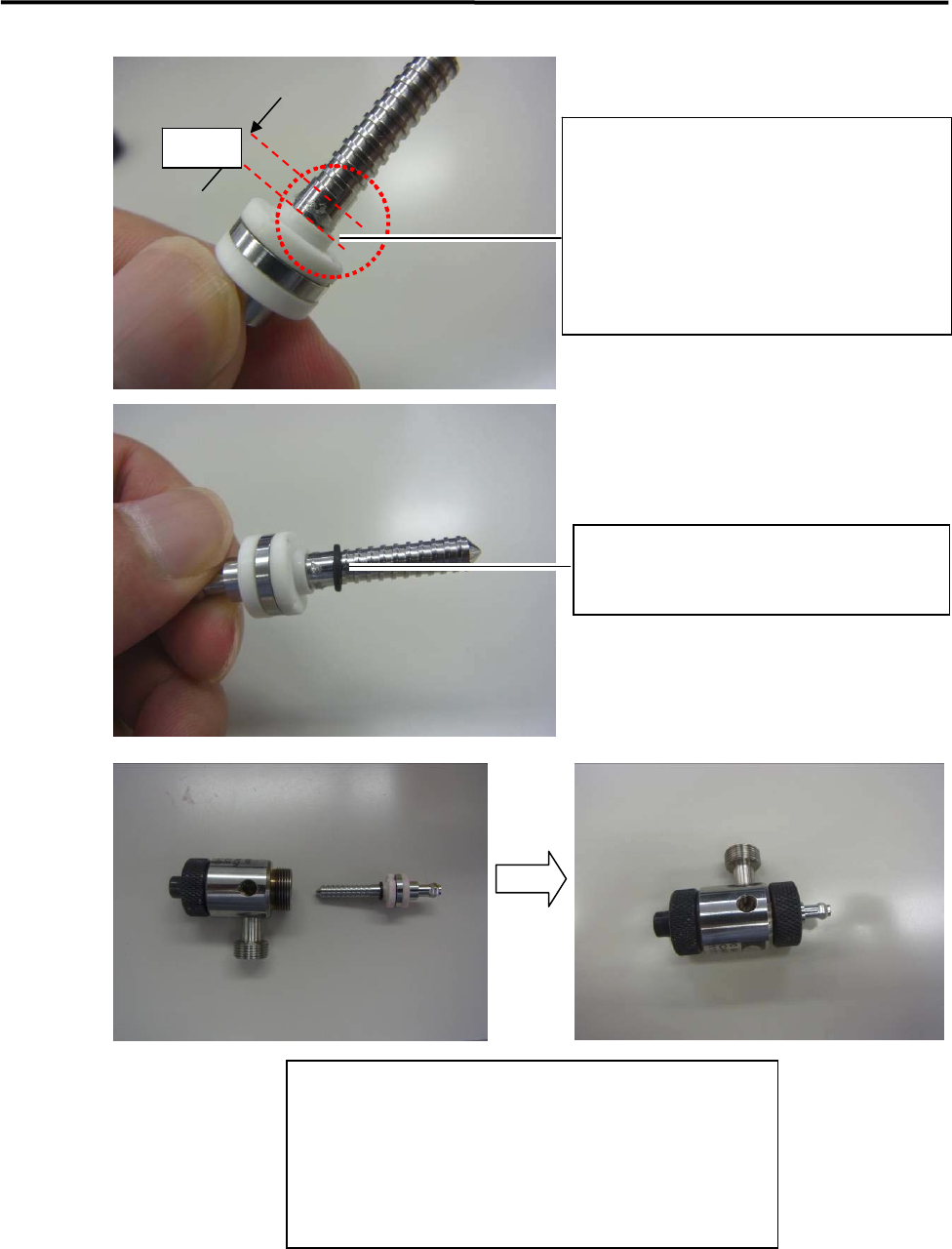

Apply the silicon grease to the screw axis with
the cotton swab.
(Up to approximately 2 mm from the lower
bearing.)
※Do not apply the silicon grease any wider
than 2 mm from the lower bearing.
Place the O-ring to the screw axis.
LE6-M5FL4-000 / O-RING (VITON)
Align the V-shape cut on the lower bearing to the projection
inside of the screw pump, and insert the screw axis to the
screw pump.
Insert the screw axis all the way to the end, and place and
secure the screw retainer cap.
6．Additional Function
9
Assembly of Standard DP Rotation Nozzle
PART LIST
No. PART NO. PART NAME Q
’
TY No. PART NO. PART NAME Q
’
TY
1 LE6-M5FBV-00x O-RING 1 9 LE7-M5F18-00x COLLAR 1
2 LE7-M5F11-00x HOLDER,NOZZLE 1 10 LE7-M5F19-00x CAP,LOCK 1
3 LE7-M5F12-00x BODY,MAIN 1 11 LE7-M5F1A-00x O-RING 2
4 LE7-M5F13-00x PIPE,FITTING 1 12 LE7-M5F1C-00x O-RING 1
5 LE7-M5F14-00x CAP,LOCK 1 13 LE8-M5F70-xxx TWIN NOZZLE SEL 1
6 LE7-M5F15-00x ADAPTER 1 14 LG0-M71GH-10x SCREW,SET 1
7 LE7-M5F16-00x STOPPER,TWIN 1 15 LG0-M71GK-30x SCREW,SET 1
8 LE7-M5F17-00x PIN,PARALLEL 1
