6．Additional Function
11
Place CAP, LOCK onto BODY, MAIN
BODY, MAIN (LE7-M5F12-00x)
CAP, LOCK (LE7-M5F14-00x)
Assemble the nozzle onto nozzle holder.
HOLDER, NOZZLE (LE7-M5F11-00x)
O-RING (LE7-M5F1C-00x)
ADAPTER (LE7-M5F15-00x)
TWIN NOZZLE SEL (LE8-M5F70-xxx)
STOPPER,TWIN (LE7-M5F16-00x)
Insert the nozzle into ADAPTER.
Set the nozzle and ADAPTER onto the nozzle
holder.
Rotate the twin stopper and complete the
assembly.
5
6
7
6．Additional Function
12
NOZZLE LIST
No. PART NO. PART NAME Q’TY No. PART NO. PART NAME Q’TY
1 LG7-M740T-10x NOZZLE, TWIN (18G) 1 9 LE8-M5F72-00x NOZZLE, TWIN L (18G) 1
2 LG7-M740T-30x NOZZLE, TWIN (21G) 1 10 LE8-M5F72-10x NOZZLE, TWIN L (21G) 1
3 LG7-M740T-50x NOZZLE, TWIN (22G) 1 11 LE8-M5F72-20x NOZZLE, TWIN L (22G) 2
4 LG7-M740T-70x NOZZLE, TWIN (24G) 1 12 LE8-M5F72-30x NOZZLE, TWIN L (24G) 1

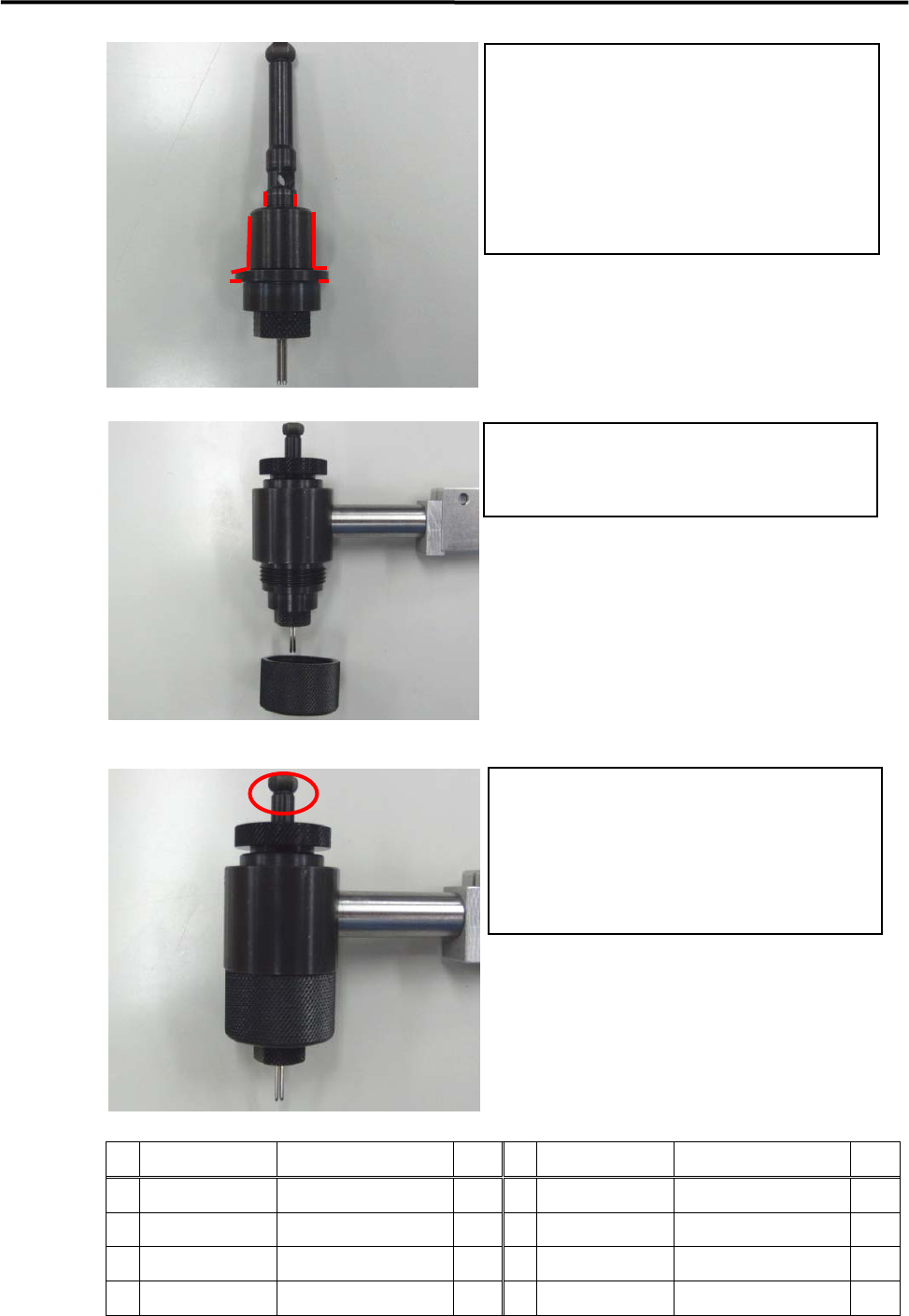

Lubricate the nozzle holder (See red lines on the
image.)
Do not apply too large amount of grease,
otherwise the rotation speed of the dispense slows
down.
Rotate the twin stopper and complete the
assembly of the nozzle.
Insert the nozzle assy. Into BODY, MAIN.
Rotate CAP, LOCK and lock the nozzle assy..
Hold the top thumb nut (see red area on the
image) and rotate it. Check to see if it rotates
smoothly.
If the thumb nut does not rotate smoothly, repeat
8. described above and lubricate the nozzle holder
once again.
8
9
10
6．Additional Function
13
Program Creation
1. Editing PickUp Data
Create one “dot station” record for each dispense code of use (regardless of its rotation angle) and set its
θ coordinate to “0” degree.
※ At production, the rotation angle is automatically calculated according to the angle that the program
specifies, and it is compensated only if necessary.
2. Editing Dispense Data
2-1. Since no specific rotation angle needs to be specified in the “Dispense Offset Count” on a
“Dot Station” record, set “θ Offset” coordinate to “0” degree.
2-2. In order to change a dispensing angle without changing a rotation angle on the ”Placement & Mark”
data, go to the “Dispense” data and change the “θ Offset” value.
