3 Mechanical Section 3-2 Head Manifold Section Solenoid Valve (6 pieces) Air Filter Cap Supply Valve LE6-M71A2-B0X Breaking Valve LE6-M71A2-C0X
3 Mechanical Section
3-1
3
Mechanical Section
3 Mechanical Section
3-2

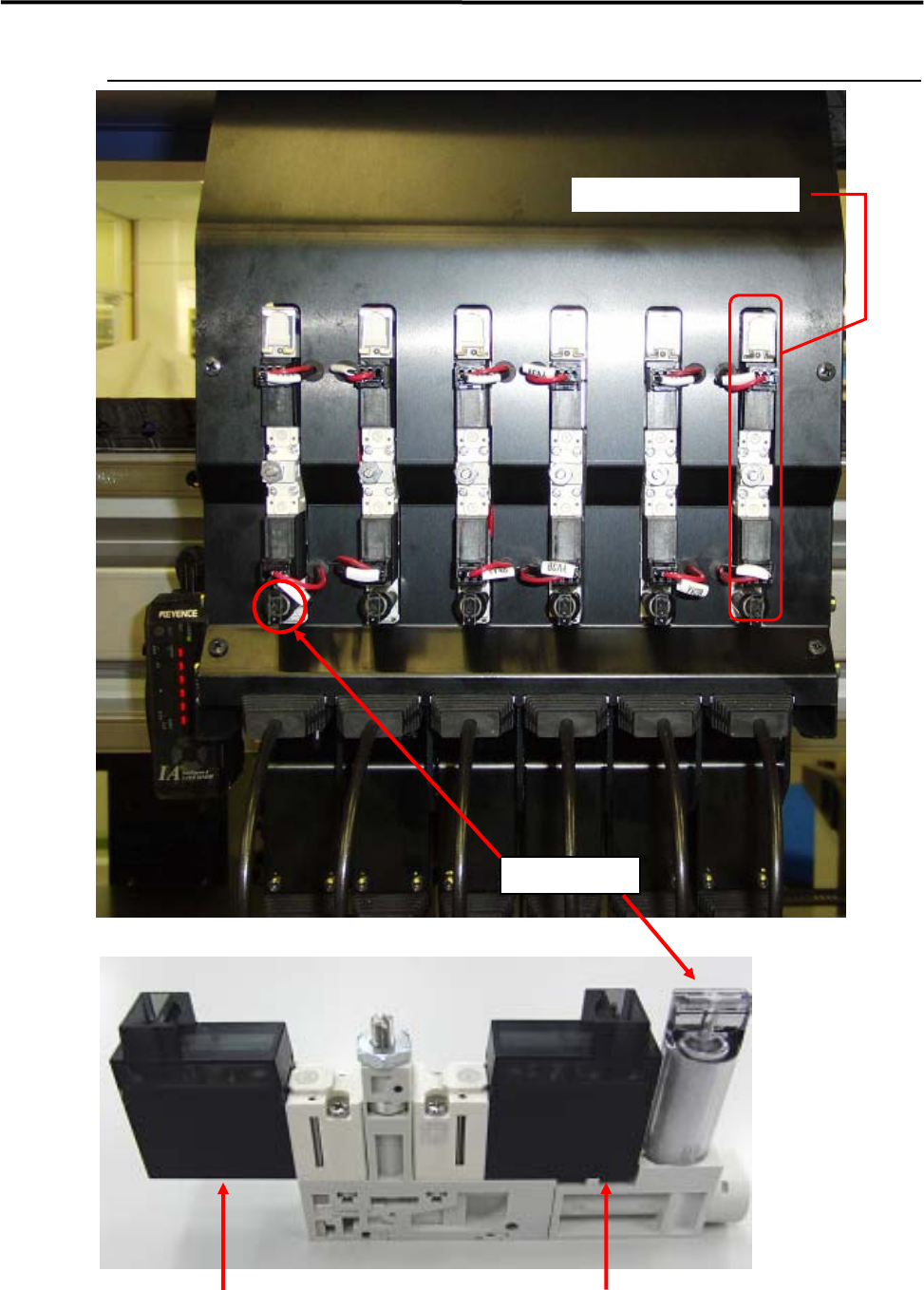

Head Manifold Section
Solenoid Valve (6 pieces)
Air Filter Cap
Supply Valve
LE6-M71A2-B0X
Breaking Valve
LE6-M71A2-C0X
3 Mechanical Section
3-3
■ Air Passage
To maintain the designed accuracy and component-placement rate of the machine, clean the air passage
between the air filter assy. and nozzle holder periodically.
ACTION: Carry out vacuum break operation for a few seconds with the nozzle removed.
● Cleaning Interval
Approx. once a week
■ Air Filter
ACTION: Remove a filter element from the air filter assy. and remove dust and dirt collected inside the assy. by air
blowing. Then, check the white air element for dirt. When it is excessively dirty, replace it with a new one.
If an O-ring attached on the filter cap gets dirty, wash it with water or diluted neutral detergent, and dry it
well. If there are cracks on the o-ring, replace it with a new one since the cracks may cause air leakage.
● Inspection Interval
Once a week, and when a choking error occurs
Part Name
Part No. Remark
FILTER LE6-M71A2-E0X Filter Element
■ Vacuum Generator
ACTION: Check the silencer element visually. When it is excessively dirty, replace it with a new one. Also measure
the maximum air pressure to inspect whether the vacuum generator can generate a proper vacuum.)
Inspection for Head/Nozzle Clogging and Solenoid Valve
● Inspection Interval
Once a week
