6．Additional Function
9

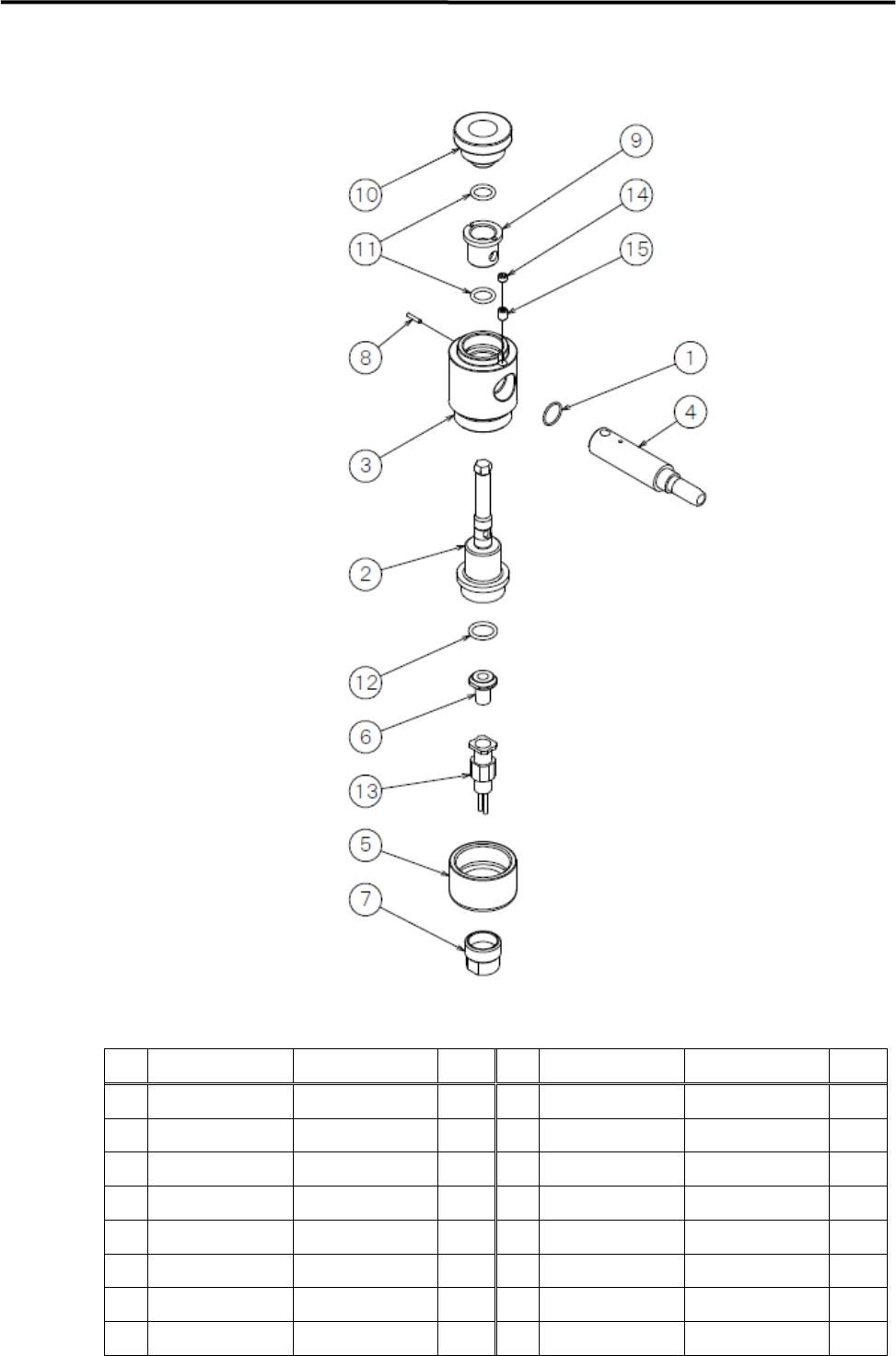

Assembly of Standard DP Rotation Nozzle
PART LIST
No. PART NO. PART NAME Q
’
TY No. PART NO. PART NAME Q
’
TY
1 LE6-M5FBV-00x O-RING 1 9 LE7-M5F18-00x COLLAR 1
2 LE7-M5F11-00x HOLDER,NOZZLE 1 10 LE7-M5F19-00x CAP,LOCK 1
3 LE7-M5F12-00x BODY,MAIN 1 11 LE7-M5F1A-00x O-RING 2
4 LE7-M5F13-00x PIPE,FITTING 1 12 LE7-M5F1C-00x O-RING 1
5 LE7-M5F14-00x CAP,LOCK 1 13 LE8-M5F70-xxx TWIN NOZZLE SEL 1
6 LE7-M5F15-00x ADAPTER 1 14 LG0-M71GH-10x SCREW,SET 1
7 LE7-M5F16-00x STOPPER,TWIN 1 15 LG0-M71GK-30x SCREW,SET 1
8 LE7-M5F17-00x PIN,PARALLEL 1
6．Additional Function
10

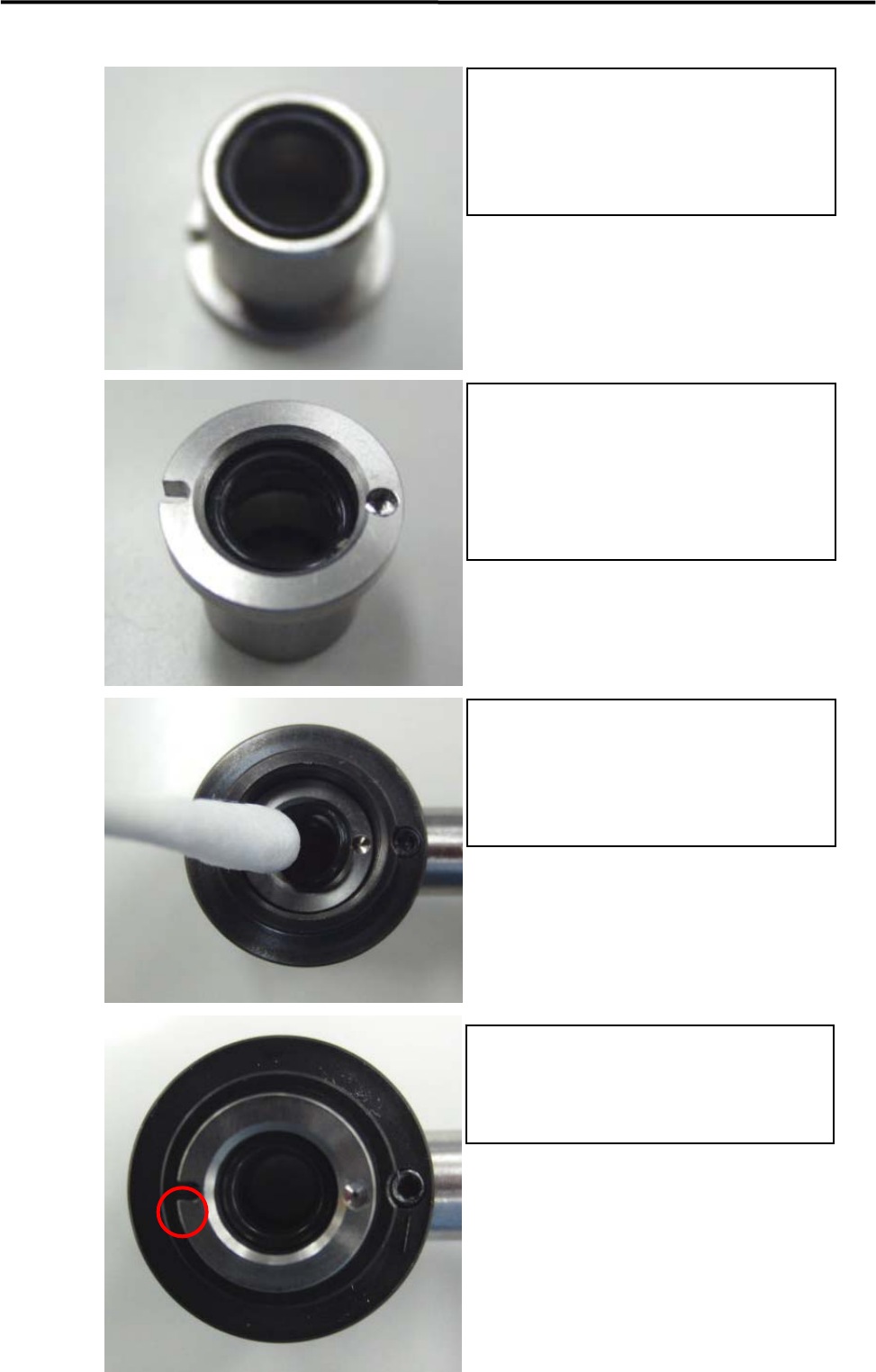

Follow the instructions below and place O-RING onto the dispense nozzle.
Ser O-RING onto COLLAR.
＊It is recommended that O-RING should be
replaced once a month.
COLLAR (LE7-M5F10-00x)
O-RING (LE7-M5F1A-00x)
Ser O-RING onto COLLAR. (on the other
end)。
＊It is recommended that O-RING should be
replaced once a month.
COLLAR (LE7-M5F10-00x)
O-RING (LE7-M5F1A-00x)
Set COLLAR onto BODY, MAIN.
Apply grease to a cotton swab and lubricate the
inside of O-RING.
BODY, MAIN (LE7-M5F12-00x)
Silicon Grease (LG1-M89AB-00x)
Set COLLAR onto BODY, MAIN.
Adjust the positioning slit on COLLAR to meet
the positioning pin on BODY, MAIN.
１
2
3
4
6．Additional Function
11

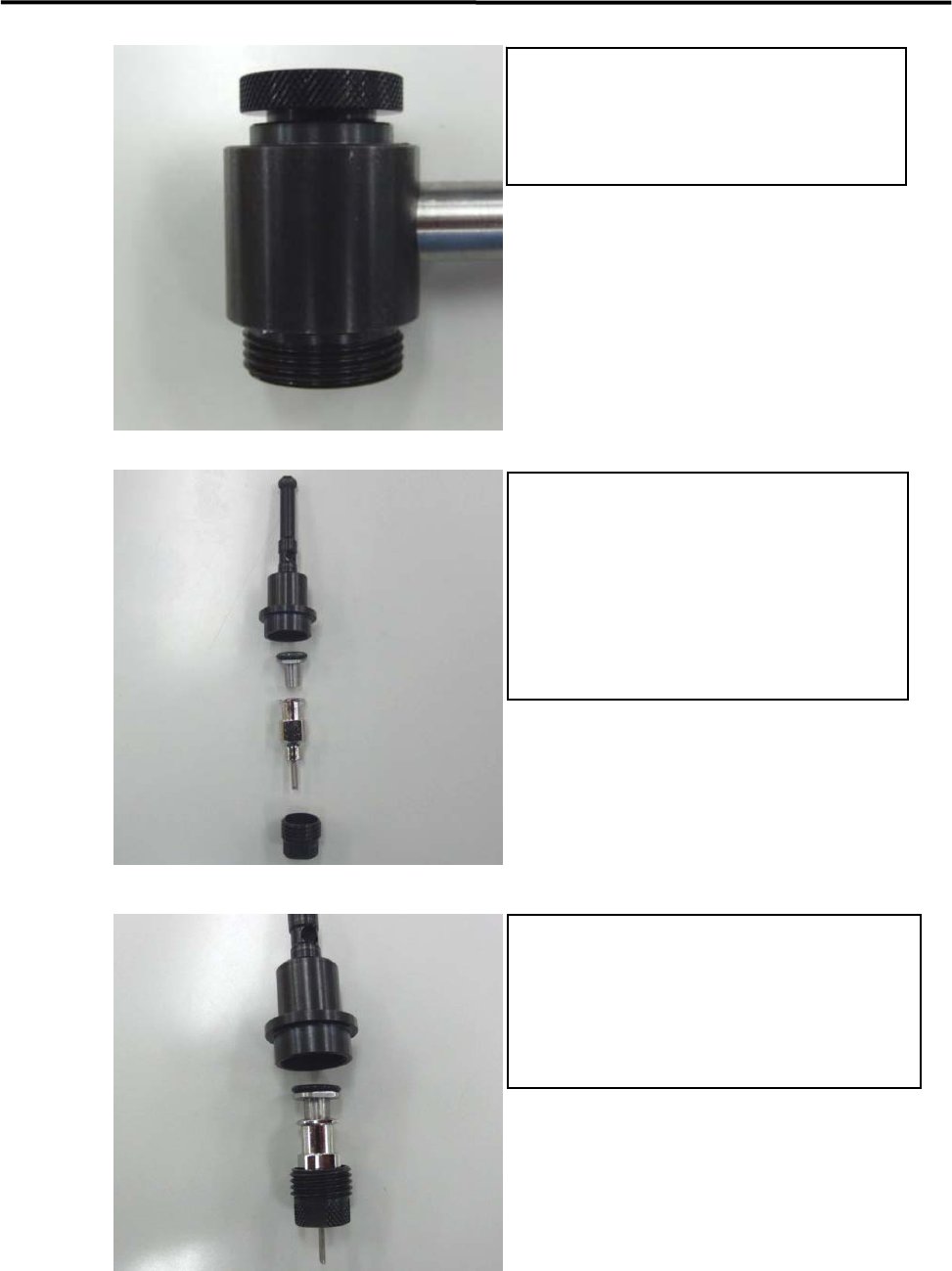

Place CAP, LOCK onto BODY, MAIN
BODY, MAIN (LE7-M5F12-00x)
CAP, LOCK (LE7-M5F14-00x)
Assemble the nozzle onto nozzle holder.
HOLDER, NOZZLE (LE7-M5F11-00x)
O-RING (LE7-M5F1C-00x)
ADAPTER (LE7-M5F15-00x)
TWIN NOZZLE SEL (LE8-M5F70-xxx)
STOPPER,TWIN (LE7-M5F16-00x)
Insert the nozzle into ADAPTER.
Set the nozzle and ADAPTER onto the nozzle
holder.
Rotate the twin stopper and complete the
assembly.
5
6
7
