User Manual SIPLACE X-Series 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.10 S feeder modules for the SIPLACE HF component trolley
191
3.10.8 Technical data for the S feeder modules
The following pages contain pictures of all the S feeder modules, the technical data and the op-
tions for setting up the S feeder modules on the machine.
3.10.8.1 8 mm SII tape feeder module
3

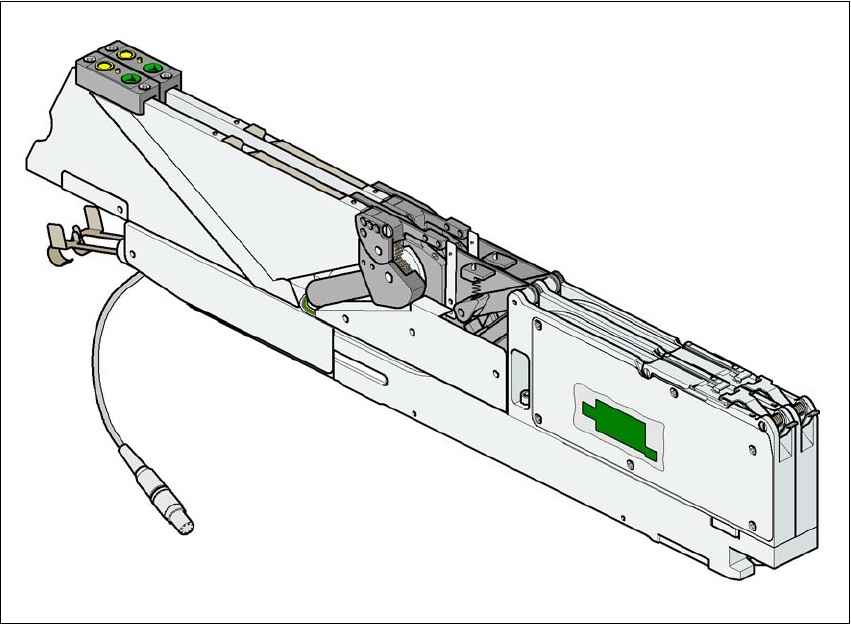

Fig. 3.10 - 1 8 mm S II tape feeder module
Item no. 00141096-xx 3
Width 30.6 mm 3
Tracks per feeder module 2 3
Feeder module locations filled 1 3
Maximum number of feeder modules 4 x 15 3
Stock of components for 7" reels Approx. 4,000 3
Conveyor increment (variable) 2mm / 4mm 3
Tape material Paper or blister tape 3
Max. component height 2.5 mm 3
3 Technical data for the machine User Manual SIPLACE X-Series
3.10 S feeder modules for the SIPLACE HF component trolley From software version SR.605.xx 07/2008 EN Edition
192
3.10.8.2 3 x 8 mm S tape feeder module
Fig. 3.10 - 2 3 x 8 mm S tape feeder module
Item no. 00141098-xx 3
Width 30.6 mm 3
Tracks per feeder module 3 3
Feeder module locations filled 1 3
Maximum number of feeder modules 4 x 15 3
Stock of components for 7" reels Approx. 4,000 to 10,000 3
Conveyor increment 2mm / 4mm / 8 mm 3
Tape material Paper or blister tape 3
Max. component height 2.5 mm 3
User Manual SIPLACE X-Series 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.10 S feeder modules for the SIPLACE HF component trolley
193
3.10.8.3 3 x 8 mm S tape feeder module for 0201/0402 components
3
Fig. 3.10 - 3 3 x 8 mm S tape feeder module for 0201/0402 components
3
Item no. 00141099-xx 3
Width 30.6 mm 3
Tracks per feeder module 3 3
Feeder module locations filled 1 3
Maximum number of feeder modules 4 x 15 3
Stock of components for 7" reels Approx. 10,000 3
Conveyor increment 2mm / 4mm 3
Tape material Paper tape 3
Max. component height 0.7 mm 3
Component range 0201/0402 3
