User Manual SIPLACE X-Series 1 Introduction
From software version SR.605.xx 07/2008 EN Edition 1.1 Description of the machine
23
1

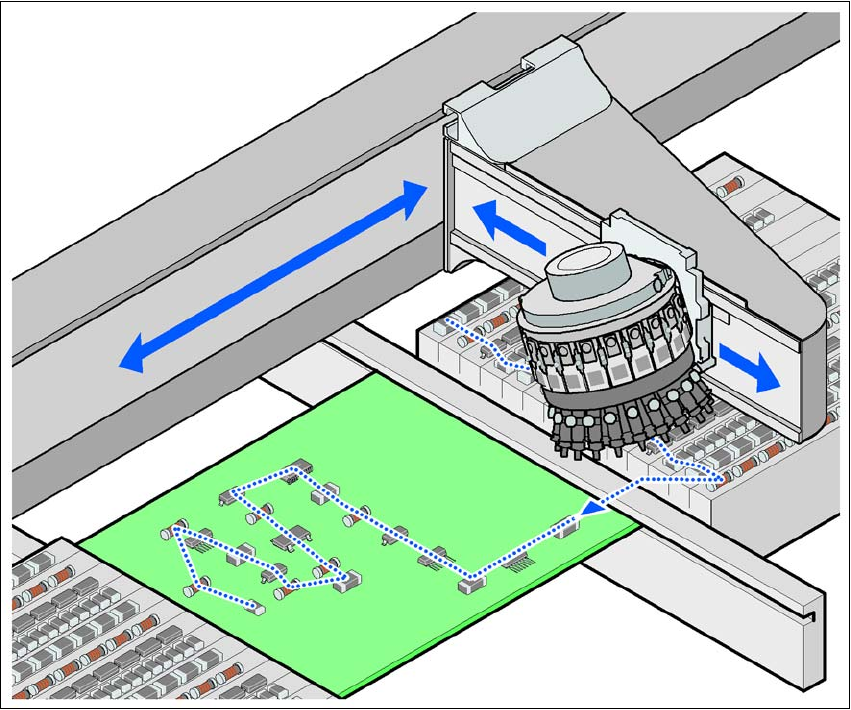

Fig. 1.1 - 1 Placement principle using the Collect&Place method
1
1
1
1.1.5 New options and performance features
The following new options are available to extend the machine's functionality:
– SIPLACE XPL
The "SIPLACE X-series Productivity Lane" option in the middle of the dual PCB conveyor al-
lows PCBs to be overtaken in the placement machine. As with the productivity lift, the place-
ment machine is operated in parallel. This third conveyor track can be viewed from above,
and even works with the protective cover open. This allows the path that the PCB takes
through the machine to be followed for checking purposes.
– SIPLACE XPS
SIPLACE X-series productivity shuttles on the input/output side of the machine or line distrib-
ute the PCBs to be processed to the required track of the dual PCB conveyor or to the
SIPLACE XPL.
1 Introduction User Manual SIPLACE X-Series
1.1 Description of the machine From software version SR.605.xx 07/2008 EN Edition
24
– 3x8mm SL tape feeder module
SL means shutterless, that is without a component cover. Dispensing with unnecessary me-
chanical parts reduces the acquisition costs and maintenance costs for this feeder module.1
– Splice detection for S tape feeder modules
Splice detection for S tape feeder modules can be retrofitted on the machines.
– Waffle-pack changer
The waffle-pack changer allows the following locations to dock in at X2 and X3 placement
machines:
SIPLACE X2: feeder locations 2 and 4
SIPLACE X3: location 2
– LDU-X
The X linear dipping unit is used to wet flip-chip and CSP components with flux .
User Manual SIPLACE X-Series 1 Introduction
From software version SR.605.xx 07/2008 EN Edition 1.1 Description of the machine
25
1.1.6 Serial number of the placement machine
The serial number of the placement machine can be found in two different places.
– The serial number, without leading zeroes, e.g. B-1, is struck on the left-hand side of the ma-
chine frame, on the same side as the pneumatic unit (see item 1 in Fig. 1.1 - 2
).
– With leading zeros, e.g. B-001, the serial number is punched in the rating plate (see item 2 in
Fig. 1.1 - 2
).
1
Fig. 1.1 - 2 Places with the serial number on the machine
