MI L - S TD - 202 - 203 Dim ens ion s A B ±.06 (1.52) C ±.06 (1.5 2) D E (R a d ) F ±.06 (1.52) 3.870 (98.30) 4.03 (102.36) 3.75 (95.25) 2. 220 ( 56. 39) 7 / 1 .2 2 0 ( 3 0.99) 3.370 (85.60) 3.870 (98.30) 4.03 (102.36) 3…
MIL-STD-202-203
Inches mm Inches mm Inches mm
.94 23.88 12.00 304.80 20.00 508.00
2.00 50.80 12.91 327.91 20.16 512.06
3.00 76.20 15.25 387.35 30.50 774.70
3.06 77.72
NOTES:
1. Unless otherwise specified, tolerances are ±.06 (1.52 mm) on decimals and ±0° 30' on angles.
2. Material for end and side panels shall be steel .0747 (1.90 mm) nominal thickness.
3. Material for shelves and deflectors shall be steel .083 (2.11 mm) nominal thickness.

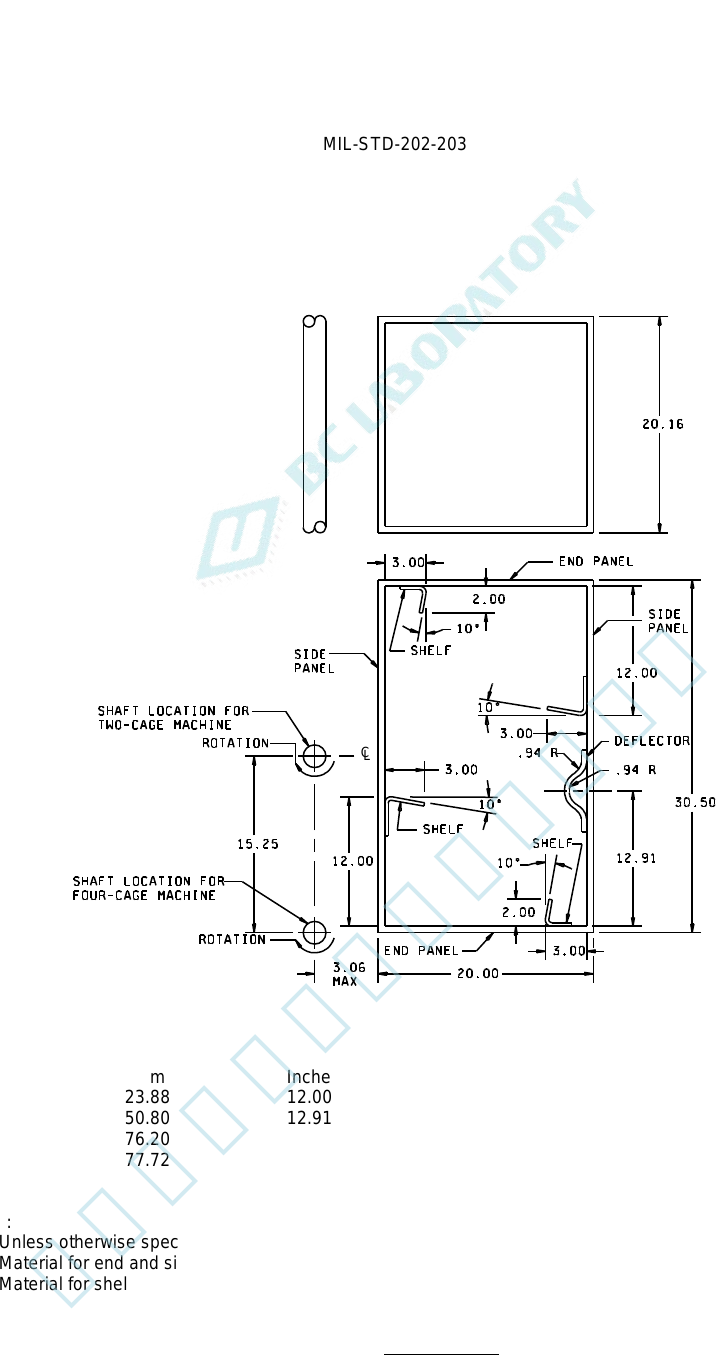

FIGURE 3. Cage (interior).
C
L
5
北测（上海）电子科技有限公司
联系方式：xuyj@beice-sh.com 13917165676
MIL-STD-202-203
Dimensions
A B ±.06 (1.52) C ±.06 (1.52) D E (Rad) F ±.06 (1.52)
3.870
(98.30)
4.03
(102.36)
3.75
(95.25)
2.220
(56.39)
7/ 1.220
(30.99)
3.370
(85.60)
3.870
(98.30)
4.03
(102.36)
3.75
(95.25)
2.820
(71.63)
7/ 1.580
(40.13)
3.370
(85.60)
4.870
(123.70)
5.03
(127.76)
4.75
(120.65)
3.820
(97.03)
8/ 2.062
(52.37)
4.370
(111.00)
NOTES:
1. Dimensions are given in inches. Metric equivalents are in parentheses and are given for general information
only.
2. Unless otherwise specified, tolerances are ±.005 inch (0.13 mm) for three place decimals, and ±.02 inch
(0.51 mm) for two place decimals.
3. Material for sleeve and reinforcing rings shall be carbon steel, condition CWSR, grade MT1015 or 1015,
conforming to ASTM A519.
4. Material shall be hot-rolled steel strip, annealed condition, annealed finish, conforming to QQ-S-698.
5. Silver solder all around. Silver solder shall conform to class 1 of QQ-B-654.
6. End of cylinder to be spun-over after insertion of reinforcing ring.
7. Radius of 3 holes equally spaced.
8. Radius of 6 holes equally spaced.
FIGURE 4. Sleeve.
6
北测（上海）电子科技有限公司
联系方式：xuyj@beice-sh.com 13917165676
MIL-STD-202-203
6. NOTES
(This section contains information of a general or explanatory nature that may be helpful, but is not mandatory.)
6.1 Supersession data. The main body and 38 parts of this revision of MIL-STD-202 replace superseded MIL-STD-
202.
Custodians: Preparing activity:
Army - CR DLA – CC
Navy - EC
Air Force - 85 (Project 59GP-2015-018)
DLA - CC
Review activities:
Army - AR, AT, AV, CR4, MI, SM, TE
Navy - AS, OS, SH
Air Force - 19, 99
NSA - NS
NOTE: The activities listed above were interested in this document as of the date of this document. Since
organizations and responsibilities can change, you should verify the currency of the information above using the
ASSIST Online database at https://assist.dla.mil/
