MI L - S TD - 202 - 207 Item D e s c r ip t i on M at er i al Q uan tity 1 / 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Pa nel St andar d c hann el , 3 x 5 pound Fa br i c at e d s pac er Sp ac er s t i f f en er Fa br i c at e d …

MIL-STD-202-207

FIGURE 4A. Standard mounting fixtures for electrical-indicating switchboard meters

and other panel-mounted parts - Continued.

北测（上海）电子科技有限公司

联系方式：xuyj@beice-sh.com 13917165676

MIL-STD-202-207

Item

Description

Material

Quantity 1/

Panel

Standard channel, 3 x 5 pound

Fabricated spacer

Spacer stiffener

Fabricated spacer

Hex head bolt, .750-10UNC-2A x 1.75 lg

Hex head nut, .750-10UNC-2B

Washer, 2.00 OD x .81 ID

Washer, 1.38 OD x .81 ID

Hex head bolt, .500-13UNC-2A x 1.00 lg

Hex head nut, .500-13UNC-2B

Washer, 1.38 OD x .56 ID

Hex head bolt, .750-10UNC-2A x 2.50 lg

Block, 2.25 x 2.00 x 1.25

Steel

1/ Quantities are for one mounting.

Inches mm Inches mm Inches mm Inches mm

.06 1.52 1.31 33.27 7.00 177.80 12.00 304.80

.12 3.05 1.38 35.05 7.50 190.50 13.00 330.20

.25 6.35 1.50 38.10 8.00 203.20 19.00 482.60

.56 14.22 1.75 44.45 9.00 228.60 21.00 533.40

.62 15.75 2.00 50.80 9.50 241.30 22.00 558.80

.81 20.57 2.25 57.15 10.00 254.00 23.00 584.20

1.00 25.40 2.50 63.50 10.50 266.70 24.00 609.60

1.12 28.45 3.00 76.20 11.00 279.40 28.50 722.90

1.25 31.75 5.00 127.00 11.50 292.10 34.00 863.60

NOTES:

1. Unless otherwise specified, tolerance is ±.06 (1.52 mm).

2. Two identical specimens shall be mounted on the panel provided there is a minimum separation of 3.00 inches

(76.20 mm) when the indicated 10.00 inches (254.00 mm) centers are used (total weight not to exceed 40

pounds).

3. In the event that the requirement of note 2 can be met, but is desired to test only one specimen, a

counterbalance of approximately the same weight shall be mounted in a corresponding position on the

opposite side of the panel. Mounting dimensions for the counterbalance shall be the same as for the

specimen.

4. In the event that the requirement of note 2 cannot be met, the specimen shall be mounted centrally on the

panel; if the individual specimen weight is in excess of 20 pounds, the panel shall be reinforced as indicated on

figure 4B.

5. Specimens too large to be tested on this panel shall utilize the panel indicated on figure 4B.

6. If the depth of the specimen is such that the minimum clearance of 1.00 inch (25.40 mm) cannot be

maintained, the specimen shall be turned around so that the front faces the anvil plate.

FIGURE 4A. Standard mounting fixtures for electrical-indicating switchboard meters

and other panel-mounted parts - Continued.

北测（上海）电子科技有限公司

联系方式：xuyj@beice-sh.com 13917165676

MIL-STD-202-207

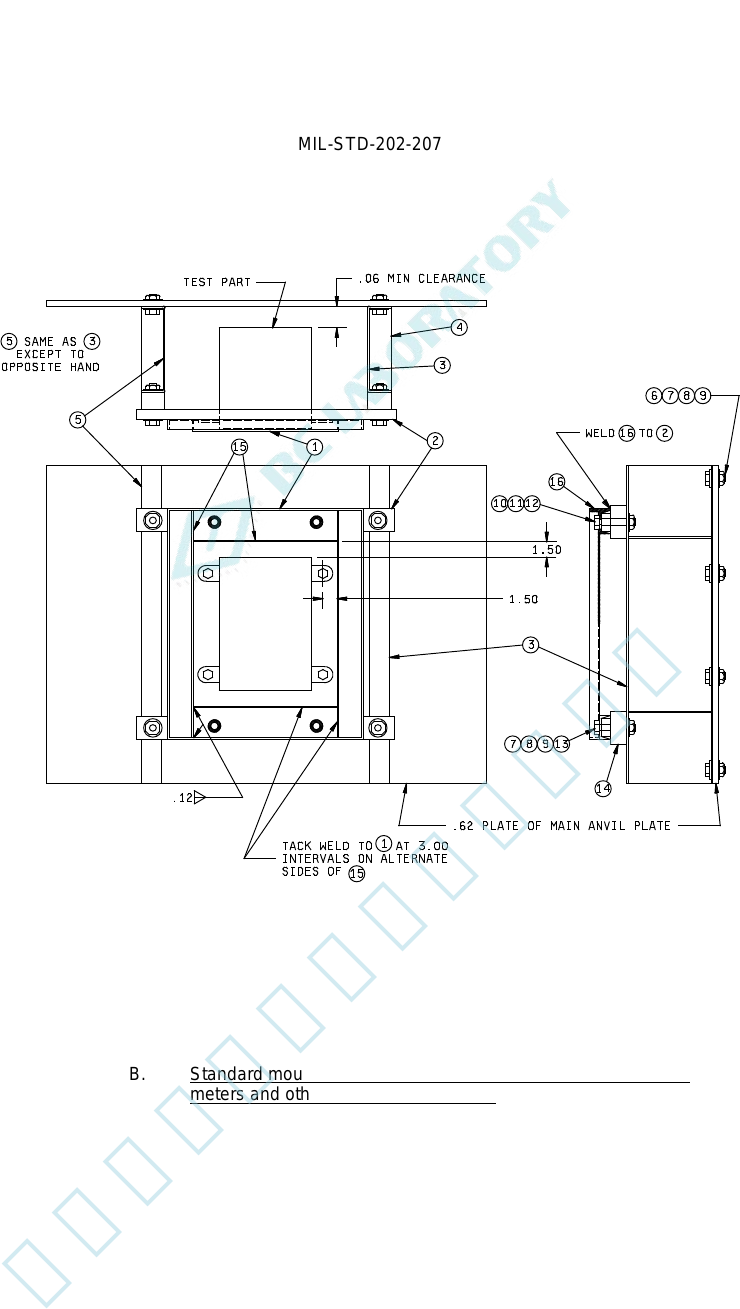

FIGURE 4B. Standard mounting fixtures for electrical-indicating switchboard

meters and other panel-mounted parts.
