MIL-STD-202-211

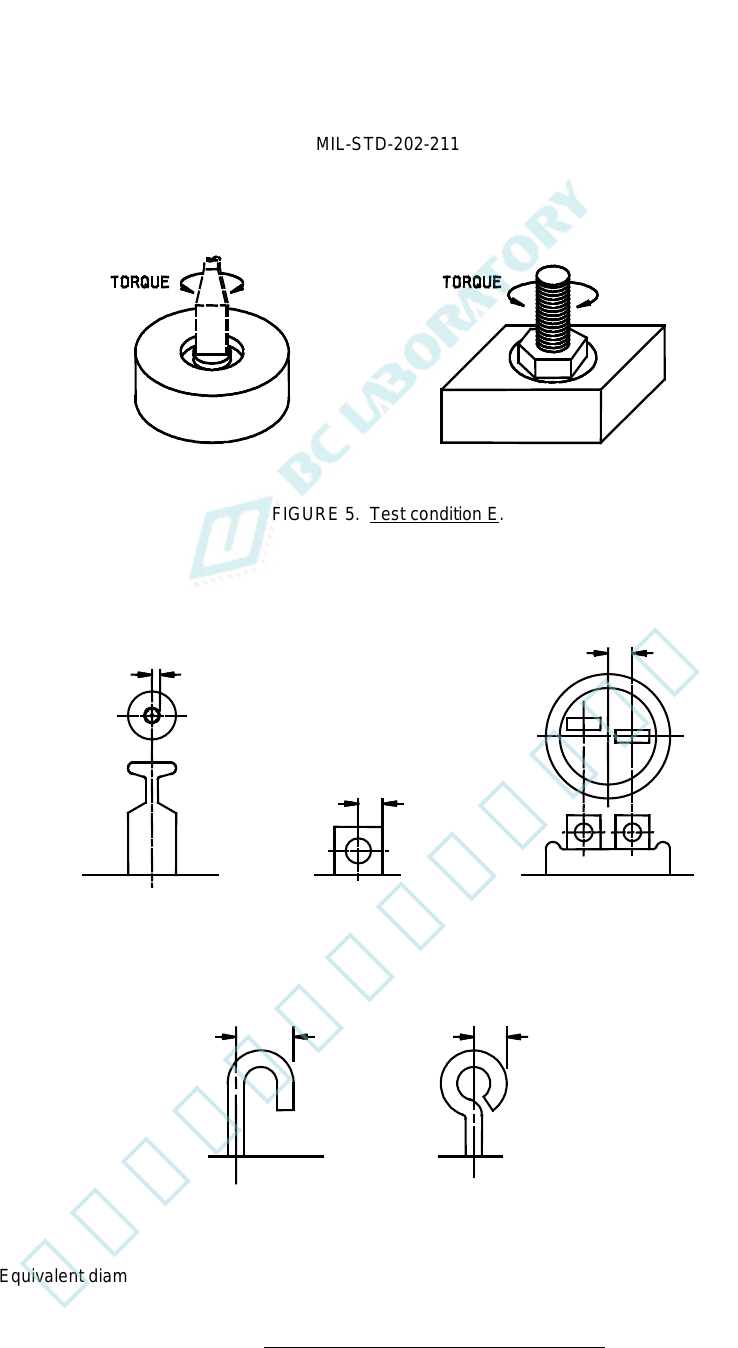

FIGURE 5. Test condition E.
NOTE: Equivalent diameter is twice the distance between the lines indicated by the arrows.
FIGURE 6. Method of determining equivalent diameter.
6
北测（上海）电子科技有限公司
联系方式：xuyj@beice-sh.com 13917165676
MIL-STD-202-211
5. DETAILED REQUIREMENTS
5.1 Measurements. Measurements to be made before and after the test, as applicable, shall be as specified in the
individual specification.
5.2 Summary. The following details are to be specified in the individual specification:
a. Test condition letter(s) (see 4.2).
b. If test condition letter A is specified:
(1) If pertinent, the method of holding or clamping (see 4.2.1.1).
(2) Whether applied force shall be 1/2, 1, 2, 3, 5, 10, or 20 pounds (see 4.2.1.2).
c. If test condition letter B is specified:
(1) If critical, the method of bending and fixture required (see 4.2.2.2).
(2) Whether number of bends shall be 2 or 5 (see 4.2.2.3).
d. If test condition letter C is specified:
(1) Whether the load shall be 1/4, 1/2, 1, 5, or 10 pounds (see 4.2.3.1).
e. If test condition letter E is specified:
(1) Torque to be applied to non-wire, rigid-type terminals when equivalent diameter is
greater than 1/2 inch (see 4.2.5.4).
f. Measurements before and after test, as applicable (see 5.1).
6. NOTES
(This section contains information of a general or explanatory nature that may be helpful, but is not mandatory.)
6.1 Supersession data. The main body and 38 parts of this revision of MIL-STD-202 replace superseded MIL-STD-
202.
Custodians: Preparing activity:
Army - CR DLA – CC
Navy - EC
Air Force - 85 (Project 59GP-2015-025)
DLA - CC
Review activities:
Army - AR, AT, AV, CR4, MI, SM, TE
Navy - AS, OS, SH
Air Force - 19, 99
NSA - NS
NOTE: The activities listed above were interested in this document as of the date of this document. Since
organizations and responsibilities can change, you should verify the currency of the information above using the
ASSIST Online database at https://assist.dla.mil/
7
北测（上海）电子科技有限公司
联系方式：xuyj@beice-sh.com 13917165676
INCH-POUND
MIL-STD-202-212
18 April 2015
SUPERSEDING
MIL-STD-202G
w/CHANGE 2 (IN PART)
28 June 2013
(see 6.1)
DEPARTMENT OF DEFENSE
TEST METHOD STANDARD
METHOD 212, ACCELERATION
AMSC N/A FSC 59GP
