MI L - S TD - 202 - 207 FIGURE 4A. S t andar d m ount i ng f i x t ur es for ele ctrical - indicat ing switchboa rd meters and ot her pane l - m ounted part s . 6 北测（上海）电子科技有限公 司 联系方式：xuyj@beice-sh.com 13917165676
MIL-STD-202-207
Inches mm Inches mm
.62 15.75 17.00 431.80
.81 20.57 24.00 609.60
6.00 152.40 34.00 863.60
9.00 228.60 48.00 1,219.20
13.00 330.20
NOTE: Unless otherwise specified, tolerances are ±.06 (1.52 mm).
FIGURE 3. Anvil plate of shock-testing apparatus.
5
北测（上海）电子科技有限公司
联系方式：xuyj@beice-sh.com 13917165676
MIL-STD-202-207

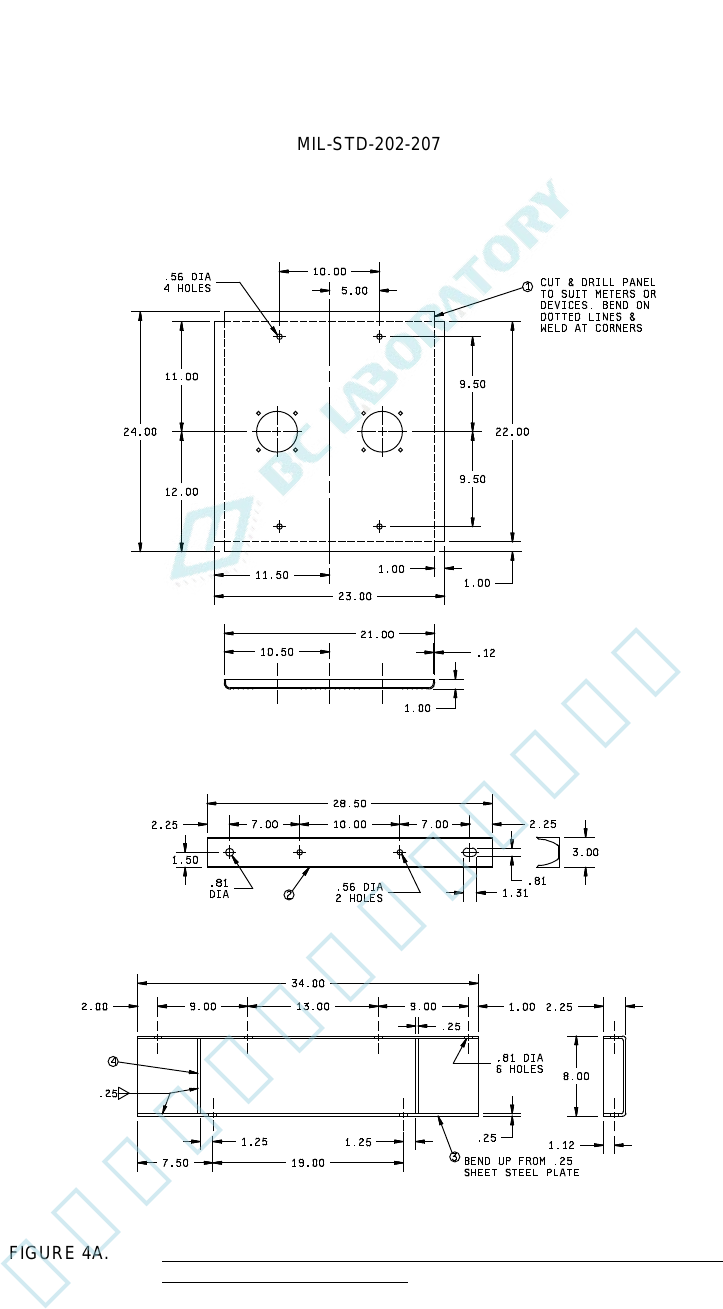

FIGURE 4A. Standard mounting fixtures for electrical-indicating switchboard meters
