MI L - S TD - 202 - 207 Item D e s c r ip t i on M at er i al Q uan tity 1 / 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Pan el Stan dar d c hann el , 3 x 5 pound Fabr i c at e d s pac er Spa c er s t i f f en er Fabr i c at …
MIL-STD-202-207
FIGURE 4B. Standard mounting fixtures for electrical-indicating switchboard
meters and other panel-mounted parts - Continued.
10
北测（上海）电子科技有限公司
联系方式：xuyj@beice-sh.com 13917165676
MIL-STD-202-207
Item
Description
Material
Quantity 1/
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Panel
Standard channel, 3 x 5 pound
Fabricated spacer
Spacer stiffener
Fabricated spacer
Hex head bolt, .750-10UNC-2A x .75 lg
Hex head nut, .750-10UNC-2B
Washer, 2.00 OD x .18 ID
Washer, 1.38 OD x .18 ID
Hex head bolt, .500-13UNC-2A x 1.00 lg
Hex head nut, .500-13UNC-2B
Washer, 1.38 OD x .56 ID
Hex head bolt, .750-10UNC-2A x 4.00 lg
Spacer block
Strap, .12 x 1.00
Block, 2.25 x 21.25
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
1
2
1
4
1
8
12
12
12
4
4
4
4
4
4
4
1/ Quantities are for one mounting.
Inches mm Inches mm Inches mm Inches mm
.06 1.52 1.12 28.45 4.00 101.60 12.50 317.50
.12 3.05 1.31 33.27 4.50 114.30 13.00 330.20
.18 4.57 1.38 35.05 5.00 127.00 14.00 355.60
.25 6.35 1.50 38.10 7.00 177.80 15.00 381.00
.56 14.22 1.75 44.45 8.00 203.20 21.00 533.40
.62 15.75 2.00 50.80 9.00 228.60 21.25 539.75
.75 19.05 2.25 57.15 10.00 254.00 23.00 584.20
.81 20.57 3.00 76.20 10.50 266.70 25.00 635.00
1.00 25.40 3.50 88.90 11.50 292.10 28.00 710.20
30.00 762.00
34.00 863.60
NOTES:
1. Unless otherwise specified, tolerance is ±.06 (1.52 mm).
2. This panel shall not be used if the panel indicated on figure 4A is applicable.
3. The spacer blocks, item 14, shall be used only when necessary to maintain a minimum clearance of 1.00
inch (25.40 mm) between the specimen and the anvil plate.
4. In the event that the depth of the specimen is such that the minimum clearance of 1.00 inch (25.40 mm)
cannot be maintained, the spacer blocks shall be removed and the specimen mounted with the front surface
toward the anvil plate.

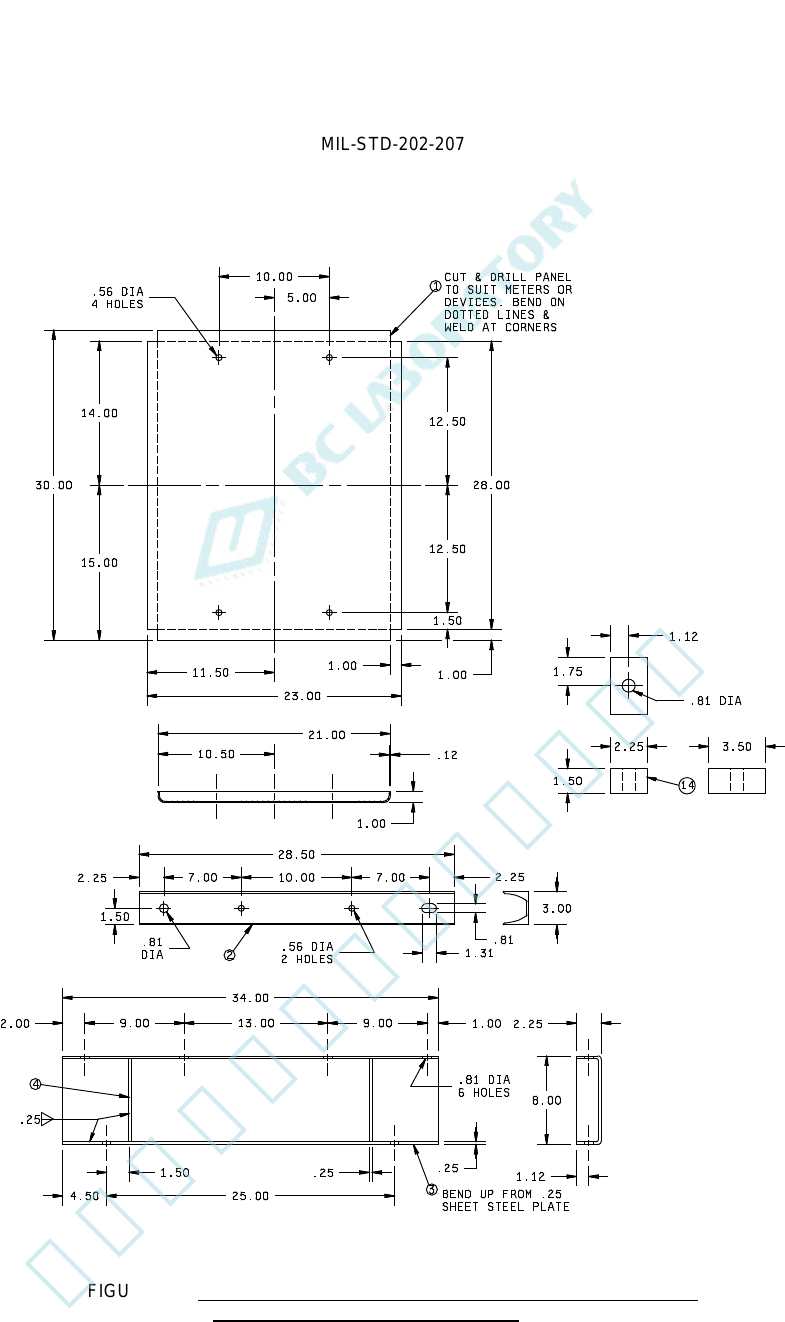

FIGURE 4B. Standard mounting fixtures for electrical-indicating switchboard meters
and other panel-mounted parts - Continued.
11
北测（上海）电子科技有限公司
联系方式：xuyj@beice-sh.com 13917165676
MIL-STD-202-207
1/ Quantities are for one mounting.
2/ The size of the auxiliary mounting plate shall be increased to .50 x 36.00 x 34.00 for panels No. 5 and No. 6
listed in table II.

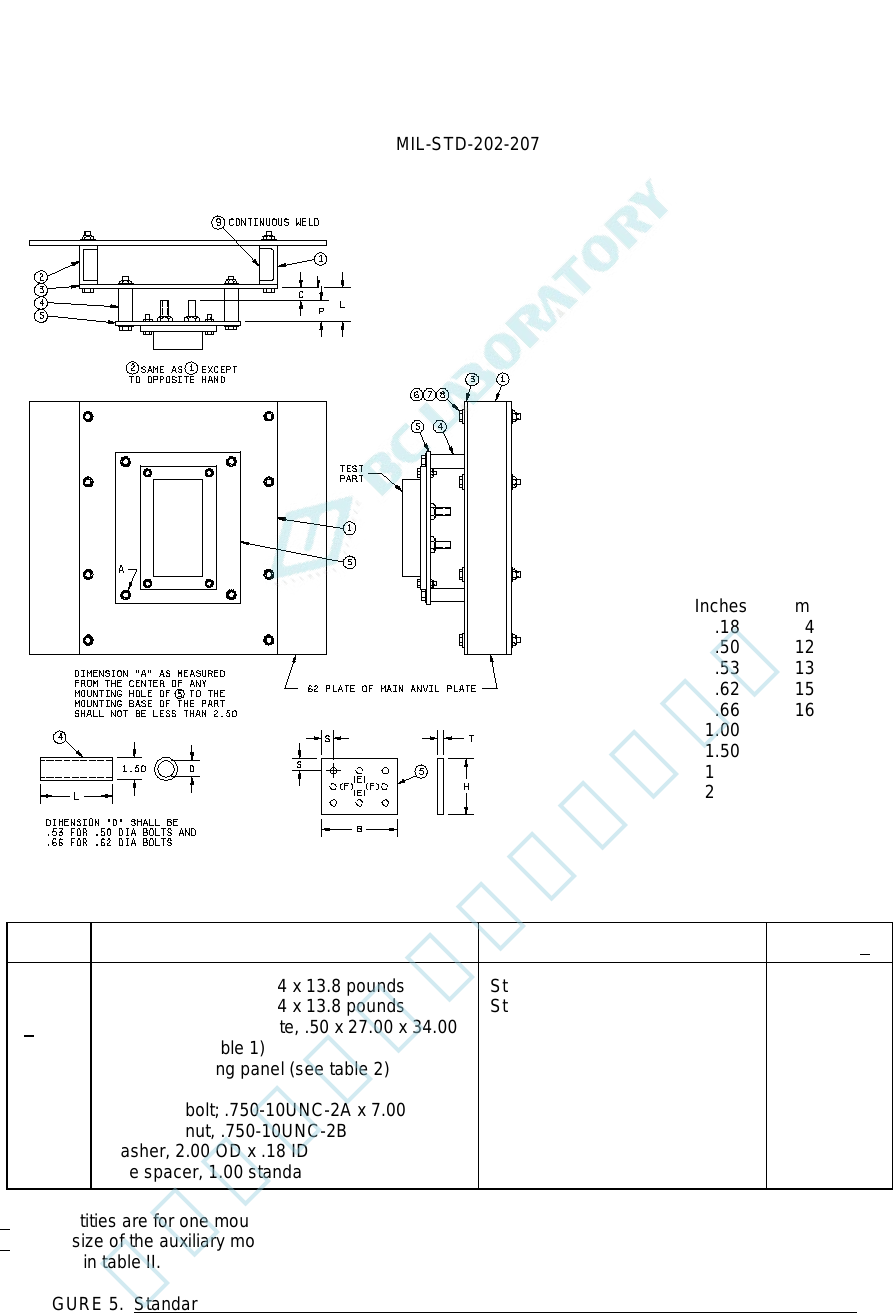

FIGURE 5. Standard mounting fixtures for electrical controller parts (contractors, relays, resistors, etc.).
Inches mm
.18 4.57
.50 12.70
.53 13.46
.62 15.75
.66 16.76
1.00 25.40
1.50 38.10
1.94 49.28
2.00 50.80
2.50 63.50
7.00 177.80
27.00 685.80
34.00 863.60
36.00 914.40
Item
Description
Material
Quantity 1/
1
2
2/ 3
4
5
6
7
8
9
Car building channel, 4 x 13.8 pounds
Car building channel, 4 x 13.8 pounds
Auxiliary mounting plate, .50 x 27.00 x 34.00
Spacer (see table 1)
Plastic mounting panel (see table 2)
Hex head bolt; .750-10UNC-2A x 7.00 lg
Hex head nut, .750-10UNC-2B
Washer, 2.00 OD x .18 ID
Pipe spacer, 1.00 standard, 1.94 lg
Steel
Steel
Steel
Steel
Plastic, laminated, type FBG, in
accordance with MIL-I-24768/14
Steel (heat-treated)
Steel
Steel
Steel
1
1
1
8
8
16
8
12
