MI L - S TD - 202 - 217 A. U ni t under t es t . B. H ol d i ng f i x t ur e. C . H ol di ng s pr i ng. D . A ngl e i n di c at or a nd adjustment. E . H ol d i ng and dr op ping pin. F . D r opp i ng a rm. F I G URE 3 .…
MIL-STD-202-217
ACCEPTANCE CRITERIA: Each unit tested shall meet the acceptance.

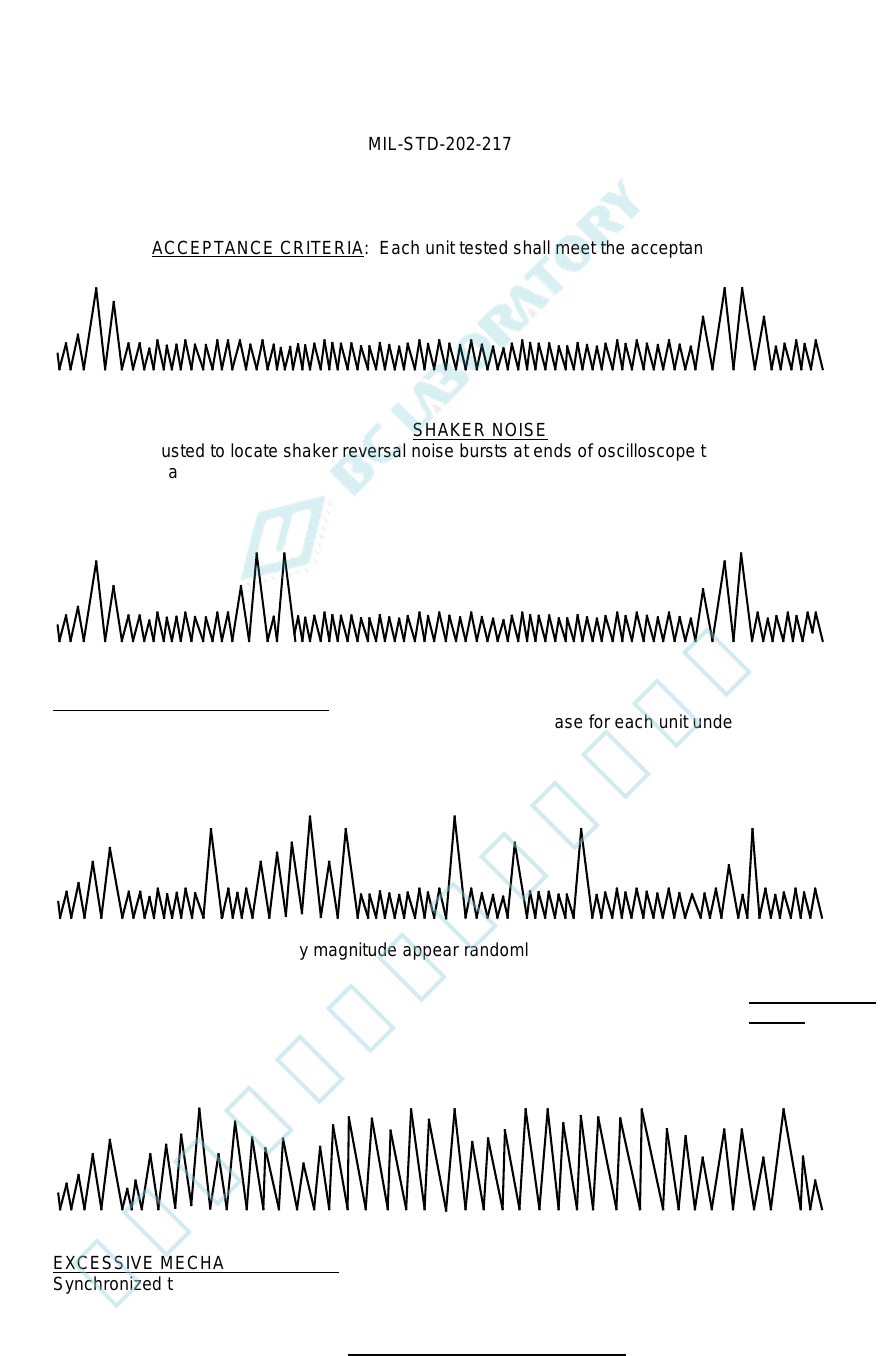

SHAKER NOISE
Timebase adjusted to locate shaker reversal noise bursts at ends of oscilloscope trace. Test unit
not mounted. a
INHERENT MECHANICAL NOISE
Synchronized spike may appear at different locations on time base for each unit under test. b
Non-synchronized spikes of any magnitude appear randomly and may disappear as test progresses. Unit
is rejectable. c
EXCESSIVE MECHANICAL NOISE
Synchronized trace masks more than 50% of oscilloscope trace. Unit is rejectable. d
FIGURE 2. Representative oscilloscope traces.
PARTICULATE
NOISE
5
北测（上海）电子科技有限公司
联系方式：xuyj@beice-sh.com 13917165676
MIL-STD-202-217

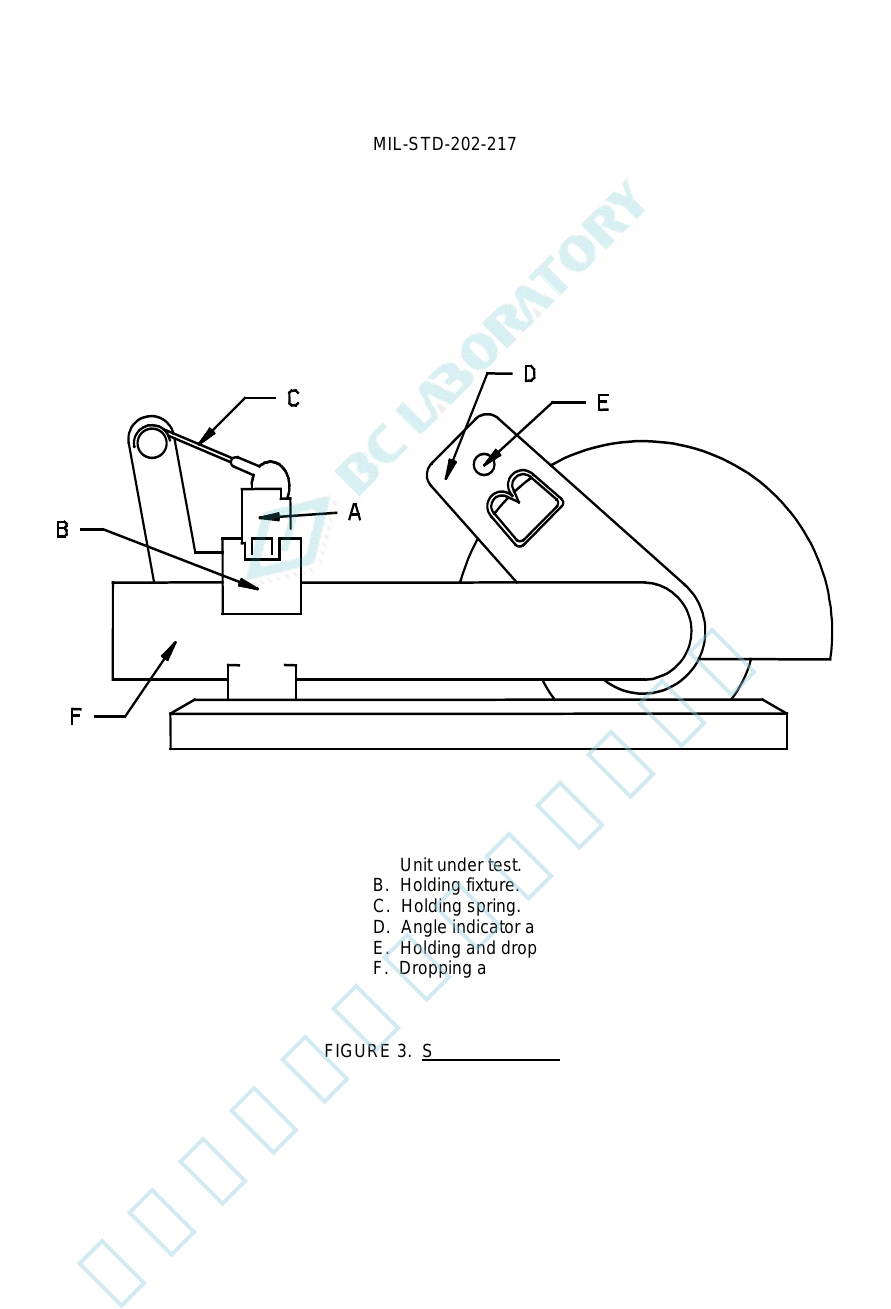

A. Unit under test.
B. Holding fixture.
C. Holding spring.
D. Angle indicator and adjustment.
E. Holding and dropping pin.
F. Dropping arm.
FIGURE 3. Shock test fixture.
6
北测（上海）电子科技有限公司
联系方式：xuyj@beice-sh.com 13917165676
MIL-STD-202-217
6. NOTES
