4022 591 96082 User Re ference Manual 02.02 FCM Multiflex 5-17 MIS • An auto retry is a re try without operat or i n terv en tion ( aut omatic); the maximum all ow ed n umber o f au to r etries is determined in th e a ct…
MIS
User Reference Manual 4022 591 96082
5-16 FCM Multiflex 02.02
fcm0519a.tif

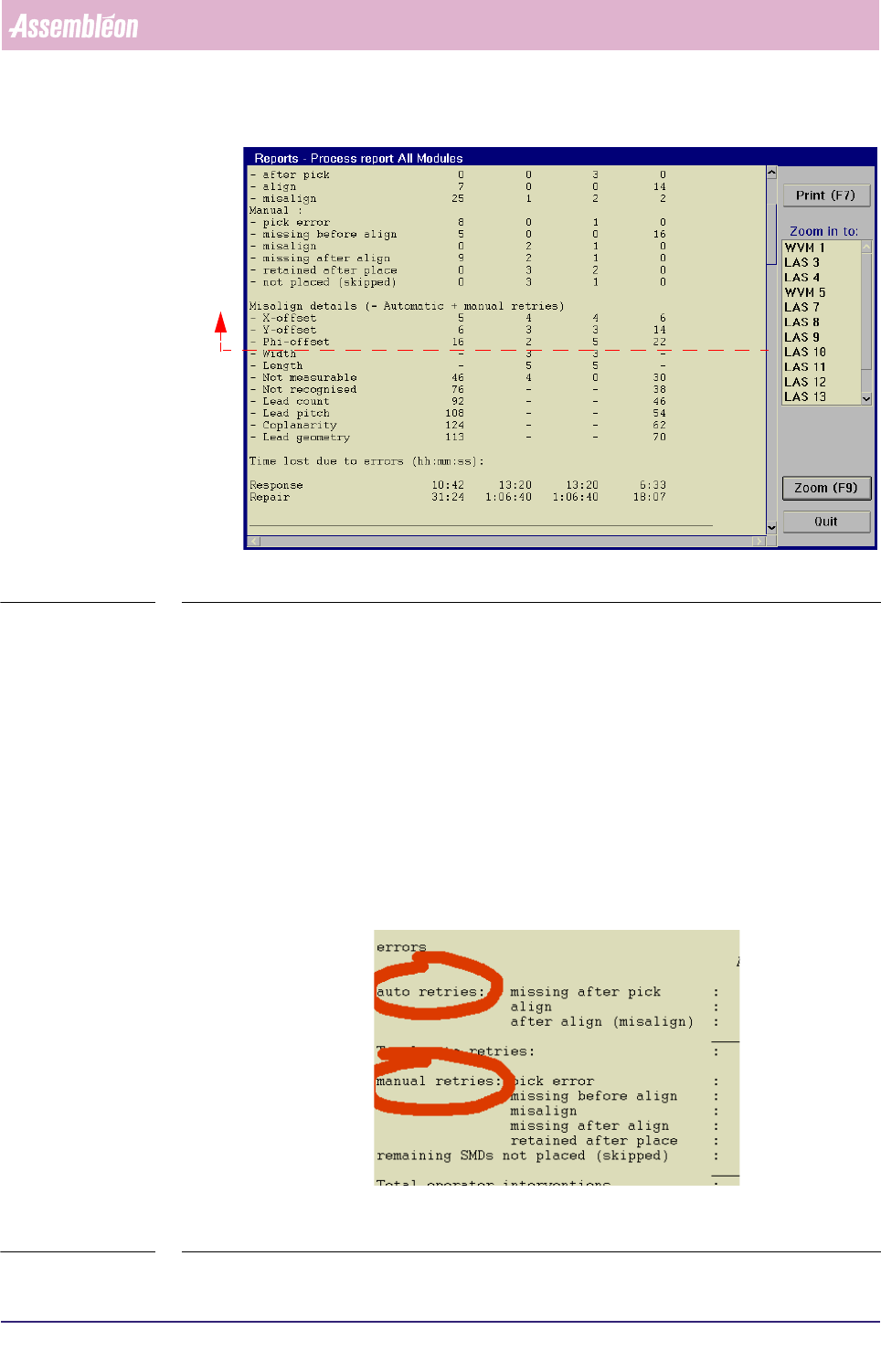

SCREEN 5-12 [Process report...] screen example, part 2
✱✱ Detailed Information
▼ Displayed Information
The [Process report...] report gives a textual overview of the process errors.
They can either be displayed for all placement modules or for a specific
placement module.
On first entry, the report displays an overview on all (used) placement modules
(see 5.3.2.5 and SCREEN 5-12).
The process errors are divided into auto retries and manual retries
(see SCREEN 5-13).
fcm0516a.tif
SCREEN 5-13
see previous screen
4022 591 96082 User Reference Manual
02.02 FCM Multiflex 5-17
MIS
• An auto retry is a retry without operator intervention (automatic); the
maximum allowed number of auto retries is determined in the action spec,
see SCREEN 5-13.
• A manual retry is a retry by operator intervention. After the FCM Multiflex
has reached the auto retry number limit, it stops, and manual retries may be
done by the operator then. Note that only those manual retries are taken
into account for the
[Process report...] report that were successful at first
attempt.
fcm0517a.eps
SCREEN 5-14 Action spec setting of the maximum number of auto pick retries (refires)
FEEDER 1 1 T8-M/4 T 333-222-112 SOD-80
COMMENT index coordinates are relative to pipette origin
COMMENT indx/brd /refholex/refholey/board_x /board_y
INDEX 1 3 -75.500 294.250 -81.500 138.000
INDEX 1 4 74.500 294.250 68.500 138.000
INDEX 2 3 4.500 294.250 -1.500 138.000
COMMENT pick coordinates are relative to pipette origin
COMMENT fd/pk/psh/rfr/pick_x /pick_y /pick_phi/na/prf/arf/ale/ple
PICK 1 1 1 2 19.000 77.000 90.0 1 75 55 80 80
COMMENT: In case a deviating dump position is needed enter
COMMENT: DUMP position_x position_y
COMMENT mount coordinates are in board coordinates
in this example, the number of auto(matic)
pick retries (or
refires
) is set to 2
rfr = refires
MIS
User Reference Manual 4022 591 96082
5-18 FCM Multiflex 02.02
fcm0520a/0521a.tif

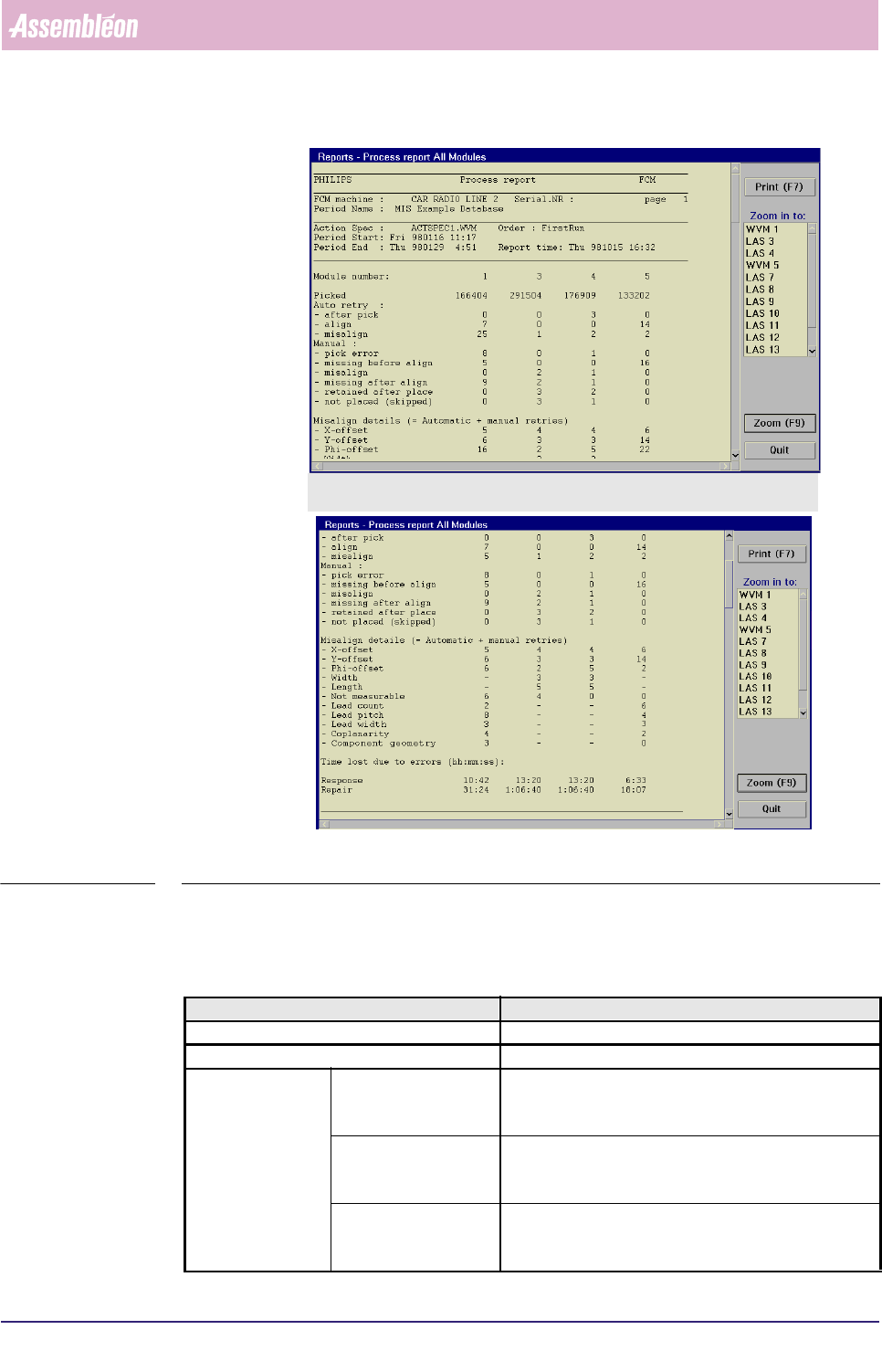

SCREEN 5-15 [Process report...], All modules screen example
Report text explanation, All modules option
See screen example SCREEN 5-15
Report text Explanation
Module number the numbers of the used placement modules
Picked total numbers of picked SMDs
Auto retry after pick total number of automatic pick retries per place-ment
module that occurred after SMD was missing
immediately after pick action
align total number of automatic pick retries per place-ment
module that occurred after SMD was miss-ing upon
starting the align action (WVM only)
misalign total number of automatic pick retries per place-ment
module that occurred after SMD could not properly be
aligned
