Pr oduc t Ch ang e Ov er User Re f eren ce Manu al 4022 591 960 82 6-14 FCM M ult ifle x 02.02 6.3 Manua l Select Calibration File (Producing with Pr e vious Calibration File) If the carriers used where calib r ated prev…
4022 591 96082 User Reference Manual
02.02 FCM Multiflex 6-13
Product Change Over
REFPIN
There is one line for the reference pin position. This position is for the range of
production boards from 0.0 to 390.0 mm in Y. The reference position in Y is 36.0
mm. When there is no value in the Action spec this value is used. This value is also
used when the checkbox “use default” is checked.
It is possible to enter default positions for 5 production board ranges in Y. Just add
a new line REFPIN and fill in the values for the range and the Y-position.
It is recommended to enter correct values in the Action spec, these values are then
used during calibration.
STRIP
Standard, there are two lines that work the same way as the lines DEFAULT.
However these values are only used when the checkbox “Use fixed alternatives” is
checked.
The values that are set in the initial files are made for customers who use the
carrier-kit. For production boards between 87.0 mm and 101.5 mm in Y the rear
calibration strip can interfere with the reference pin.
It is possible to enter default positions for 5 production board ranges in Y. Just add
a new line STRIP and fill in the values for the range and front and rear strip
position. Also add how the positions are measured (NS, from the rear (north) edge
and from the front (south) edge or SS, both from the front (south) edge).
NOTE: Strip positions are initially given by “DEFAULT” lines. The “STRIP” lines
only apply if the user has checked “Use fixed alternatives”
NOTE: Lines may be absent, in this case the following will be used if the board
width (Y) is out of range:
• “DEFAULT” present: default position
• “DEFAULT” absent: 23
Ranges are inclusive <lower> and exclusive <upper> boundary
Product Change Over
User Reference Manual 4022 591 96082
6-14 FCM Multiflex 02.02
6.3 Manual Select Calibration File
(Producing with Previous Calibration File)
If the carriers used where calibrated previously it is possible use that previous cali-
bration file instead of performing a Multiflex calibration.

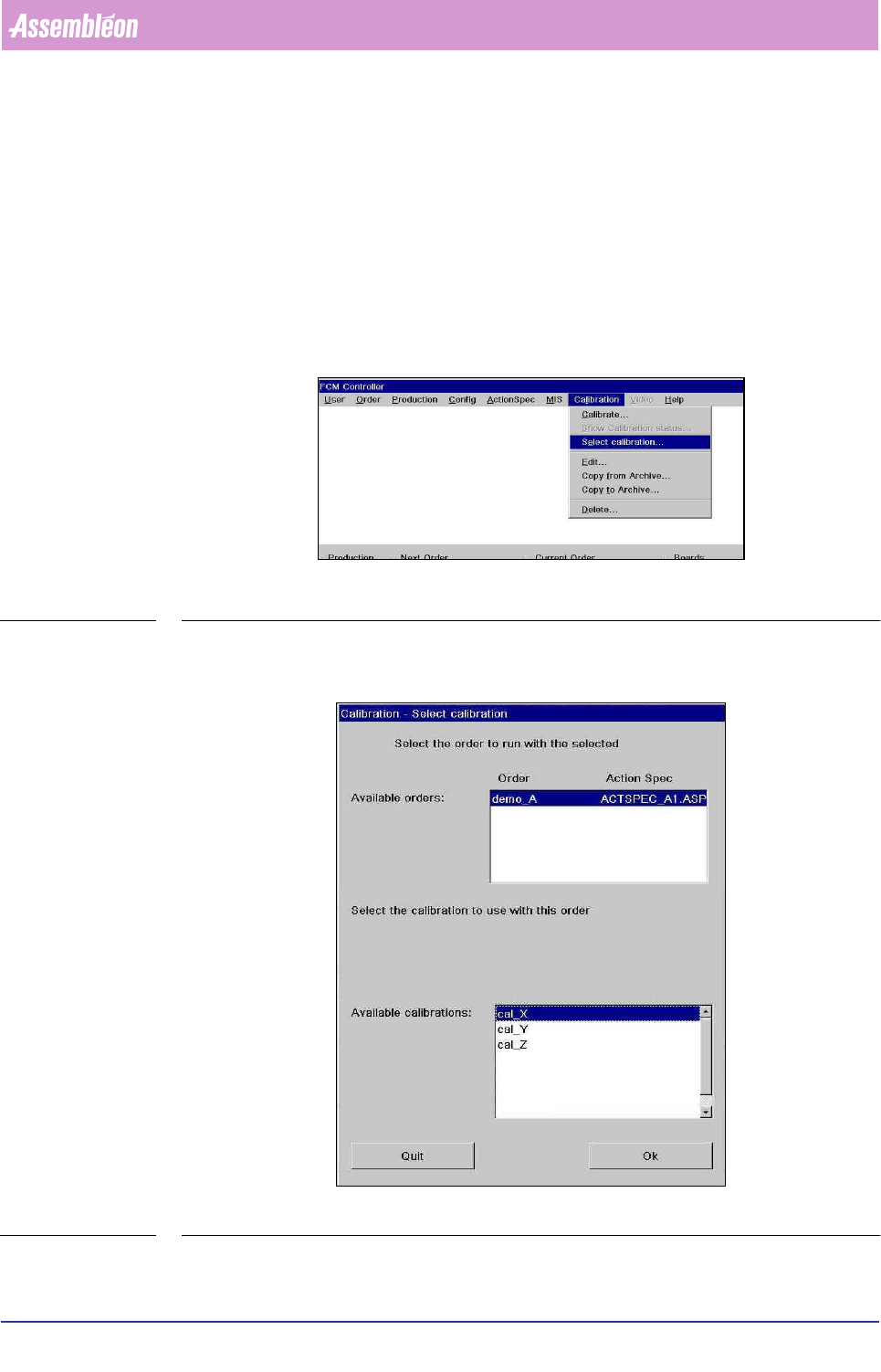

Go to
ÍCalibration ÍSelect calibration…
SCREEN 6-5
Screen appears.
SCREEN 6-6
In this dialog a suitable calibration set can be chosen for the order to be used.
4022 591 96082 User Reference Manual
02.02 FCM Multiflex 6-15
Product Change Over
■ Select the order which is going to be used for the next production run.
■ In the available calibrations list all suitable calibrations for the selected order
are shown. Suitable calibrations are calibrations that have the same values in
the action spec of the order of the following items:
1. position of the run-in stopper
2. index scheme
3. board width
4. board length
5. position of the reference pins
6. position of the positioning pins
7. configuration of FCM (CLM, WVM)
The calibrations shown in the color red are calibrations which where executed with
the CLC (closed loop calibration)
After this calibration selection all the ‘calibration required’ indications in the order
schedule are updated to the selected calibration.
