General Safety Rules
User Reference Manual 4022 591 96082
1-4 FCM Multiflex 02.02

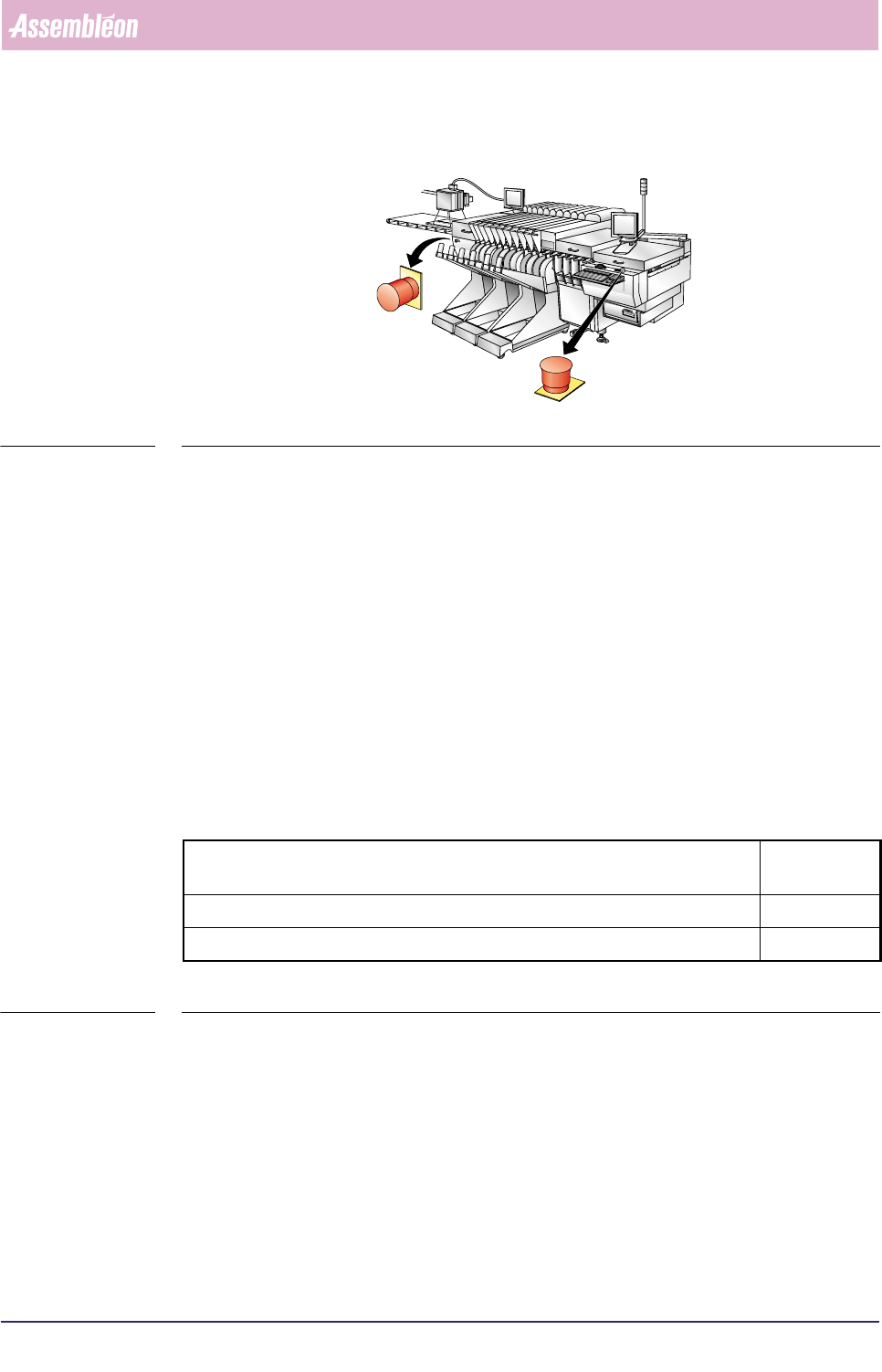

FIGURE 1-2 Emergency buttons
1.7 ESD Precautionary Measures
■ All printed circuit boards that are part of the FCM Multiflex must be transported
and stored in ESD-protected bags.
■ Any person handling an FCM Multiflex printed circuit board must adequately be
earthed - e.g. by means of a bracelet with earth cable - to prevent destructive
electrostatic discharge through the printed circuit board.
■ In areas that are not ESD protected, the removable protective covers must be
mounted on all placement modules.
■ Handling of FCM Multiflex printed circuit boards should be restricted as much as
possible.
■ Repairs to various printed circuit boards must be carried out in an ESD-protected area.
1.8 Noise level
TABLE 1-2
1.9 Liability
Assembléon will not be liable for any costs, damages or personal injuries if the FCM
Multiflex is not used according to the safety rules given in this chapter.
1.10 Location of the Operating Manual
The operating manual must be located close to the FCM Multiflex. This enables
users to have easy access to the relevant section.
Average sound-pressure level measured at 3 operator positions at height = 1.5 m
and distance = 1 m
≤ 79 dB(A)
Sound pressure at operator’s position ≤ 78 dB(A)
Average environmental noise level during measurement 53 dB(A)
4022 591 96082 User Reference Manual
02.02 FCM Multiflex 2-1
Purpose of the User Reference Manual
CHAPTER 2 Purpose of the User Reference Manual
2.1 Introduction
This manual gives information (at Supervisor and Maintenance level) for additional
machine operations that are not described in the Operating or Service Manual.
It cannot be used as complete work instruction but only as reference book.
Service Manual describes mainly:
1. System.
2. Repairs.
3. Spare parts.
4. Calibration/adjustments.
5. Preventive maintenance.
Purpose of the User Reference Manual
User Reference Manual 4022 591 96082
2 - 2 FCM Multiflex 02.02
Operating Manual describes workflow for normal production.
User Reference Manual describes:
1. General use of User Interface & configuring modules on FCM.
2. Mount program.
3. MIS.
4. Advanced handling during Product Change Overs & order scheduling.
5. SVS configuration & second sources
FIGURE 2-1
Switch-On
Procedure
Running
Production
Error
Handling
Start
Production
Procedure
Off Line
Preparation
New
Program
Selection
Current
Program
Selection
Pre-Start
Inspections
Same
Production?
Error?
Shut-Down
Procedure
Yes
Yes
No
Yes
No
No
Stop
Production?
Stop
Production
Shut down?
Yes
No
