MIS User Re ference Manual 4022 5 91 96082 5-38 F CM Mult ifl ex 02.02 Grap h explanation, Specifi c WVM module, M isalign err ors option fcm0 536a / 0537 a.ti f SCREE N 5-3 0 [Proc ess g r aph. ..] Sp eci fic WVM modu l…
4022 591 96082 User Reference Manual
02.02 FCM Multiflex 5-37
MIS
TABLE 5-16
Graph legend Explanation
Offset X total number of automatic and manual pick retries
per feeder with the cause:
the measured X-offset exceeded the X reject level
as specified in the SMD info file
Y total number of automatic and manual pick retries
per feeder with the cause:
the measured Y-offset exceeded the Y reject level
as specified in the SMD info file
Phi total number of automatic and manual pick retries
per feeder with the cause:
the measured Phi-offset exceeded the Phi reject
level as specified in the SMD info file
Unmeas. total number of automatic and manual pick retries
per feeder with the cause:
unmeasureable, due to laser errors that occurred
during the align measurement (e.g. laser dirty
error)
MIS
User Reference Manual 4022 591 96082
5-38 FCM Multiflex 02.02
Graph explanation, Specific WVM module, Misalign errors option
fcm0536a/0537a.tif

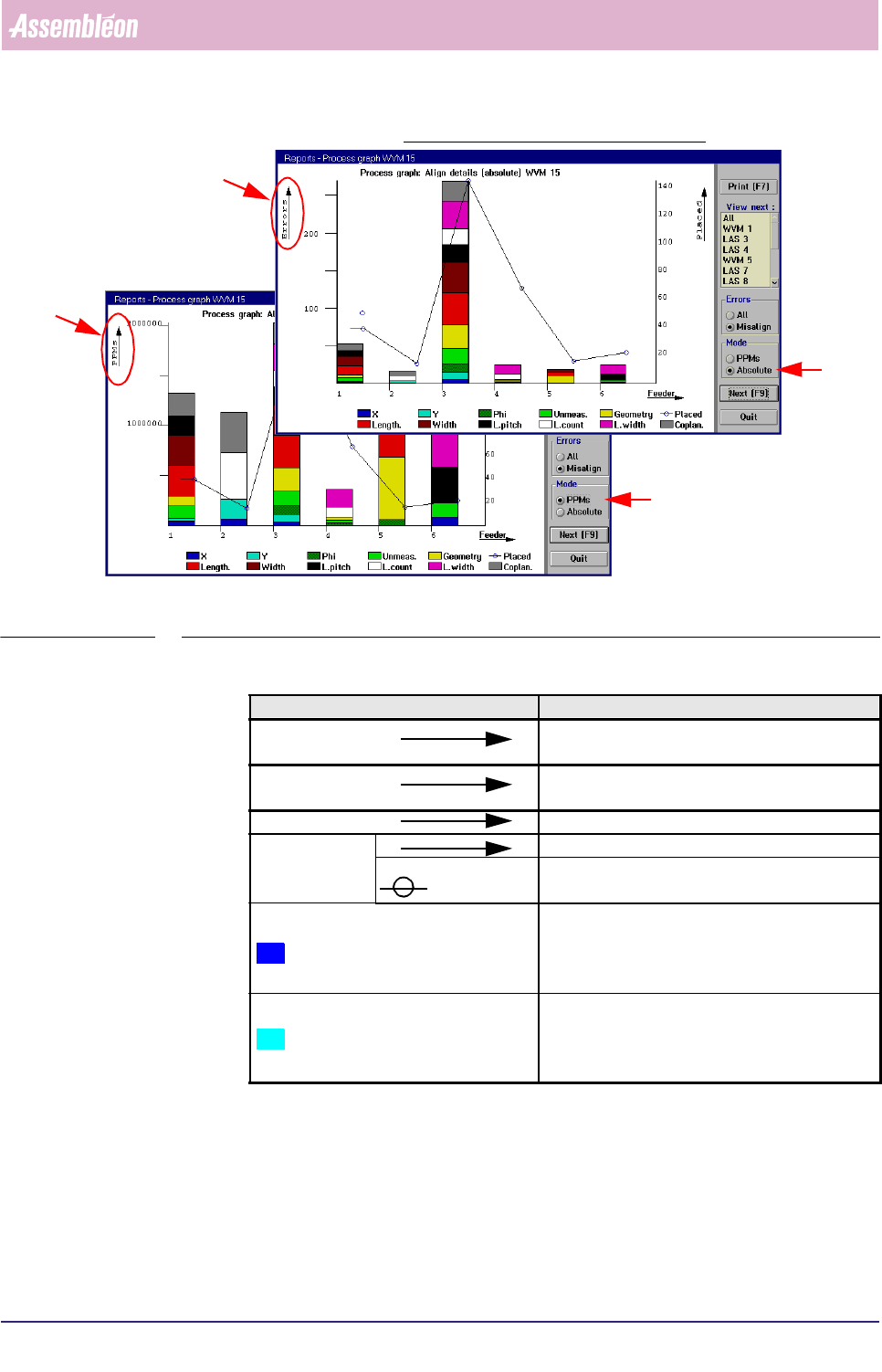

SCREEN 5-30 [Process graph...] Specific WVM module, Misalign errors screen examples
Graph legend Explanation
Errors scale for number of errors (in Absolute mode
only)
PPMs scale for number of errors per million SMDs (in
PPMs mode only)
Mod. no. position numbers of the used feeders
Placed scale for total number of placed SMDs
total number of placed SMDs per feeder (blue
circle)
X total number of automatic and manual pick
retries per feeder with the cause:
the measured X-offset exceeded the X reject
level as specified in the SMD info file
Y total number of automatic and manual pick
retries per feeder with the cause:
the measured Y-offset exceeded the Y reject
level as specified in the SMD info file
4022 591 96082 User Reference Manual
02.02 FCM Multiflex 5-39
MIS
TABLE 5-17
Graph legend Explanation
Phi total number of automatic and manual pick retries per feeder
with the cause:
the measured Phi-offset exceeded the Phi reject level as
specified in the SMD info file
Unmeas. total number of automatic and manual pick retries per feeder
with the cause:
the vision system was unable to find all SMD sides within the
camera’s field of view
Geometry total number of automatic and manual pick retries per feeder
with the cause:
the vision system detected that the leads on the North and
South, respectively the East and West side of the SMD are not
exactly opposite each other (for SMDs with leads on all 4 sides
only)
Length total number of automatic and manual pick retries per feeder
with the cause:
the vision system detected that the SMD’s length is out of
tolerance (for SMDs without leads only)
Width total number of automatic and manual pick retries per feeder
with the cause:
the vision system detected that the SMD’s width is out of
tolerance (for SMDs without leads only)
L.pitch total number of automatic and manual pick retries per feeder
with the cause:
the vision system detected that the distance between all indi-
vidual leads on one (or more) sid(s) of the SMD is not within
the required toler-ance
L.count total number of automatic and manual pick retries per feeder
with the cause:
the vision system detected that the number of leads measured
on the North and South side, respectively the East and West
side of the SMD are not the same
L.width total number of automatic and manual pick retries per feeder
with the cause:
the vision system detected that the SMD’s lead width is out of
tolerance (only for asymmetric SMDs with only one lead at
one side, as “lead pitch” does not exist in this case)
Coplan. total number of automatic and manual pick retries per feeder
with the cause:
the vision system detected that not all individual leads on one
(or more) side(s) of the SMD is (are) positioned in-line (i.e.
leads bent)
