Product Change Over

User Reference Manual 4022 591 96082

6-6 FCM Multiflex 02.02

FIGURE 6-4

New strip

mount postions

are known?

Adjusting the

mounting tool

Determine strip positions, consider

interference with:

reference pins (temperature pins)

support pins

positioning pins

shape of the board

front strip on

alternative

postion?

rear strip on

alternative

postion?

both strips on

alternative

postions?

Yes

No No

Yes

End

adjusting the

mounting tool

Follow standard strip

mount procedure

described in the

operator manual

1. Determine strip position. (rear

edge to centre of strip, positions

between 23 and 55 mm are not

possible)

2. Put support slide between

adjustable slide and fixed slide

3. Position the adjustable slide on

the determined strip position,

measure from the inside edge of

the support slide to centre of the

strip on the support slide

4. Lock the adjustable slide and the

support slide

Continue with standard strip

mounting procedure, only push the

board against the adjustable slide

instead of using both the fixed and

the adjustable slide and put the rear

strip on the support slide

1. Determine strip position. (front

edge to centre of strip, positions

between 23 and 55 mm are not

possible)

2. Put support slide between

adjustable slide and fixed slide

3. Position the support slide on the

determined strip position,

measure from the inside edge of

the fixed slide to centre of the

strip on the support slide

4. Lock the support slide

Continue with the standard strip

mounting procedure, only push the

board against the fixed slide

instead of using both the fixed and

the adjustable slide and put the

front strip on the support slide

first follow the

instruction for front

strip mounting on

alternative position

End

adjusting the

mounting tool

End

adjusting the

mounting tool

Mount the front strip

on all the calibration

boards

Mount the rear strip

on all the calibration

boards

Follow the

instruction for rear

strip mounting on

alternative position

End

adjusting the

mounting tool

Fixed slide

Adjustable slide

Support slide

Fixed slide

Adjustable slide

Support slide

Check the distance between the

middle of the rear strip and and the

rear side of the board, write this

distance down, this is S

Check the distance between the

middle of the front strip and and the

front side of the board, write this

distance down, this is S

Always keep the distance between front

and rear strip as large as possible

42.13 mm

44.51 mm

ON/

OFF

ON/

OFF

4022 591 96082 User Reference Manual

02.02 FCM Multiflex 6-7

Product Change Over

6.2.4 Adjusting the Tool for the Dual Strip and Small Boards in

Combination with the Carrier Kit.

The dual strip is a strip for small boards. To mount it on a board only the fixed slide

is used to put the dual strip on. Follow the standard procedure and instead of two

strips only the dual strip is used.

The combination Carrier kit and small production boards (87.0mm to 101.5mm in Y)

can cause interference of the calibration strips with the reference pin. Therefor the

rear (north) strip should be placed lower then 23mm from the rear edge. A default

value can be 52.5mm from the edge (checkbox “fixed alternatives” checked gives

automatically the right value).

The offline preparation tool has this value also:

Use the adjustable slide and the support slide as one slide: push the support slide

against the adjustable slide and move it as one slide to fit in the production board.

Put the calibration strip on the support slide instead of on the adjustable slide. The

strip is mounted 52.5 mm from the rear edge.

6.2.5 Calibrating with Alternative Strip Positions

FIGURE 6-5

The FCM assumes that during Multiflex calibration the calibration strips are on

23mm from the edge of the board. If the strips are mounted on other positions

these positions must be mentioned to the FCM. This can be done in the “Cali-

bration” dialog.

Feeding direction into FCM

Top side

Front strip

Rear strip

South east

corner

Product Change Over

User Reference Manual 4022 591 96082

6-8 FCM Multiflex 02.02

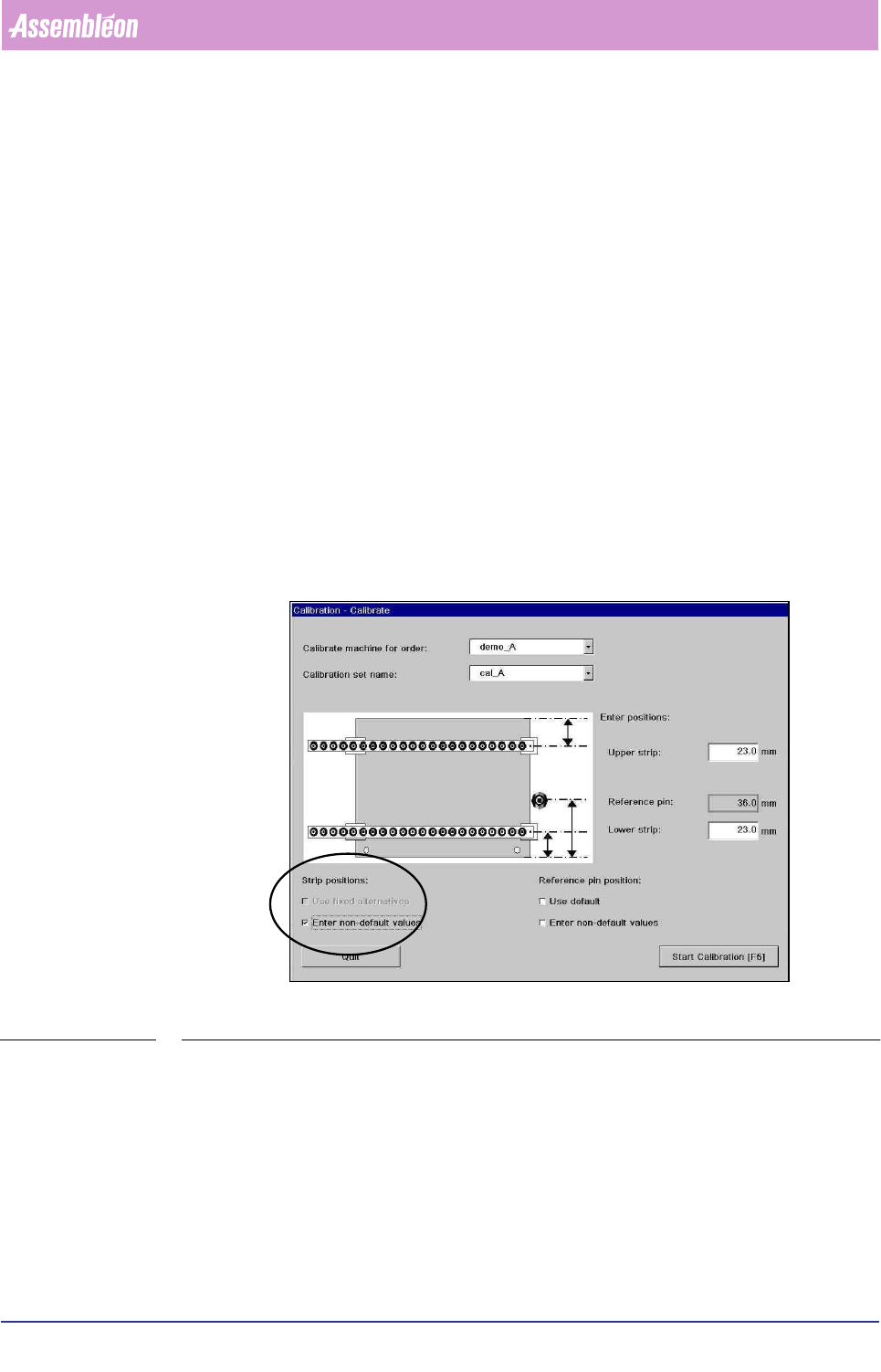

Calibration dialog:

Upper strip: … mm (S

)

The position of the upper strip with respect to the north edge of the board in mm is

displayed. These values can be edited by checking the checkboxes under ‘strip

position’. Default value: 23 mm

Lower strip: … mm (S

)

The position of the lower strip with respect to the south edge of the board in mm is

displayed. These values can be edited by checking the checkboxes under ‘strip

position’. Default value: 23 mm

Reference pin xx mm

For information about reference pin positions refer to 6.2.6

Strip positions checkboxes:

■ Use fixed alternatives. To use other defaults for the positions of the strips.

These values can be edited, refer to 6.2.7 for more details. If no suitable values

are found the default value is displayed: 23 mm

SCREEN 6-2

■ Enter non-default values. To enter strip positions (S

en S

). The text “Enter

strip positions” is displayed and entry fields with initial value 23mm are

displayed. In the entry fields new values can be entered. The strip position must

be measured from the edge of the board to the middle of the calibration strip in

millimeters.

Reference pin position checkboxes:

Refer to 6.2.6
