4022 591 96082 User Reference Manual
02.02 FCM Multiflex 6-29
Product Change Over
6.5 Teach Badmarks

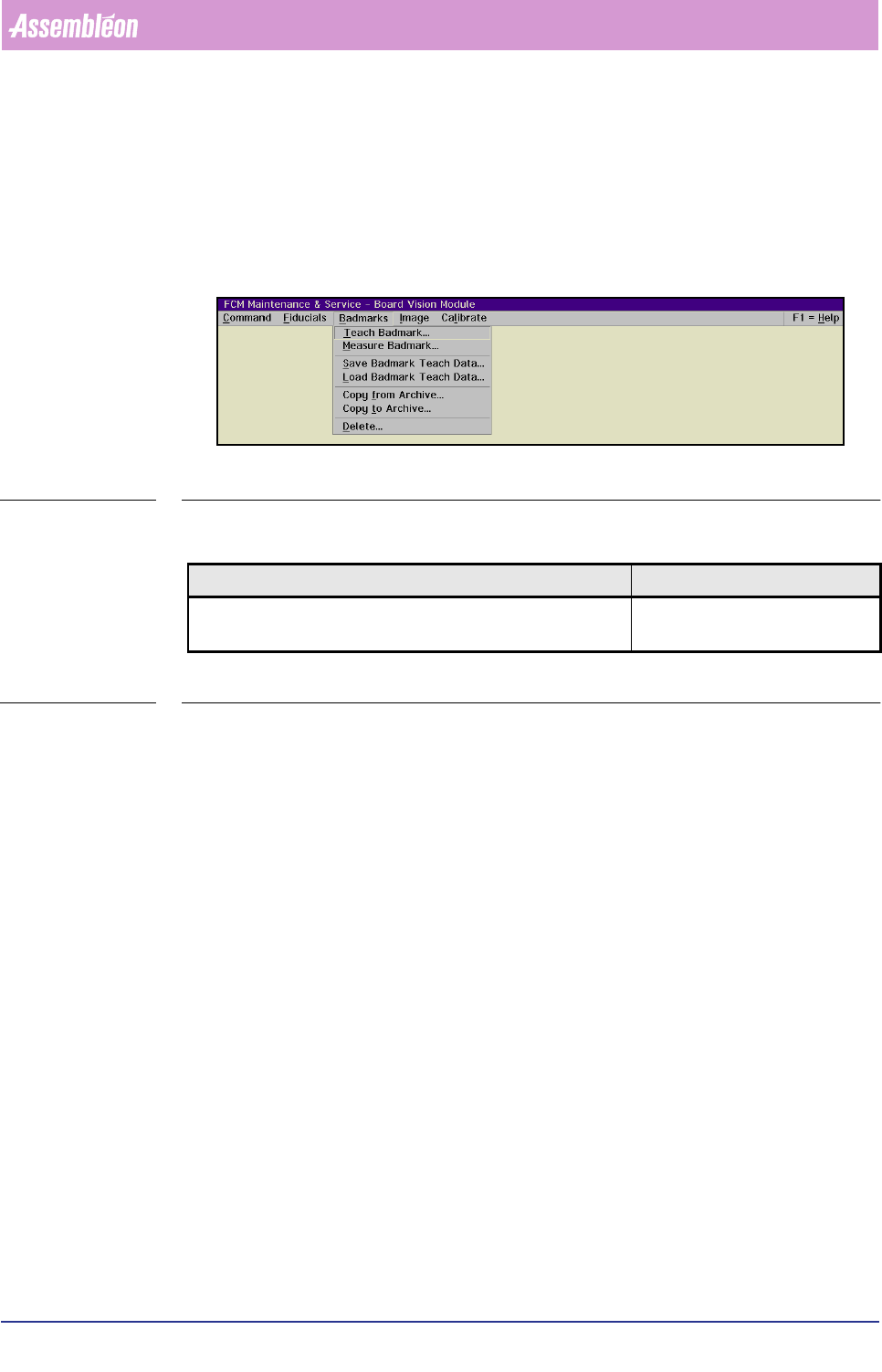

6.5.1 The Badmarks Menu
The options in this menu are related to the badmark sensing function of the BVM.
For a list of menu items, please refer to the figure below.
SCREEN 6-21
6.5.1.1 Teach Badmark...
TABLE 6-11
Before the system can perform successful badmark sensing, every badmark type
which has been specified in the action spec must have been taught to the system.
Once a badmark type has been taught to the system, this information can be filed
for future use.
Please notice that there are basically two ways to indicate a bad circuit:
■ By using a spot-type badmark (dedicated badmark).
The bad circuit is indicated by a sticker, a painted spot etc.
Typically this badmark exceeds the BVM camera’s field of view.
■ By using a fiducial-type badmark. In this case a fiducial was assigned for
badmark purposes; this fiducial has the function of a badmark.
The bad circuit is indicated by the presence or absence (being covered) of a
fiducial assigned as such.
Typically the fiducial-type badmark is smaller than the BVM camera’s field of
view.
Teaching the fiducial-type badmark is similar to the teaching of fiducials.
Before the badmark teaching can start, meet following conditions:
■ The board is present in the BVM section.
■ The action spec with the relevant badmark types specifications has been loaded.
)XQFWLRQ $XWKRUL]DWLRQ
Teach the system the (new) badmark types which are specified
in the action spec.
- Supervisor
- Maintenance/ Service Engineer
Product Change Over
User Reference Manual 4022 591 96082
6-30 FCM Multiflex 02.02
NOTE: Choose a board with badmarks (or fiducials assigned as such) in a good
condition (no pollution, no damages) and which represent the batch to be
processed.
■ Select [Teach Bad Mark...]
SCREEN 6-22
A list of the badmarks from the current action spec will now be displayed.
A badmark is identified by a number from 1 to 255.
■ Select the badmark to be taught from the list
■ Choose
[Select]
4022 591 96082 User Reference Manual
02.02 FCM Multiflex 6-31
Product Change Over
The [Teach Badmark] menu appears (see below)
SCREEN 6-23
Smallest Enclosing Rectangle
■ Select [Smallest Enclosing Rectangle]
■ Look at the monitor:
• For spot-type badmarks, check if the rectangle is completely covered by the
badmark; that means that the badmark should be larger than the rectangle
FIGURE 6-10 Controlling the smallest enclosing rectangle for spot-type badmarks
• For fiducial-type badmarks, proceed with the following points:
