Product Change Over
User Reference Manual 4022 591 96082
6-26 FCM Multiflex 02.02
NOTE: This setting is not relevant for an interpolation algorithm.
6.4.1.2 Measure Fiducial...
TABLE 6-5
■ Select
[Measure Fiducial...]
■ The fiducial to be measured must be selected from the action spec, which lists all
used circuits and fiducials

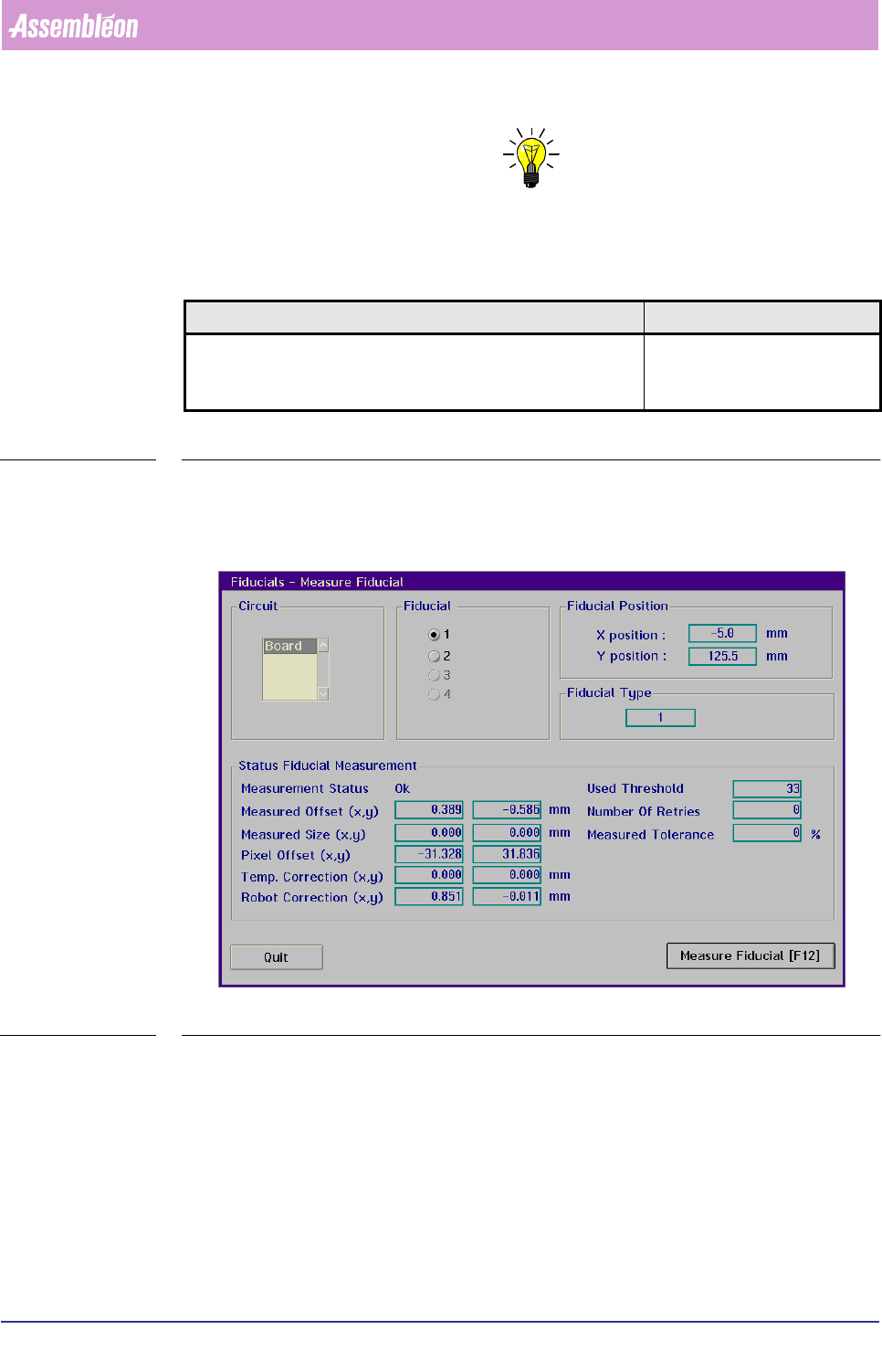

SCREEN 6-20
■ Select the circuit concerned in the [Circuit] box
■ Select the fiducial concerned via the
[Fiducial] box
■ Select
[Measure Fiducial]
The system will try to measure the selected fiducial; the result will be displayed in
the
[Status Fiducial Measurement] box.
)XQFWLRQ $XWKRUL]DWLRQ
Check the results of a fiducial measurement with the current teach
data.
- Operator
- Supervisor
- Maintenance/ Service Engineer
4022 591 96082 User Reference Manual
02.02 FCM Multiflex 6-27
Product Change Over
6.4.1.3 Save Fiducial Teach Data...
TABLE 6-6
This is relevant when teach data of a certain fiducial type has to be modified, but
the current data is expected to have future use.
NOTE: For back-up purposes it is better to archive on floppy disk.
■ Select a file name or type a new name for the file to be saved.
6.4.1.4 Load Fiducial Teach Data...
TABLE 6-7
NOTE: The old teach data of all fiducial types in the current (active) database will
be overwritten!
6.4.1.5 Copy From Archive...
TABLE 6-8
The archive disk can be a floppy disk drive or any other in- or external disk drive.
From there it can be moved to the current (active) database by the
[Load Fiducial
Teach Data...]
command.
)XQFWLRQ $XWKRUL]DWLRQ
Save teach data - that was stored in the teach mode in the current
(active) database - to a selected file on disk.
- Supervisor
- Maintenance/ Service Engineer
)XQFWLRQ $XWKRUL]DWLRQ
Copy teach data from a selected file on disk to the current (active)
database.
- Supervisor
- Maintenance/ Service Engineer
)XQFWLRQ $XWKRUL]DWLRQ
Copy teach data from the archive disk drive to a file on the
(system) disk.
- Supervisor
- Maintenance/ Service Engineer
Product Change Over
User Reference Manual 4022 591 96082
6-28 FCM Multiflex 02.02
6.4.1.6 Copy to Archive...
TABLE 6-9
The archive disk can be a floppy disk drive or any other in- or external disk drive.
6.4.1.7 Delete...
TABLE 6-10
)XQFWLRQ $XWKRUL]DWLRQ
Copy teach data from a file on the (system) disk to the archive disk
drive.
- Supervisor
- Maintenance/ Service Engineer
)XQFWLRQ $XWKRUL]DWLRQ
Delete fiducial teach data files. - Supervisor
- Maintenance/ Service Engineer
