Communication Interfaces
VTK-TR-BA-171e-1 - User Manual MDS 3080-V
119
8.2.1 Pin Functions
PIN Characteristics Level Function
1
Output
0 / +24 V,
R
a
=2.2 kΩ
(valid for 0 V)
SingleDosOK
2
Input
0 / +24 V
R
i
=1.3 kΩ
Trigger Voltage Input
0 ... +5 V “Valve closed“
+12 V ... +30 V “Valve opened“
Positive edge triggering
3
Input
0/ +5 V
Ri
=400 Ω
Trigger Voltage Input
0 ... +0.8 V “Valve closed“
+3 V ... +5 V “Valve opened“
Positive edge triggering
4
Ground
___________
Ground
5
Output
0 / +24 V,
R
a
=2.2 kΩ
(valid for 0 V)
Set point Heating OK
6
Output
0 / +24 V,
R
a
=2.2 kΩ
(valid for 0 V)
Nozzle unit “adjusted” OK
(means green adjust LED)
7
Output
0 / +24 V,
R
a
=2.2 kΩ
(valid for 0 V)
Mains voltage OK
8
Output
0 … +5 V,
R
a
=20 kΩ
U-Needle – sensor signal (needle lift)
9
Output
24 V/50 mA
Power supply to external trigger
10
Ground
___________
Ground
11
Input
0 / 20 mA,
R
i
=500 Ω
Trigger Current Input
12
Reserved
___________
___________
13
Output
0 / +24 V,
R
a
=2.2 kΩ
(valid for 0 V)
For adjust: adjust failed. Nozzle unit screwed in too deep
or not enough.
Outside adjust: general error (24 V = error)
14
Output
0 / +24 V,
R
a
=2.2 kΩ
(valid for 0 V)
DosOK – Ready for dispensing (in the case of a pulse
package, at the end of the entire burst)
15
Input
___________
Trigger Abort, connection to ground, to interrupt
dispensing cycle
Communication Interfaces
120
VTK-TR-BA-171e-1 - User Manual MDS 3080-V
8.2.2 PLC-Signals
The following graphs show you the different PLC-signals Trigger, DosOK and SingleDosOK and
their behavior in various dispensing modes. The last paragraph then shows the effect of
scenarios. It also shows the differences for the variants of DosOK (Delay ON and Delay OFF) and
SingleDosOK (pulse and setup).
DosOK
The signal DosOK shows the length of a dispensing burst. During the pulsing burst, the signal is
“low”.
SingleDosOK
The signal SingleDosOK shows, that a single shot is being dispensed. When the signal changes to
“low”, a single shot is started. When the signal jumps back to “high”, it shows that the Open Time
has ended and the valve is closed.

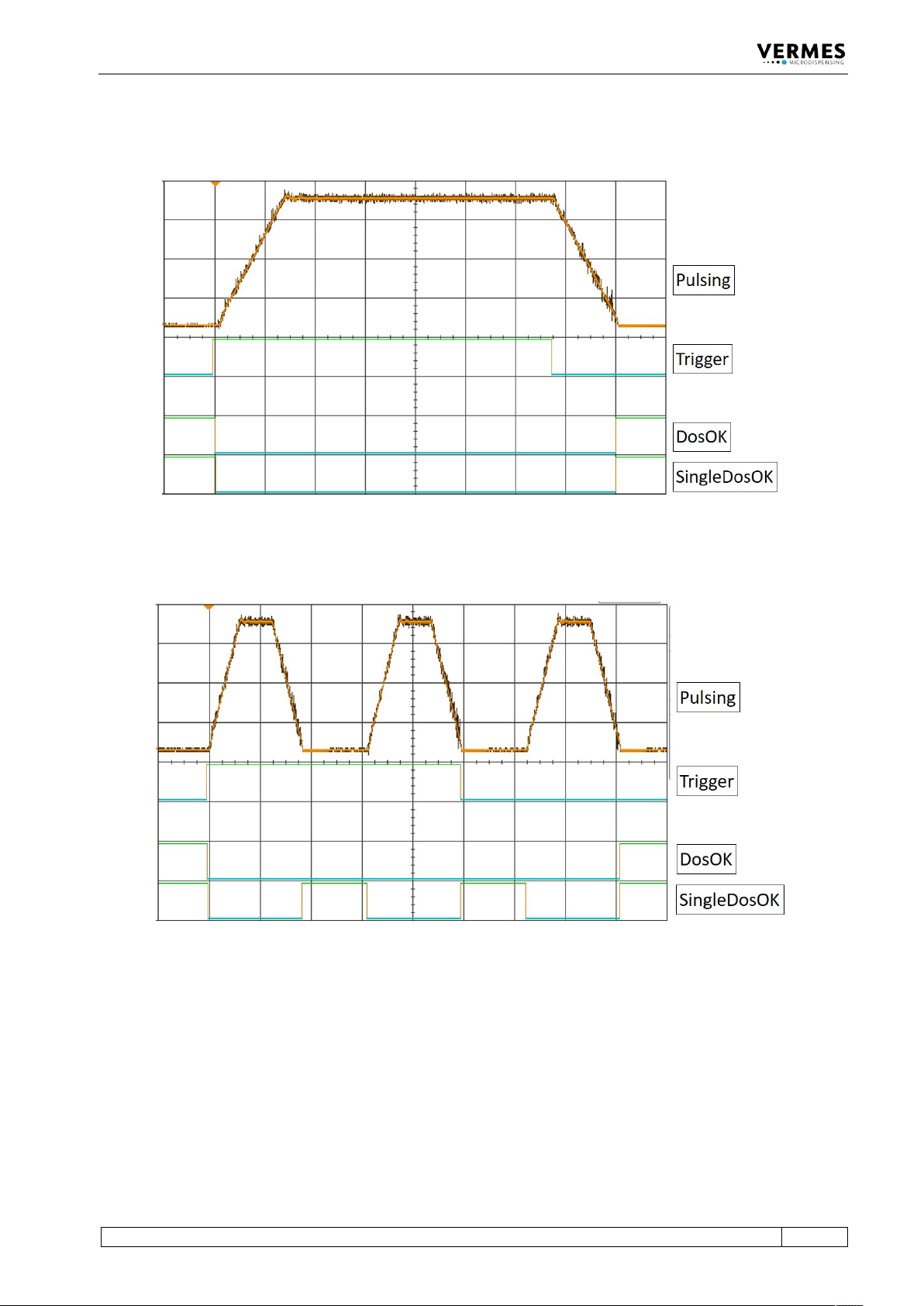

8.2.2.1 Single-Shot Mode
Fig. 32: Single-Shot Mode
8.2.2.2 Burst Mode (Example with Three Shots)
Fig. 33: Burst Mode (Example with Three Shots)
Communication Interfaces
VTK-TR-BA-171e-1 - User Manual MDS 3080-V
121
8.2.2.3 External Mode
Fig. 34: External Mode
8.2.2.4 Infinite Mode
Fig. 35: Infinite Mode
