Spare Parts and Tools
158
VTK-TR-BA-171e-1 - User Manual MDS 3080-V

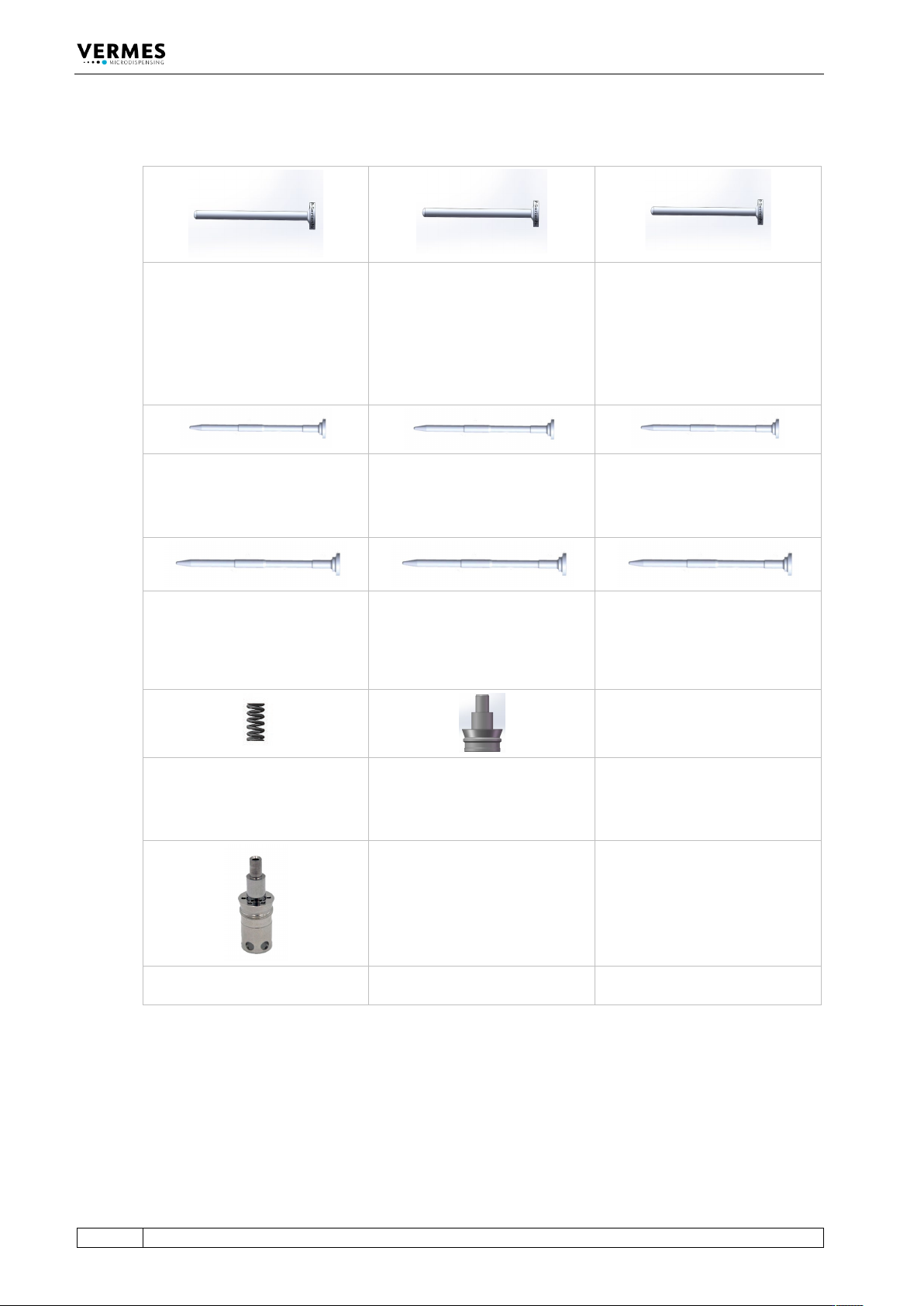

13.2 Tappets
Tappet rod CTF
CTF 0 Order no. 1016089
CTF 4 Order no. 1013126
CTF 7 Order no. 1013125
CTF10 Order no. 1013124
CTF15 Order no. 1012884
Tappet rod TTF
TTF 0 Order no. 1015963
TTF 4 Order no. 1012892
TTF 7 Order no. 1012891
TTF10 Order no. 1012890
TTF15 Order no. 1012889
TTF20 Order no. 1013185
TTF23.5 Order no. 1015125
TTF30 Order no. 1016497
Tappet rod SNTF
SNTF 0 Order no. 1018090
SNTF 4 Order no. 1014240
SNTF 7 Order no. 1014243
SNTF10 Order no. 1014244
SNTF15 Order no. 1014245
SNTF 23.5 Order no. 1015752
Tappet rod 2G CTF
2G CTF 4 Order no. 1015241
2G CTF 7 Order no. 1015242
2G CTF10 Order no. 1015243
2G CTF15 Order no. 1015244
Tappet rod 2G TTF
2G TTF 4 Order no. 1015235
2G TTF 7 Order no. 1015236
2G TTF10 Order no. 1015218
2G TTF15 Order no. 1015217
Tappet rod 2G SNTF
2G SNTF 4 Order no. 1015253
2G SNTF 7 Order no. 1015254
2G SNTF10 Order no. 1015255
2G SNTF15 Order no. 1015256
Tappet rod 2G CTF + 10 mm
2G CTF 4 +10 mm Order no. 1015644
2G CTF 7 +10 mm Order no. 1015645
2G CTF 10 +10 mm Order no. 1015646
2G CTF 15 +10 mm Order no. 1015647
(only compatible with 1015316)
Tappet rod 2G TTF + 10 mm
2G TTF 4 +10 mm Order no. 1015639
2G TTF 7 +10 mm Order no. 1015640
2G TTF 10 +10 mm Order no. 1015641
2G TTF 15 +10 mm Order no. 1015642
(only compatible with 1015316)
Tappet rod 2G SNTF + 10 mm
2G SNTF 4 +10 mm Order no. 1015648
2G SNTF 7 +10 mm Order no. 1015649
2G SNTF 10 +10 mm Order no. 1015650
2G SNTF 15 +10 mm Order no. 1015651
(only compatible with 1015316)
Tappet spring
TF-PR Order no. 1014620
SN Order no. 1017165
SB Order no. 1014748 (blue)
Tappet centering screw
BY (stainless steel) Order no. 1014228
HM-BY (carbide) Order no. 1014679
23.5 BY Order no. 1014709
2G BY Order no. 1015221
Tappet Grease TF
1 ml Order no. 1014637
10 ml Order no. 1014636
310 ml Order no. 1014635
Tappet centering screw 2G BY +10 mm
Order no. 1015316
Tab. 34: Tappets
Spare Parts and Tools
VTK-TR-BA-171e-1 - User Manual MDS 3080-V
159

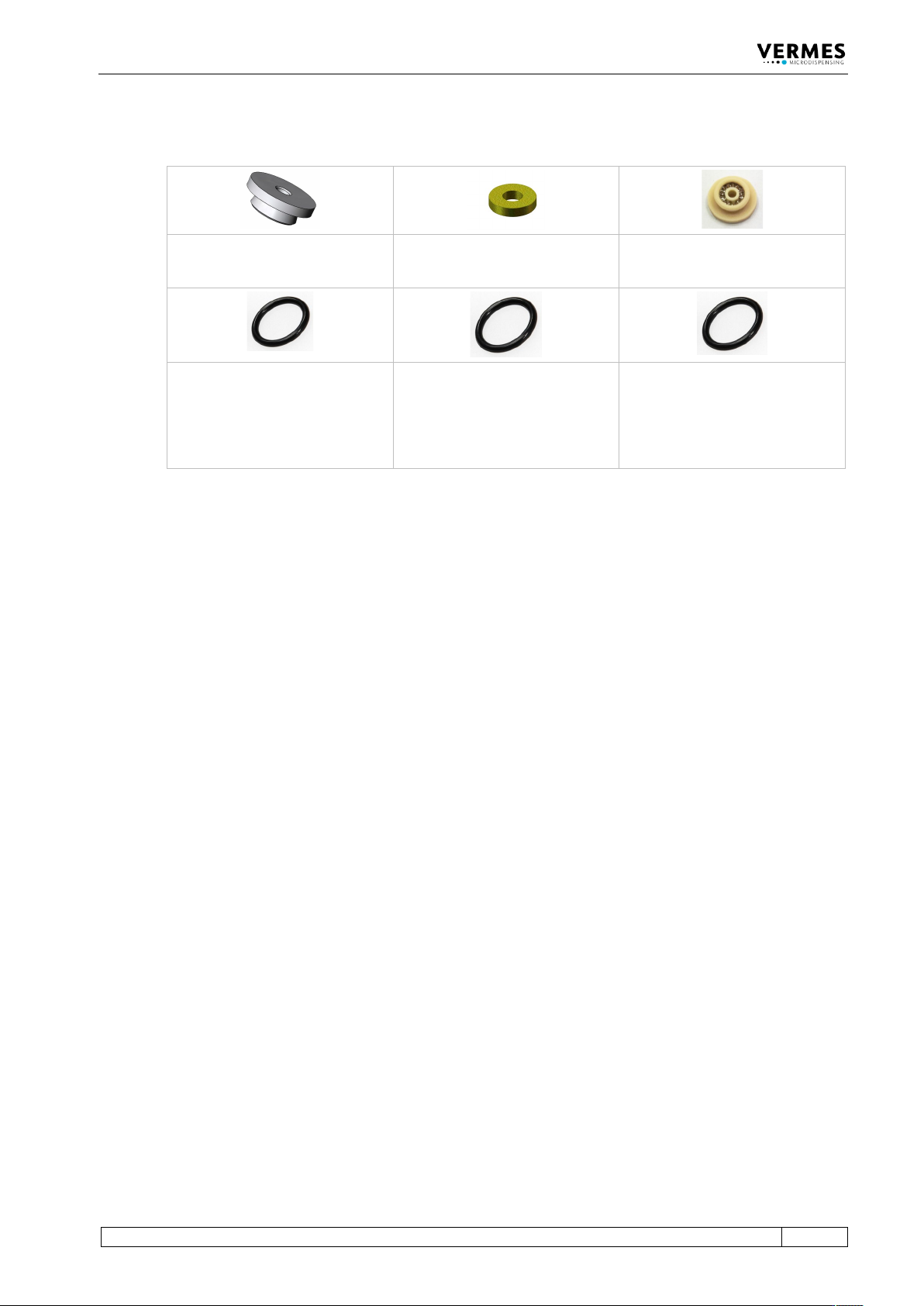

13.3 Sealings
Tappet sealing
PE Order no. 1007067
PTFE Order no. 1010247
Tappet Centering Piece PEEK
Order no. 1009419
Tappet sealing HT
Order no. 1015823
O-Ring-BY
NBR Order no. 1014226 (black)
EPDM Order no. 1017525 (black)
Viton Order no. 1014385 (green)
Large:
EPDM Order no. 1017526 (black)
O-Ring-Safe – EPDM
3 ccm Order no. 1017353
5 ccm Order no. 1017354
10 ccm Order no. 1017355
30/55ccm Order no. 1017356
(black)
O-Ring-Safe – NBR
3 ccm Order no. 1015892
5 ccm Order no. 1015895
10 ccm Order no. 1015897
30/55ccm Order no. 1015899
(10 pieces, black)
Tab. 35: Sealings
Spare Parts and Tools
160
VTK-TR-BA-171e-1 - User Manual MDS 3080-V
13.4 Supply Unit
Cartridge
3 ccm Order no. 1007091
5 ccm Order no. 1012914
10 ccm Order no. 1008361
30 ccm Order no. 1007087
(also available nontransparent for light or
UV light)
30 ccm Order no. 1015697
(metal cartridge for hot melt
applications)
Cartridge Holder 30xx-TA
30/55 ccm Order no. 1017137
5 ccm Order no. 1017136
Fluid Box Connector CH-HO
Order no. 1014352
Connector BY
Order no. 1014234
Cartridge Base CHI-HT
Order no. 1014517
Cartridge Base CHI
Order no. 1014060
Heater MDH-48-BY-BH
Order no. 1015224
Fluid Box Body MDF 1500-BY
1500-BY-40 Order no. 1014538
1500-BY-40+10mm Order no. 1015127
Mounting Body
BY Order no. 1014369
PEEK-BY Order no. 1014537
Double Channel Fluid Box Body MDF
3078-BY
Order no. 1016261
Adapter Safe for compressed air
3 ccm Order no. 1014953
5 ccm Order no. 1014952
10 ccm Order no. 1014951
30/55 ccm Order no. 1014950
Tightening Screw
PEEK Order no. 1013487
PEEK (with insert) Order no. 1013139
Stainless Steel Order no. 1010027
Fluid box connector Luer-Lock
Stainless Steel Order no. 1007060
PEEK Order no. 1012826
Cartridge Base CH
Order no. 1015638
Tab. 36: Supply unit
