Spare Parts and Tools
160
VTK-TR-BA-171e-1 - User Manual MDS 3080-V

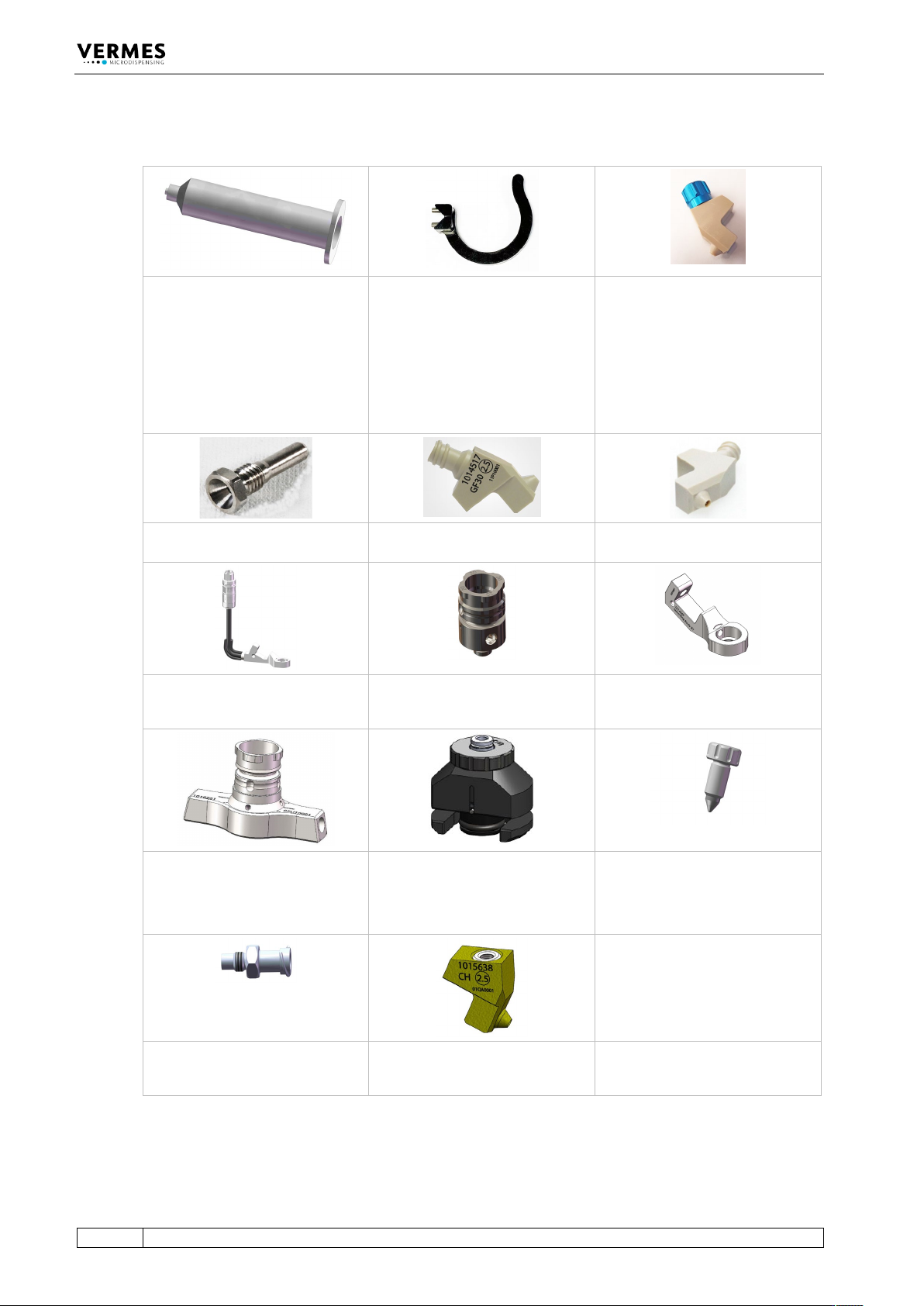

13.4 Supply Unit
Cartridge
3 ccm Order no. 1007091
5 ccm Order no. 1012914
10 ccm Order no. 1008361
30 ccm Order no. 1007087
(also available nontransparent for light or
UV light)
30 ccm Order no. 1015697
(metal cartridge for hot melt
applications)
Cartridge Holder 30xx-TA
30/55 ccm Order no. 1017137
5 ccm Order no. 1017136
Fluid Box Connector CH-HO
Order no. 1014352
Connector BY
Order no. 1014234
Cartridge Base CHI-HT
Order no. 1014517
Cartridge Base CHI
Order no. 1014060
Heater MDH-48-BY-BH
Order no. 1015224
Fluid Box Body MDF 1500-BY
1500-BY-40 Order no. 1014538
1500-BY-40+10mm Order no. 1015127
Mounting Body
BY Order no. 1014369
PEEK-BY Order no. 1014537
Double Channel Fluid Box Body MDF
3078-BY
Order no. 1016261
Adapter Safe for compressed air
3 ccm Order no. 1014953
5 ccm Order no. 1014952
10 ccm Order no. 1014951
30/55 ccm Order no. 1014950
Tightening Screw
PEEK Order no. 1013487
PEEK (with insert) Order no. 1013139
Stainless Steel Order no. 1010027
Fluid box connector Luer-Lock
Stainless Steel Order no. 1007060
PEEK Order no. 1012826
Cartridge Base CH
Order no. 1015638
Tab. 36: Supply unit
Spare Parts and Tools
VTK-TR-BA-171e-1 - User Manual MDS 3080-V
161

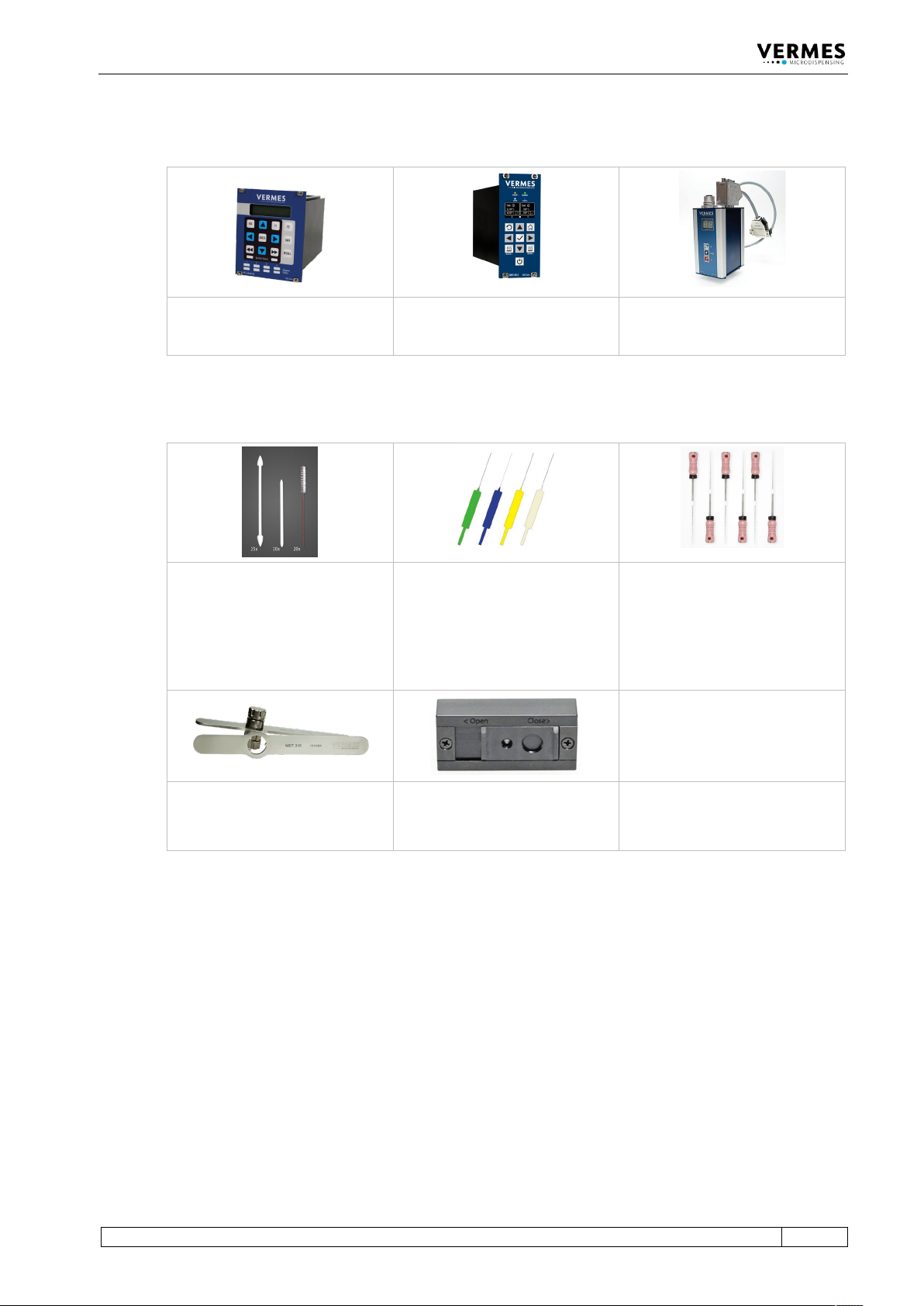

13.5 Heater Controllers
MFC 3000
Order no. 1014981
Heater Controller MHC 48-2
Order no. 1015680
Heater Controller MHC 48-1
Order no. 1014107
Tab. 37: Heaters Controllers
13.6 Cleaning Tools
CTK – Cleaning Tool Kit 2.5
Order no. 1014632
consists of:
25 pcs. Fluid Box Cleaners (P: 1013266)
20 pcs. Cleaning Rods 2.5 (P: 1014631)
20 pcs. Fluidic Brushes 2.5 (P: 1014422)
(P = Order no. for only these parts)
Nozzle Insert Cleaning Wires
size 100 (blue) Order no. 1011208
size 120 (white) Order no. 1011488
size 150 (green) Order no. 1010380
size 200 (orange) Order no. 1010379
size 300 (yellow) Order no. 1012208
size 400 (red) Order no. 1012209
size 500 (gray) Order no. 1015396
Set – NI Cleaning Reamers
Order no. 1014627
(6 pcs.)
MDT 316 - Nozzle Insert Cleaning Tool
Order no. 1013324
MDT 324 - Nozzle Insert Cleaning
Holder
Order no. 1014310 (PEEK)
Order no. 1017320 (Stainless Steel)
Tab. 38: Cleaning Tools
Spare Parts and Tools
162
VTK-TR-BA-171e-1 - User Manual MDS 3080-V

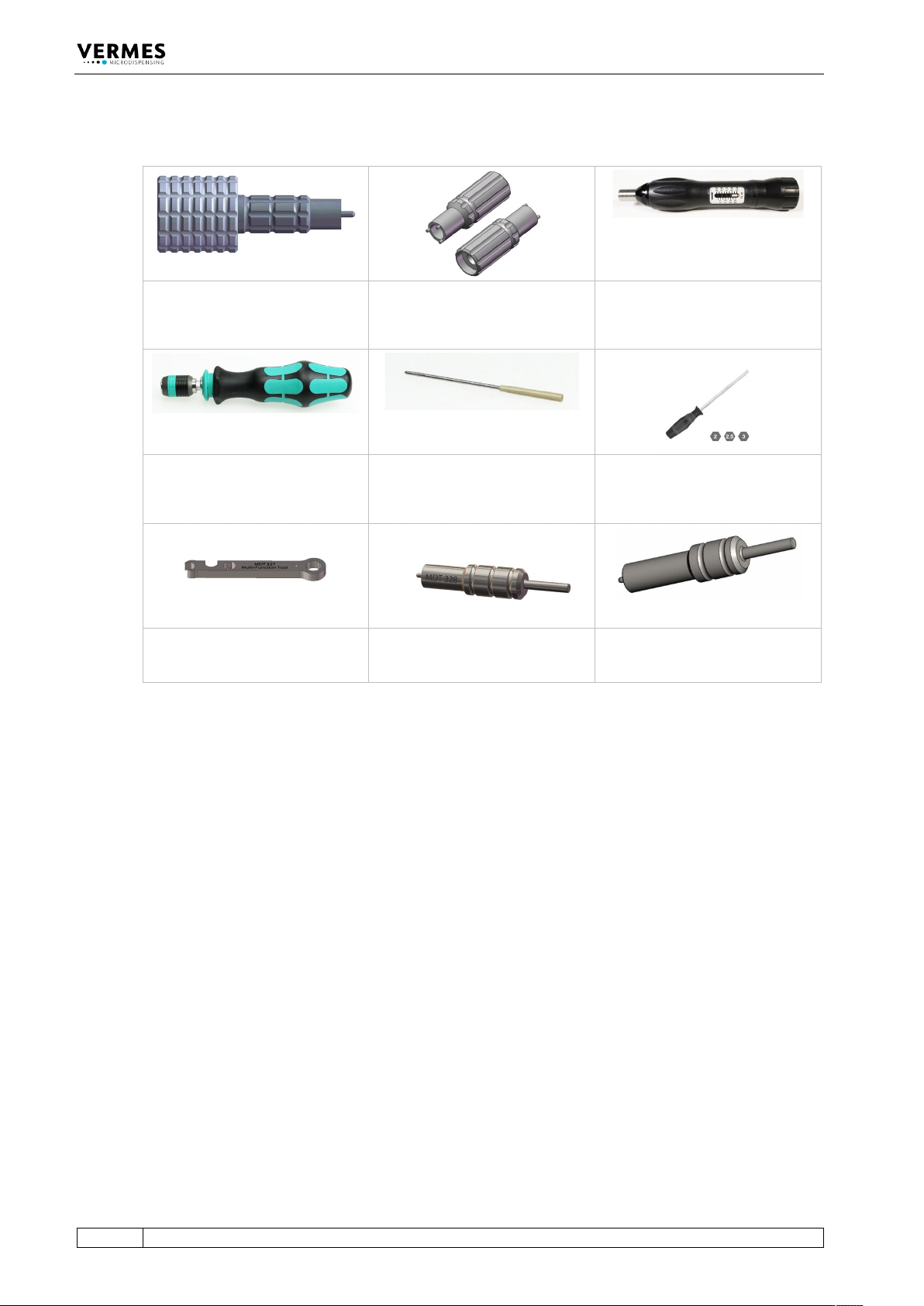

13.7 Tools
MDT 301 - Universal Tool
Order no. 1010208
MDT 303 - Nozzle Insert Changing Tool
Order no. 1007083
MDT 306 - Torque Wrench Tool VM
Order no. 1015062
BitVM Set Order no. 1013398
MDT 307 - Adjust Tool TA
Hot Melt
Handle
Order no. 1014143
MDT 323 - Nozzle Insert - Squeezing
Out Tool TA
Order no. 1014283
Hexagon Key Set
Order no. 1012993
(can be ordered separately)
MDT 327 - Multi-Function Tool
Order no. 1014440
MDT 328 - Tappet Sealing Changing
Tool
Order no. 1014503
MDT 333 - Double Channel Tappet
Sealing Changing Tool
Order no. 1016243
Tab. 39: Tools
