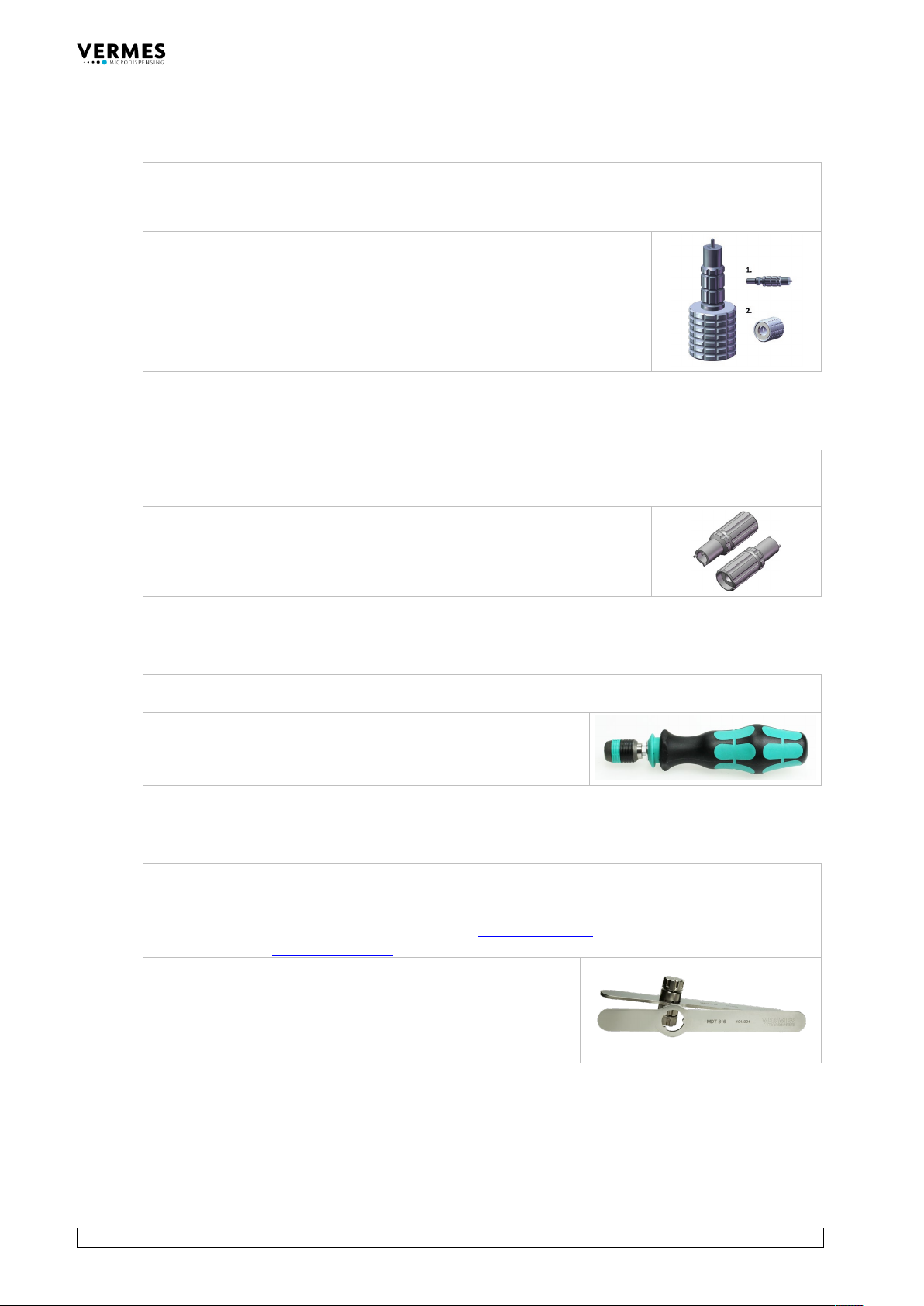

3.3.1 MDT 301 - Universal Tool
The tool MDT 301 comprises two subcomponents screwed to each other:
• “Sealmounter” with a mandrel to insert and to remove the tappet sealing (1.)
• “Adjustment grip” with a receptacle for the adjust screw (2.)
Intended Purpose:
1. Fixing of tappet sealing and tappet centering piece
2. It may also be used to execute the general adjust (alternatively to tool
MDT 327)
Tab. 6: MDT 301 - Universal Tool (Order no. 1010208)
3.3.2 MDT 303 - Nozzle Insert Changing Tool
The MDT 303 is required for the exchange of the nozzle insert. The 3 pins of the MDT 303 grip into the
receptacle bores of the tappet centering screw in order to unscrew the tappet centering screw from the
fluid box.
Intended Purpose:
1. Screwing apart/together fluid box body and tappet centering screw
Tab. 7: MDT 303 - Nozzle Insert Changing Tool (Order no. 1007083)
3.3.3 MDT 307 - Adjust Tool TA Hot Melt Handle
The MDT 307 can be used in combination with the bit BitVM-A Tightening Screw, magnetic (order no.
1014519) to perform the adjust with a valve capable of the top adjust function.
Intended Purpose:
1. Performing the top adjust
Tab. 8: MDT 307 - Adjust Tool TA Hot Melt Handle (Order no. 1014143)

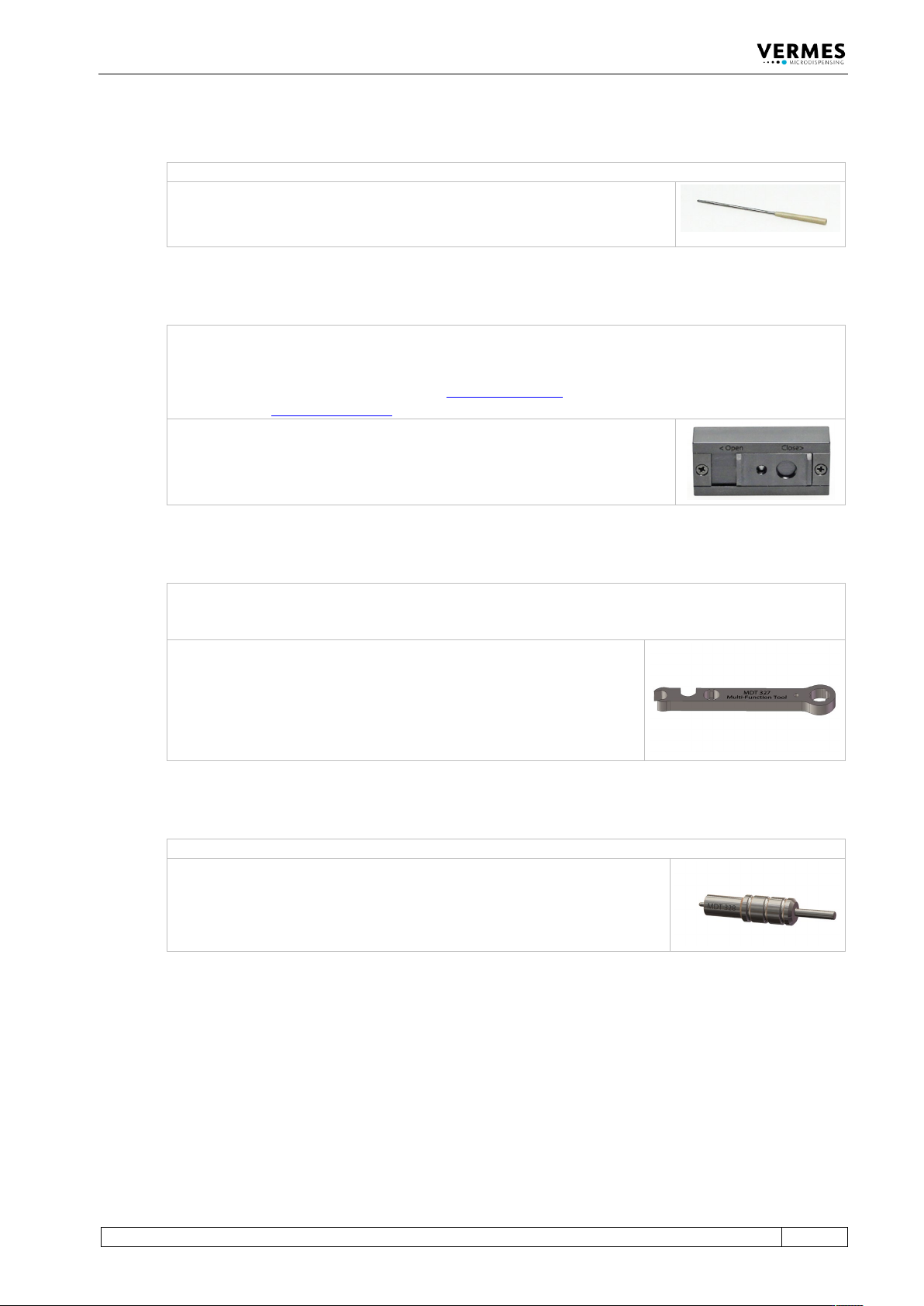

3.3.4 MDT 316 - Nozzle Insert Cleaning Tool
The MDT 316 is used to clean clogged nozzle inserts made of carbide metal, ceramics or diamond
(series N11 to N22). This is achieved by pumping a fat or grease with high pressure through the nozzle
channel. Additional information is in the Quick Reference Guide MDT 316 Nozzle Insert Cleaning Tool.
You can download it from the VERMES homepage (
www.vermes.com). The necessary password you can
get from our sales (sales@vermes.com).
Intended Purpose:
1. Cleaning of clogged nozzle inserts
Tab. 9: MDT 316 - Nozzle Insert Cleaning Tool (Order no. 1013324)
General Instructions
VTK-TR-BA-171e-1 - User Manual MDS 3080-V
17
3.3.5 MDT 323 - Nozzle Insert – Squeezing Out Tool TA
The MDT 323 has a thin and a wide end. Both are meant for different applications.
Intended Purpose:
1. Detaching the nozzle insert from the fluid box (thin end)
2. Detaching the tappet sealing (wide end)
Tab. 10: MDT 323 - Nozzle Insert – Squeezing Out Tool TA (Order no. 1014283)
3.3.6 MDT 324 - Nozzle Insert Cleaning Holder
The MDT 324 has a receptacle, in which the nozzle insert is placed to be held tight. Then you can clean
the nozzle insert with compressed air without the danger of blowing it away accidently. Additional
information is in the Quick Reference Guide “Nozzle Insert Cleaning Holder MDT 324”. You can
download it from the VERMES homepage (
www.vermes.com). The necessary password you can get
from our sales (sales@vermes.com).
Intended Purpose:
1. For holding a nozzle insert during cleaning with compressed air
Tab. 11: MDT 324 - Nozzle Insert Cleaning Holder (Order no. 1014310)
3.3.7 MDT 327 - Multi-Function Tool
The knobs of the MDT 327 grip into the slots of the adjust screw or into the slots of the tightening screw
(gearing VM-A). The other end holds open-ended wrenches (size 7) and (size 8). They are needed for
mounting the system.
Intended Purpose:
1. Performing the adjust
2. Fixing the tightening screw to the fluid box
3. Fixing the Nozzle Fixation Nut
4. Opening/closing Luer-Lock connector
5. Picking up a nozzle insert
Tab. 12: MDT 327 - Multi-Function Tool (Order no. 1014440)
3.3.8 MDT 328 - Tappet Sealing Changing Tool
The MDT 328 is used to mount and demount the tappet sealing and the tappet centering piece.
Intended Purpose:
1. Squeezing out of the tappet sealing from the fluid box
2. Squeezing out of the tappet centering piece from the fluid box
3. Pushing the tappet sealing into the fluid box
Tab. 13: MDT 328 - Tappet Sealing Changing Tool (Order no. 1014503)
General Instructions
18
VTK-TR-BA-171e-1 - User Manual MDS 3080-V

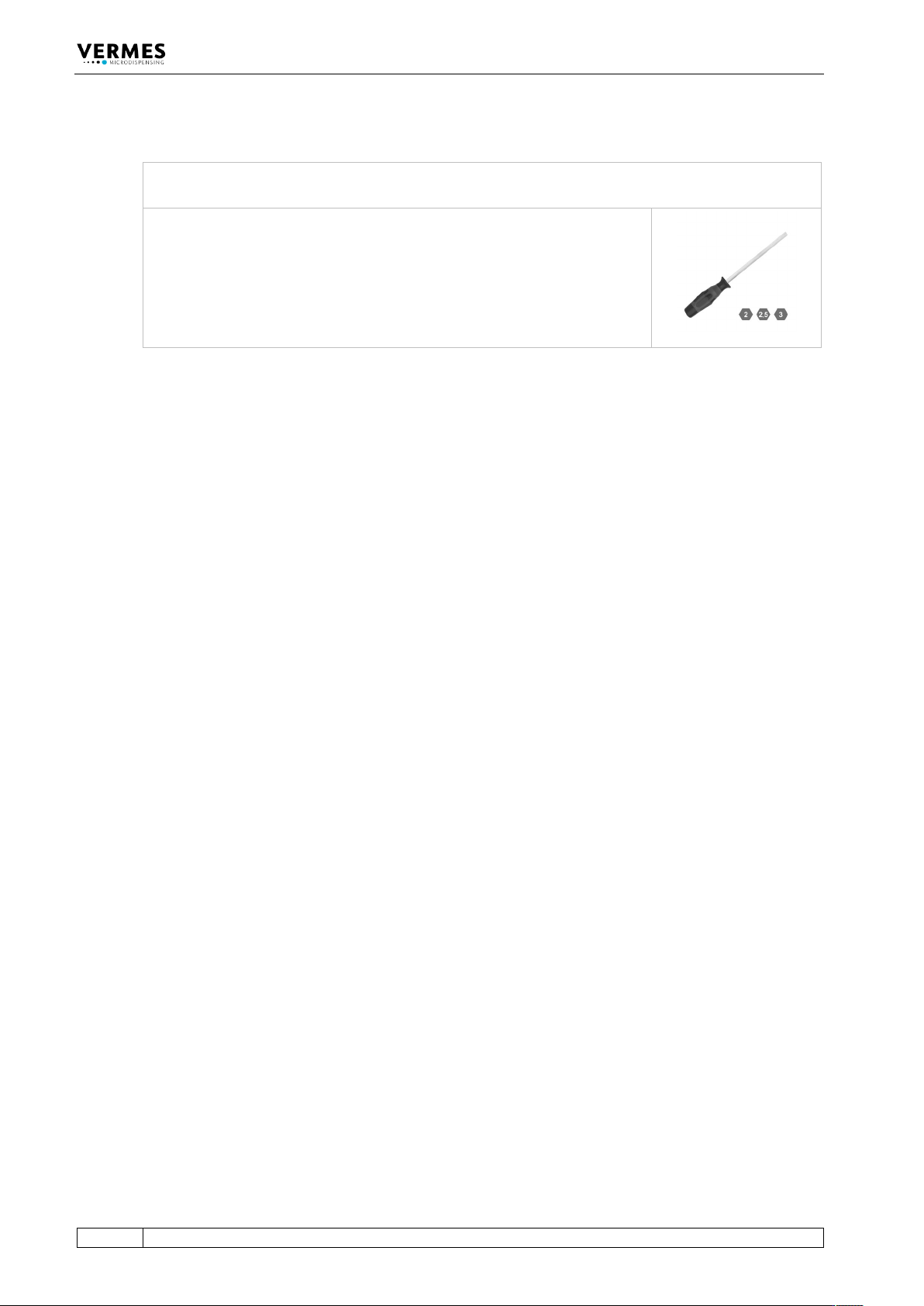

3.3.9 Hexagon Key Set
The set includes three hexagon keys (sizes 2, 2.5 and 3) for hex-screws, with blades made of
hardened steel and ergonomic grips.
Intended Purpose:
1. Mounting and demounting the fluid box (2)
2. Mounting and demounting the tappet guard (2)
2. Mounting and demounting the isolation body (2)
4. Mounting and demounting the cartridge holder (2 or 2.5, depending on
type)
5. Fixing of the valve, in-situ (3)
Tab. 14: Hexagon Key Set (Order no. 1012993)
