2 Brief Description
2.1 Overview
100 Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Reconfiguration Kit Twin VHF mit Portal
Reconfiguration Kit Twin VHF with Gantry 06/2020
2.1.6 Configurations
2.1.6.1 Table Positions
The table position required for the SIPLACE SX1/SX2 varies according to the head configuration:
SIPLACE SX1:
Gantry 1 C&P20A CPP_L CPP_H
without stat.
camera
CPP_H with
stat. camera
TH/TwinVHF
Table position
location 1
Inner Inner Inner Outer Outer
Table position
location 2
Inner Inner Inner Inner Inner
SIPLACE SX2:
Gantry 1 C&P20A CPP_L CPP_H
with stat.
camera
CPP_H
with stat.
camera
TH/ Twin-
VHF
TH/ Twin-
VHF
TH/ Twin-
VHF
Table position
location 1
Inner Inner Outer Outer Outer Outer Outer
Gantry 2 C&P20A CPP_L CPP_H
with stat.
camera
CPP_H
without
stat.
camera
CPP_H
with stat.
camera
CPP_H
without
stat.
camera
TH/ Twin-
VHF
Table position
location 2
Inner Inner Outer Inner Outer Inner Outer
NOTICE
Stationary cameras
SIPLACE CPP:
Only with component camera stat. P&P (type 33) 55x45 GigE
SIPLACE TwinHead/Twin VHF:
With component camera stat. P&P (type 33) 55x45 GigE at both locations
SX V3 stat. camera P&P type 25 GigE only at location1
2 Brief Description
2.1 Overview
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Reconfiguration Kit Twin VHF mit Portal
Reconfiguration Kit Twin VHF with Gantry 06/2020
101
2.1.6.2 Stationary Cameras
SIPLACE SX1

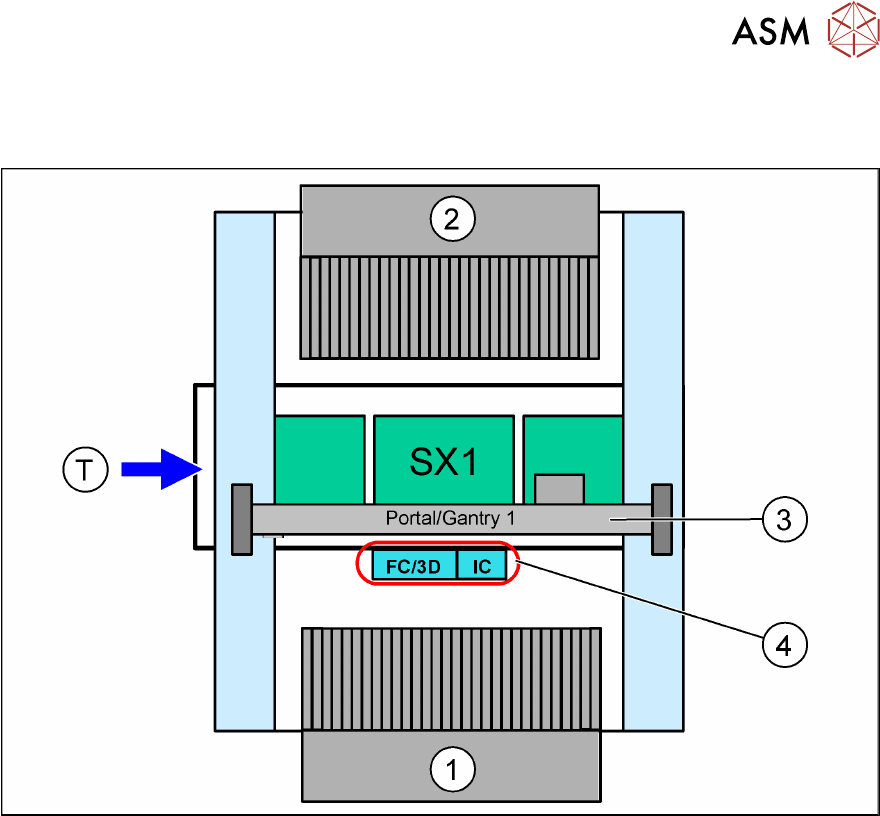

Fig.16: Stationary cameras on the SIPLACE SX1
1. Location 1 in outer position
2. Location 2 in inner position
3. Gantry 1
4. IC camera and/or FC camera/3D coplanarity module (location1)
You can only install either an FC camera or a 3D coplanarity module!
2 Brief Description
2.2 Prerequisites
102 Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Reconfiguration Kit Twin VHF mit Portal
Reconfiguration Kit Twin VHF with Gantry 06/2020
SIPLACE SX2

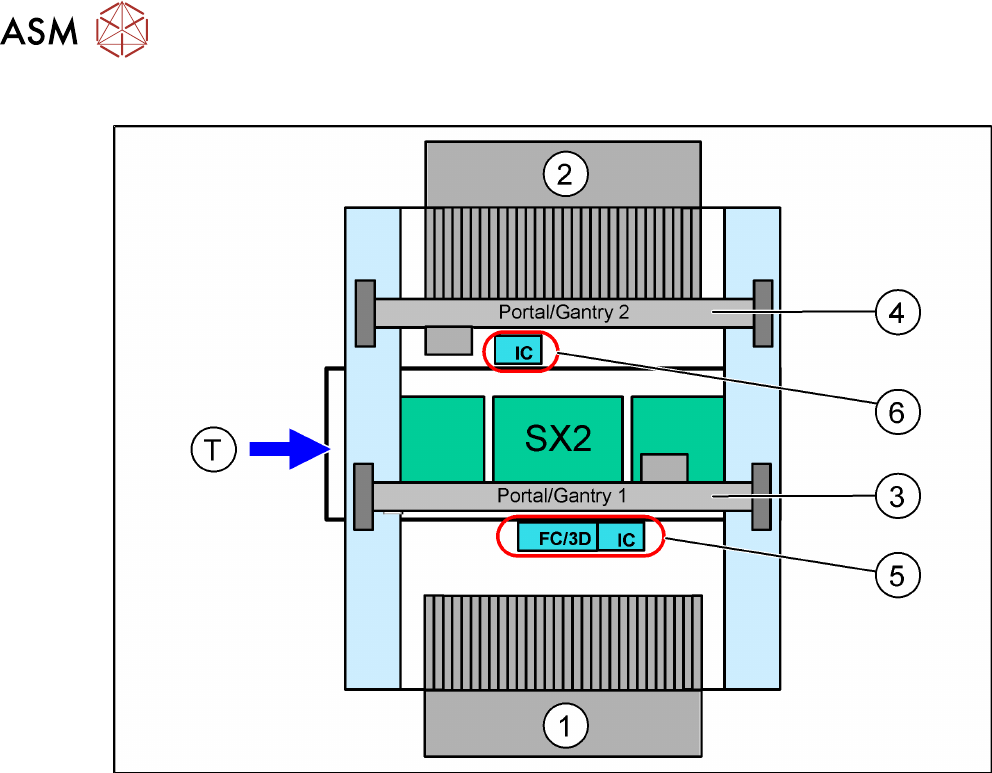

Fig.17: Stationary cameras on the SIPLACE SX2
1. Location 1 in outer position
2. Location 2 in outer position
3. Gantry 1
4. Gantry 2
5. IC camera and/or FC camera/3D coplanarity module (location1)
You can only install either an FC camera or a 3D coplanarity module!
6. IC camera (location2)
2.2 Prerequisites
●
This option is possible for SIPLACE SX1, SX1prepared and SX2 machines.
●
Serial number from Rxxxx
●
Station software 713.0
●
SIPLACE Pro 17.0
●
WPC5/6 - 45 mm (serial numbers from B3xxx/C3xxx)
This WPC is needed for feeding in components with heights up to 40 mm.
●
A combination with the "Smart Pin Support" option is also possible. In this case, you need the
appropriately adapted pin picker.
