2 Brief Description 2.1 Overview Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Reconfiguration Kit Twin VHF mit Portal Reconfiguration Kit Twin VHF with Gantry 06/2020 95 2.1.4 Machine Variants SIPLACE Gant…
2 Brief Description
2.1 Overview
94 Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Reconfiguration Kit Twin VHF mit Portal
Reconfiguration Kit Twin VHF with Gantry 06/2020
2.1.3 Gantry 40 mm with SIPLACE Twin VHF
Fig.10: Gantry 40 mm with Twin VHF
The "Twin VHF 40 mm components" option
requires a new gantry, which is higher than
the standard gantries. The machine auto-
matically recognizes the gantry.
These gantries can only be used with the
Twin VHF head. Other heads can not be
used with this gantry.
1. Twin VHF – segment 1
2. Twin VHF – segment 2
2.1.3.1 Differences Between Standard and 40 mm Gantry
Fig.11: Differences between standard and 40 mm gantry
1 Standard gantry 2 40 mm gantry for Twin VHF
3 The gantry is 12 mm below the upper
edge of the motor bracket.
4 The gantry is at the same height as the
upper edge of the motor bracket.
5 X linear guide is under the motor cover 6 X linear guide is on the motor cover
2 Brief Description
2.1 Overview
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Reconfiguration Kit Twin VHF mit Portal
Reconfiguration Kit Twin VHF with Gantry 06/2020
95
2.1.4 Machine Variants
SIPLACE Gantry configuration Description
SX+ Without gantry
"Add Feeder Slots"
The machine has been prepared for a gantry upgrade
(SX1), i.e. a trailing cable and one MGCU are prefit-
ted for one gantry.
SX+
prepared
Without gantry The machine has been prepared for a gantry upgrade
(SX1/2), i.e. two trailing cables and two MGCUs are
prefitted for two gantries.
SX1
unprepared
One gantry The machine has not been prepared for a gantry
upgrade, i.e. a trailing cable and one MGCU are pre-
fitted for one gantry. To upgrade to SX2, please con-
tact your SIPLACE Service team.
SX1
prepared
One gantry The machine has been prepared for a gantry upgrade
(SX2), i.e. two trailing cables and two MGCUs are
prefitted for two gantries.
SX2 Two gantries The machine can be downgraded to a SX1 prepared.
It is then prepared for a gantry upgrade to SX2, i.e.
two trailing cables and MGCUs are fitted.
2.1.5 Head Configuration
Various head configurations are possible. These vary according to the machine type used:
SIPLACE SX 1 SX2 SX2 SX2 SX2 SX2
Gantry 1 Twin VHF CPP_H Twin VHF Twin Head Twin VHF Twin VHF
Gantry 2 -- Twin VHF CPP_H Twin VHF Twin Head Twin VHF
2 Brief Description
2.1 Overview
96 Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Reconfiguration Kit Twin VHF mit Portal
Reconfiguration Kit Twin VHF with Gantry 06/2020
2.1.5.1 Configuration SIPLACE SX1 – C&P Head → Twin VHF

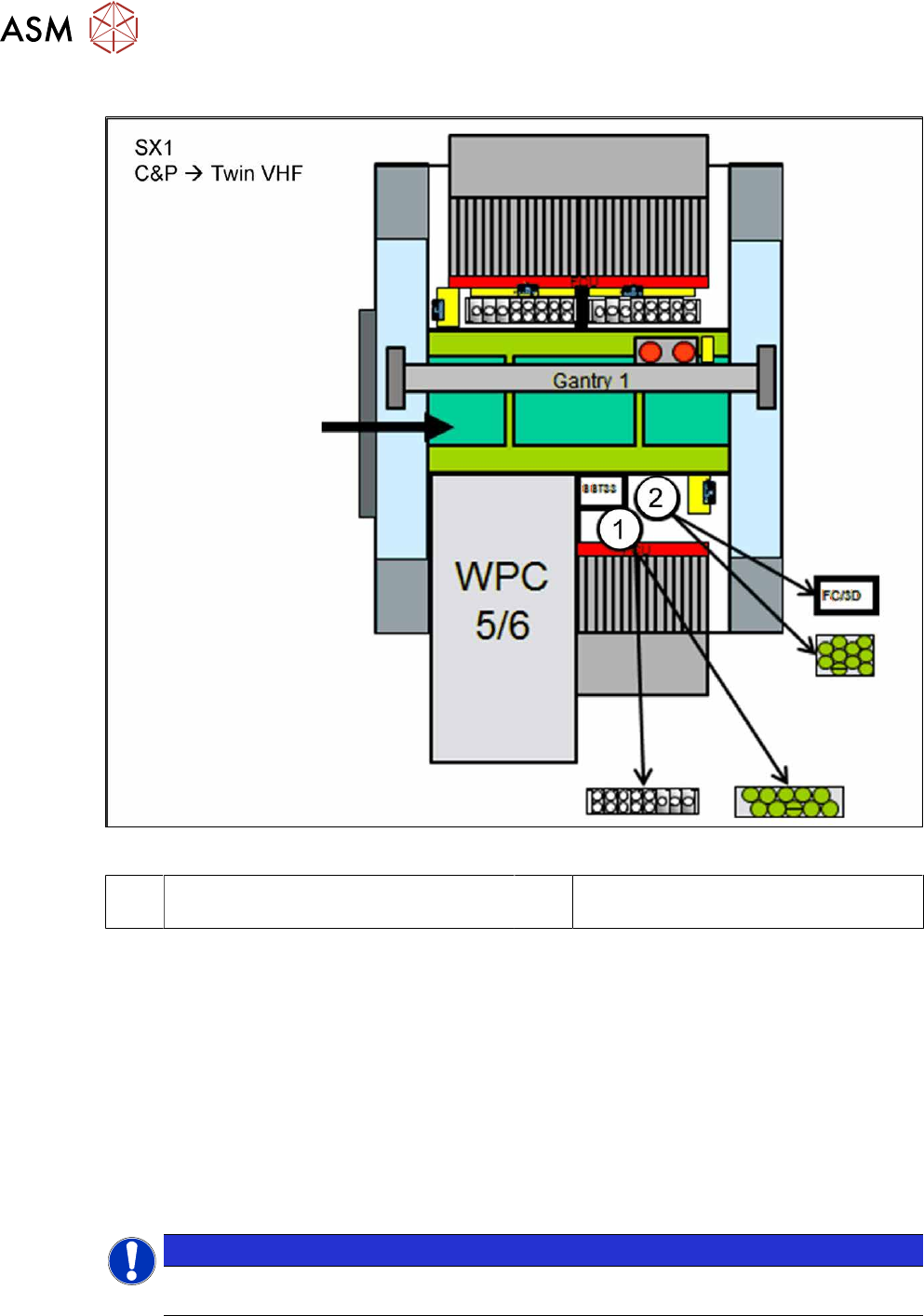

Fig.12: Configuration SIPLACE SX1 – C&P Head → Twin VHF
1 Option: nozzle changer or SPS
magazine
2 Option: stationary camera or SPS
magazine
●
Option: gantry with VHF TH SIPLACE SX V3 [00520557‑xx] (alternative: [03220743‑xx])
●
Reconfiguration kit Twin VHF [03105335-xx]
If a gantry with C&P head without stationary camera is replaced with a gantry with Twin VHF, the
following parts will be needed in addition:
●
Upgrade kit stat. camera type 33, SX V3 [03225370-xx]
(support plate assembly SP1 [03070836-xx])
●
SX V3 stat. camera P&P type 25 GigE [03222727-xx]
●
Nozzle changer TH SX series [00519845-xx]
●
SIPLACE WPC 5 standard [00119827-xx]
●
SIPLACE WPC 6 (with non-stop module) [00119828-xx]
NOTICE
Only SIPLACE WPC5/6 from serial number 3xxx can be set for very high components up to
45mm.
●
SPS option (Smart Pin Support) [00519988-xx]
Depending on the configuration of your machine, you may need additional parts. Read the relevant
assembly instructions for more information.
