2 Brief Description
2.1 Overview
98 Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Reconfiguration Kit Twin VHF mit Portal
Reconfiguration Kit Twin VHF with Gantry 06/2020
2.1.5.3 Configuration SIPLACE SX2 – CPP_H and Twin VHF

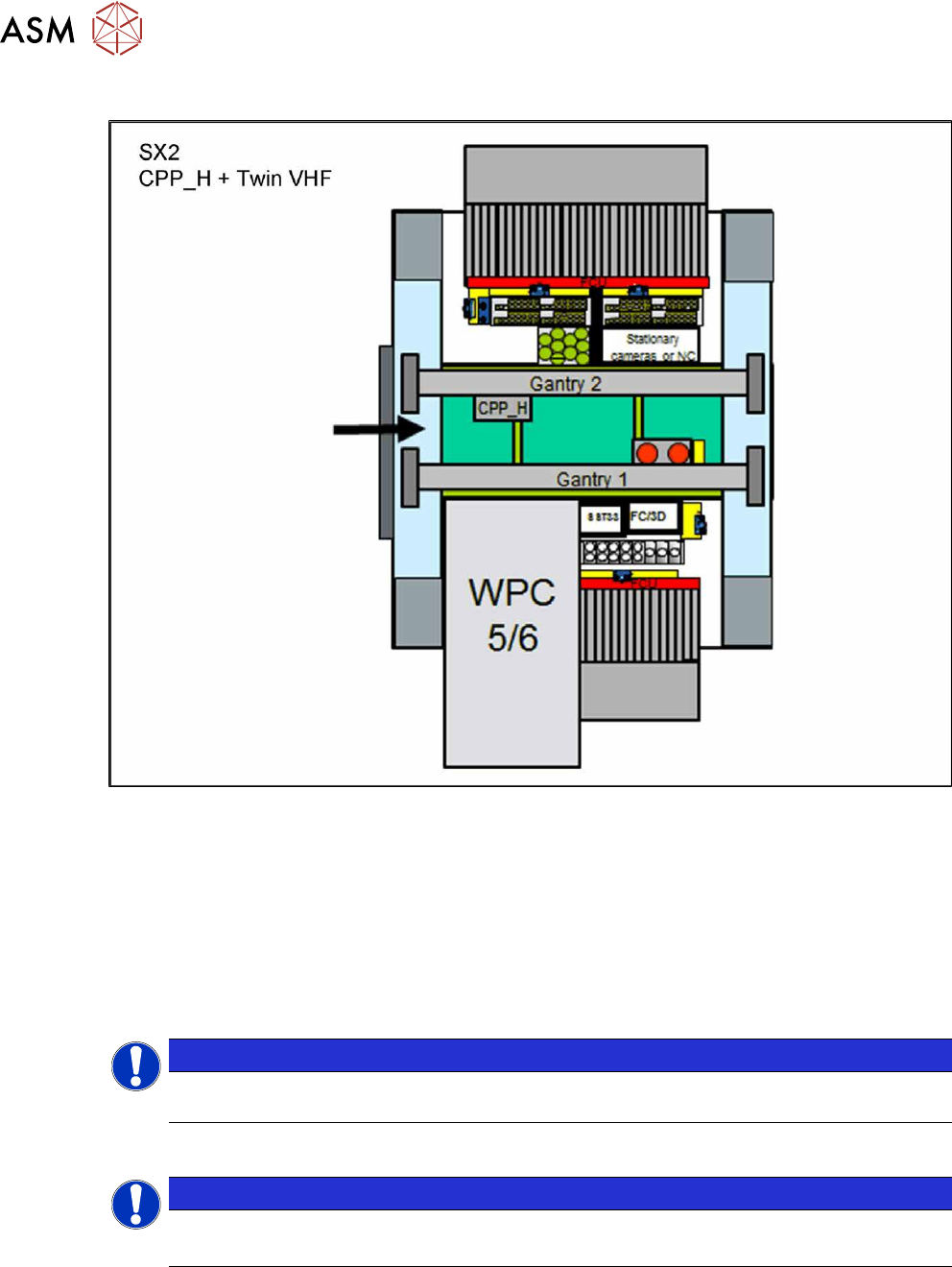

Fig.14: Configuration SIPLACE SX2 – CPP_H and Twin VHF
●
Option: gantry with VHF TH SIPLACE SX V3 [00520557‑xx] (alternative: [03220743‑xx])
●
Reconfiguration kit Twin VHF [03105335-xx]
If a gantry with TwinHead is replaced with a gantry with Twin VHF, the following parts will be
needed:
●
SX V3 stat. camera P&P type 25 GigE [03222727-xx] (optional)
●
SIPLACE WPC 5 standard [00119827-xx]
●
SIPLACE WPC 6 (with non-stop module) [00119828-xx]
NOTICE
Only SIPLACE WPC5/6 from serial number 3xxx can be set for very high components up to
45mm.
●
SPS option (Smart Pin Support) [00519988-xx]
NOTICE
Reversed configuration
Reversed configuration, with CPP_H at gantry 1 and Twin VHF at gantry 2 is possible.
Depending on the configuration of your machine, you may need additional parts. Read the relevant
assembly instructions for more information.
2 Brief Description
2.1 Overview
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Reconfiguration Kit Twin VHF mit Portal
Reconfiguration Kit Twin VHF with Gantry 06/2020
99
2.1.5.4 Configuration SIPLACE SX2 – TwinHead and Twin VHF

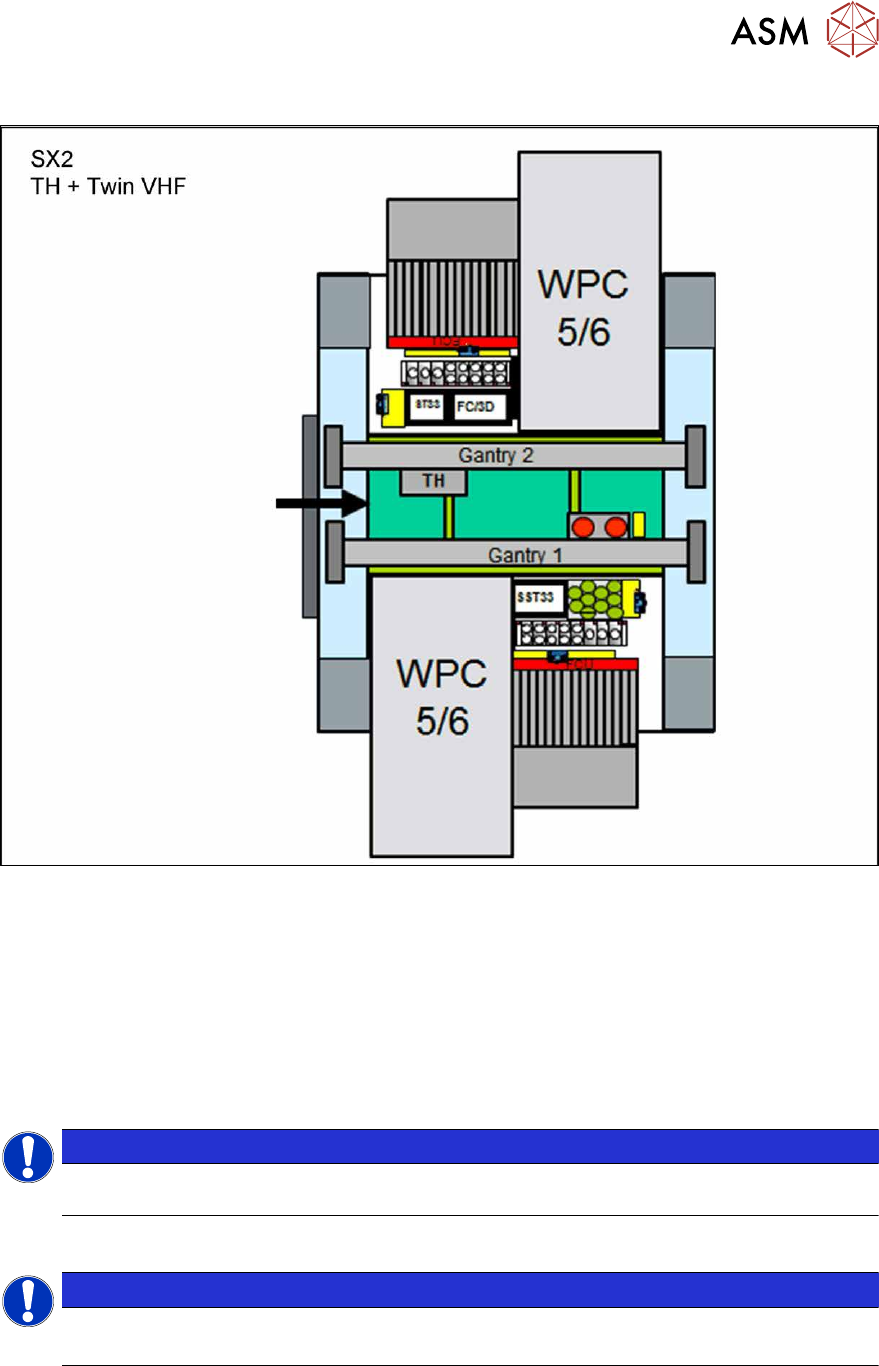

Fig.15: Configuration SIPLACE SX2 – TwinHead and Twin VHF
●
Option: gantry with VHF TH SIPLACE SX V3 [00520557‑xx] (alternative: [03220743‑xx])
●
Reconfiguration kit Twin VHF [03105335-xx]
If a gantry with TwinHead is replaced with a gantry with Twin VHF, the following parts will be
needed:
●
SX V3 stat. camera P&P type 25 GigE [03222727-xx] (optional)
●
SIPLACE WPC 5 standard [00119827-xx]
●
SIPLACE WPC 6 (with non-stop module) [00119828-xx]
NOTICE
Only SIPLACE WPC5/6 from serial number 3xxx can be set for very high components up to
45mm.
●
SPS option (Smart Pin Support) [00519988-xx]
NOTICE
Reversed configuration
Reversed configuration, with TwinHead at gantry 1 and Twin VHF at gantry 2 is possible.
Depending on the configuration of your machine, you may need additional parts. Read the relevant
assembly instructions for more information.
2 Brief Description
2.1 Overview
100 Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Reconfiguration Kit Twin VHF mit Portal
Reconfiguration Kit Twin VHF with Gantry 06/2020
2.1.6 Configurations
2.1.6.1 Table Positions
The table position required for the SIPLACE SX1/SX2 varies according to the head configuration:
SIPLACE SX1:
Gantry 1 C&P20A CPP_L CPP_H
without stat.
camera
CPP_H with
stat. camera
TH/TwinVHF
Table position
location 1
Inner Inner Inner Outer Outer
Table position
location 2
Inner Inner Inner Inner Inner
SIPLACE SX2:
Gantry 1 C&P20A CPP_L CPP_H
with stat.
camera
CPP_H
with stat.
camera
TH/ Twin-
VHF
TH/ Twin-
VHF
TH/ Twin-
VHF
Table position
location 1
Inner Inner Outer Outer Outer Outer Outer
Gantry 2 C&P20A CPP_L CPP_H
with stat.
camera
CPP_H
without
stat.
camera
CPP_H
with stat.
camera
CPP_H
without
stat.
camera
TH/ Twin-
VHF
Table position
location 2
Inner Inner Outer Inner Outer Inner Outer
NOTICE
Stationary cameras
SIPLACE CPP:
Only with component camera stat. P&P (type 33) 55x45 GigE
SIPLACE TwinHead/Twin VHF:
With component camera stat. P&P (type 33) 55x45 GigE at both locations
SX V3 stat. camera P&P type 25 GigE only at location1
