2 Brief Description 2.3 Scope of Delivery 104 Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Reconfiguration Kit Twin VHF mit Portal Reconfiguration Kit Twin VHF with Gantry 06/2020 2.3 Scope of Delivery Req…
2 Brief Description
2.2 Prerequisites
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Reconfiguration Kit Twin VHF mit Portal
Reconfiguration Kit Twin VHF with Gantry 06/2020
103
2.2.1 SIPLACE SX "Prepared"

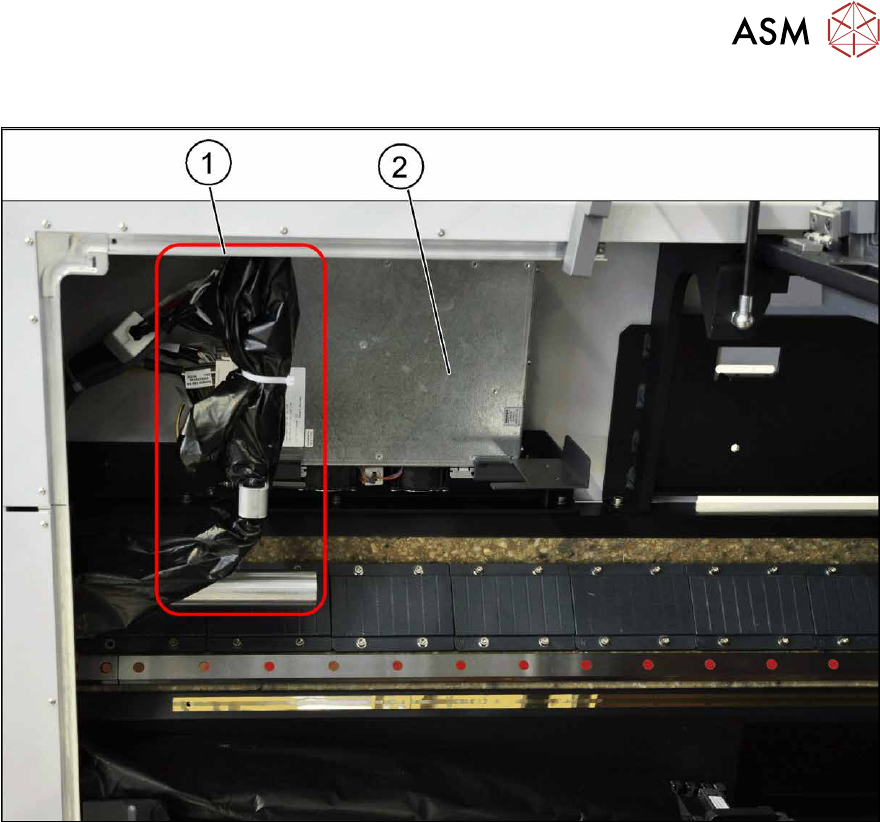

Fig.18: The SIPLACE SX must be in the delivery state "Prepared".
This can be recognized by the presence of a trailing cable (1) and the control unit for the main axes
(MGCU (2)
). This applies for the SIPLACE SX+ machine, in order to retrofit gantry 1 at location 1 or
for the SIPLACE SX1 "Prepared", in order to retrofit gantry 2 at location 2.
The trailing cable is packed in a black plastic case and is fixed at the side (1).
If this is not the case, your machine will need to be retrofitted accordingly. Contact your SIPLACE
Service team for details.
2 Brief Description
2.3 Scope of Delivery
104 Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Reconfiguration Kit Twin VHF mit Portal
Reconfiguration Kit Twin VHF with Gantry 06/2020
2.3 Scope of Delivery
Required parts:
●
Option: gantry with VHF TH SIPLACE SX V3 [00520557‑xx] (alternative: [03220743‑xx])
Contents:
Quant-
ity
Designation Item no.
1 GR gantry 40 mm SX V3 03220745-xx
2 VHF-Twin module 03096701-xx
2 MHCU assembly, compatible 03090990-xx
1 Camera lens hood assembly VHF TwinHead 03104859-xx
1 PCB / B-Base adapter TWIN 03055517-xx
1 Nozzle set, TwinHead 03019633-xx
1 Cable set TwinHead / B series 03065968-xx
1 Hose system TwinHead, VHF SX1/2 03106594-xx
1 Blanking plug QSC-6H 00337891-xx
1 Blanking plug QSC-4H 00330249-xx
2 Standard nozzle 508 VHFM assy. 03094257-xx
1 ISO 4762 - M 3 x 6-A2-70 03042541-xx
8 ISO 4762 - M 4 x 14-8.8, zinc, DSP 03069100-xx
2 Cable ties B=2.5mm, L=102mm Panduit 00308458-xx

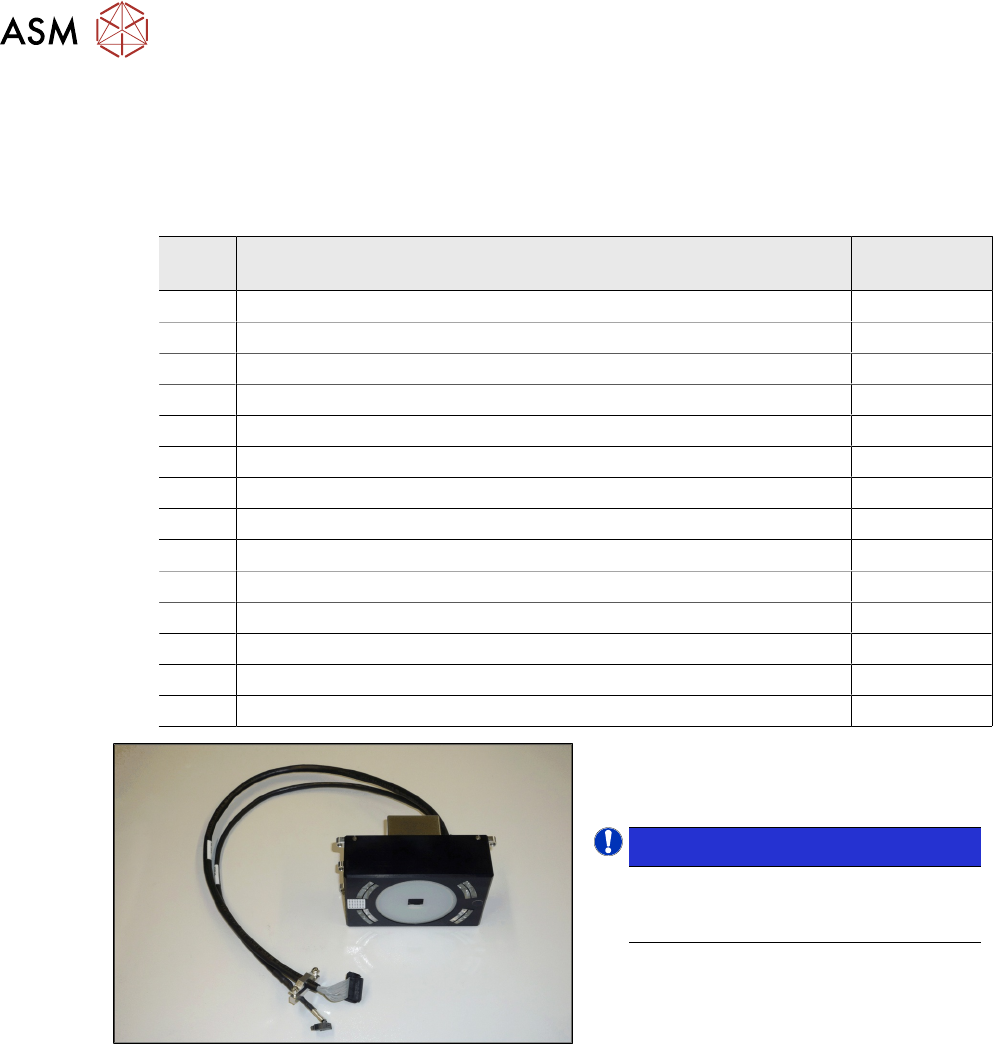

Fig.19: PCB camera type 34HU
●
PCB camera type 34HU GigE
[03218360‑xx] (part of the gantry
[03220745‑xx], see above)
NOTICE!
This PCB camera differs from the
standard camera. Remember this e.g.
when ordering spare parts.
.
●
Gantry carrier [00519814-03]
The gantry is supplied on a gantry carrier.
This gantry carrier must have at least function state 03 for use with the 40mm gantry.
2 Brief Description
2.3 Scope of Delivery
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Reconfiguration Kit Twin VHF mit Portal
Reconfiguration Kit Twin VHF with Gantry 06/2020
105
Optional parts:
The following parts may be needed, depending on the configuration:
●
Reconfiguration kit VHF Twin module [03105335-xx]
This retrofit kit is needed if a SIPLACE SX1 is upgraded to a SIPLACE SX2 with 40mm
gantry or a gantry with C&P is replaced with a 40mm gantry with VHF.
The kit contains the following parts:
Quant-
ity
Designation Item no.
1 Folding cover front section 40 mm 03103955-xx
2 Stop block components 40 mm 03105259-xx
3 Coding sheet box assembly
consisting of:
03084178-xx
1 Coding sheet box 03083883-xx
2 ISO4762 - M4 x 10-A2-70 03042552-xx
1 Assembly instructions "Reconfiguration kit Twin VHF with gantry"
SX1/SX2 V3
00198783-xx
1 ASM lettering, white self-adhesive 140 mm 03086852-xx
1 SIPLACE lettering, white self-adhesive 170 03086853-xx
1 Sector label 1-4 4-color, 65 mm 03009552-xx
2 Warning sign no. W204 03009343-xx
●
Barcode label:
Barcode location 1 [03063673-xx] or
Barcode location 2 [03063693-xx]
●
Upgrade kit stat. camera type 33, SX V3 [03225370-xx]
(SX V3 stat. camera P&P type 25 GigE [03222727-xx])
●
Nozzle changer TH SX series [00519845-xx]
●
SPS option (Smart Pin Support) [00519988-xx]
●
SIPLACE WPC 5 standard [00119827-xx]
●
SIPLACE WPC 6 (with non-stop module) [00119828-xx]
NOTICE
Only SIPLACE WPC5/6 from serial number 3xxx can be set for very high components up to
45mm.
NOTICE
Depending on the configuration of your machine, you may need additional parts.
The BOMs for regular options can be found in the respective assembly instruction manuals.
