2 Brief Description
2.3 Scope of Delivery
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Reconfiguration Kit Twin VHF mit Portal
Reconfiguration Kit Twin VHF with Gantry 06/2020
105
Optional parts:
The following parts may be needed, depending on the configuration:
●
Reconfiguration kit VHF Twin module [03105335-xx]
This retrofit kit is needed if a SIPLACE SX1 is upgraded to a SIPLACE SX2 with 40mm
gantry or a gantry with C&P is replaced with a 40mm gantry with VHF.
The kit contains the following parts:
Quant-
ity
Designation Item no.
1 Folding cover front section 40 mm 03103955-xx
2 Stop block components 40 mm 03105259-xx
3 Coding sheet box assembly
consisting of:
03084178-xx
1 Coding sheet box 03083883-xx
2 ISO4762 - M4 x 10-A2-70 03042552-xx
1 Assembly instructions "Reconfiguration kit Twin VHF with gantry"
SX1/SX2 V3
00198783-xx
1 ASM lettering, white self-adhesive 140 mm 03086852-xx
1 SIPLACE lettering, white self-adhesive 170 03086853-xx
1 Sector label 1-4 4-color, 65 mm 03009552-xx
2 Warning sign no. W204 03009343-xx
●
Barcode label:
Barcode location 1 [03063673-xx] or
Barcode location 2 [03063693-xx]
●
Upgrade kit stat. camera type 33, SX V3 [03225370-xx]
(SX V3 stat. camera P&P type 25 GigE [03222727-xx])
●
Nozzle changer TH SX series [00519845-xx]
●
SPS option (Smart Pin Support) [00519988-xx]
●
SIPLACE WPC 5 standard [00119827-xx]
●
SIPLACE WPC 6 (with non-stop module) [00119828-xx]
NOTICE
Only SIPLACE WPC5/6 from serial number 3xxx can be set for very high components up to
45mm.
NOTICE
Depending on the configuration of your machine, you may need additional parts.
The BOMs for regular options can be found in the respective assembly instruction manuals.
2 Brief Description
2.4 Tools and Equipment Required
106 Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Reconfiguration Kit Twin VHF mit Portal
Reconfiguration Kit Twin VHF with Gantry 06/2020
2.4 Tools and Equipment Required
●
Gantry lift
WARNING
Installation
The installation can be performed manually, although we do recommend using a gantry lift
for safety purposes.
●
Gantry carrier plate for SX1/SX2 [03012160-xx]
●
Torque wrench (2–25Nm) [00376625‑xx]
●
Loctite 241 [02101037-xx]
●

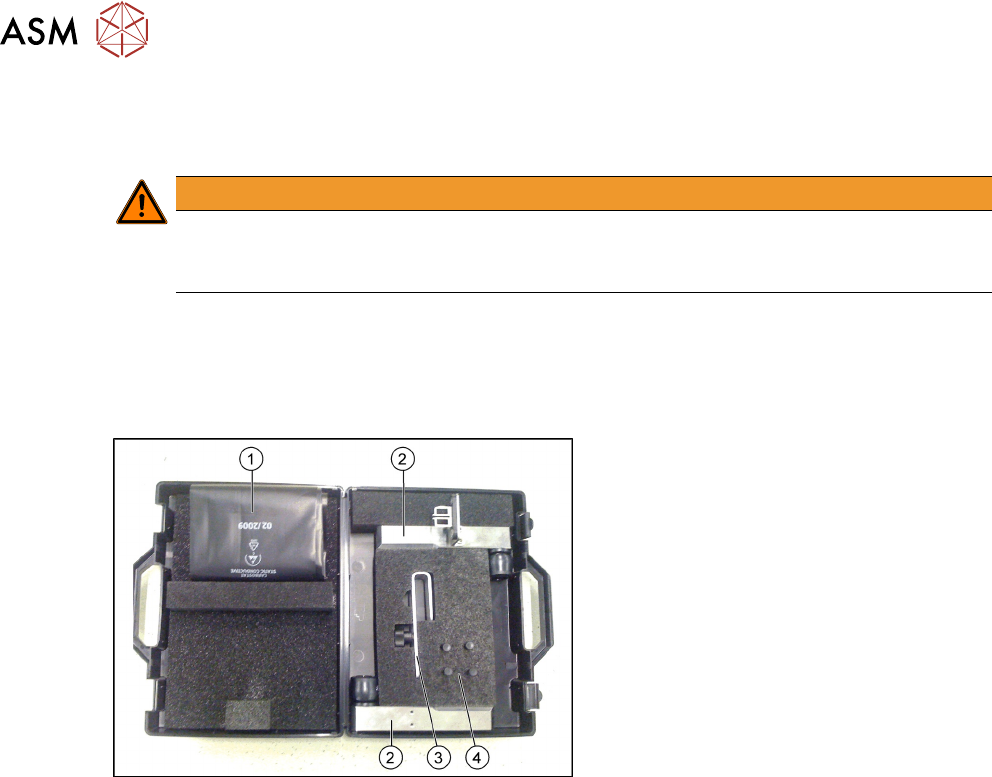

Prepared case (plastic case with foam insert) containing the following:
Prepared case
The case is configured differently depending
on the machine type.
1. Trailing cable protective foil
2. Buffer stop (2x)
3. Trailing cable mount
4. Pneumatic hose plug (4x)
●
Help of second person, if needed
●
If required, assembly instructions "Gantry modularity - SIPLACE SX1/SX2" [00196626-xx]
●
Torque screwdriver 100-500 Ncm [03078400-xx]
●
Extension/straight TX20 [03073256-xx]
●
Extension/straight [03043440-xx]
●
Bit holder for Torque Vario-S screwdriver [03078706-xx]
●
Calibration tool version 3 [03010565-xx]
3 Fitting the gantry
3.1 Preparations at the Machine
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Reconfiguration Kit Twin VHF mit Portal
Reconfiguration Kit Twin VHF with Gantry 06/2020
107
3 Fitting the gantry
NOTICE
Exemplary description
This manual describes the upgrading of gantry 2 at location 2. The assembly of gantry 1 is
the same. The diagrams sometimes show standard gantries as an example. You should
still perform the tasks described. Any differences will be explicitly indicated.
NOTICE
Mapping
When upgrading gantry 1 (master gantry) at location 1, component board mapping must be
performed after the assembly.
► Observe the technical information "Information about mapping" [DE:TI2017‑10D04]
[EN:TI2017‑10E04].
3.1 Preparations at the Machine
3.1.1 Fitting the Stationary Camera
If not already present, you will need to fit a stationary camera.
► Refer to the appropriate assembly instructions:
– Assembly instructions "SIPLACE X-Series S, SX-Series V3 stationary camera type 25/33
(GigE)" [DEEN:00197710‑xx]
3.1.2 Removing the Gantry
► If you need to remove an existing gantry before installation, read the assembly instructions
"Gantry modularity SX1/SX2 V3" [00198705-xx] (English/German).
3.1.3 Opening the Covers
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}85]

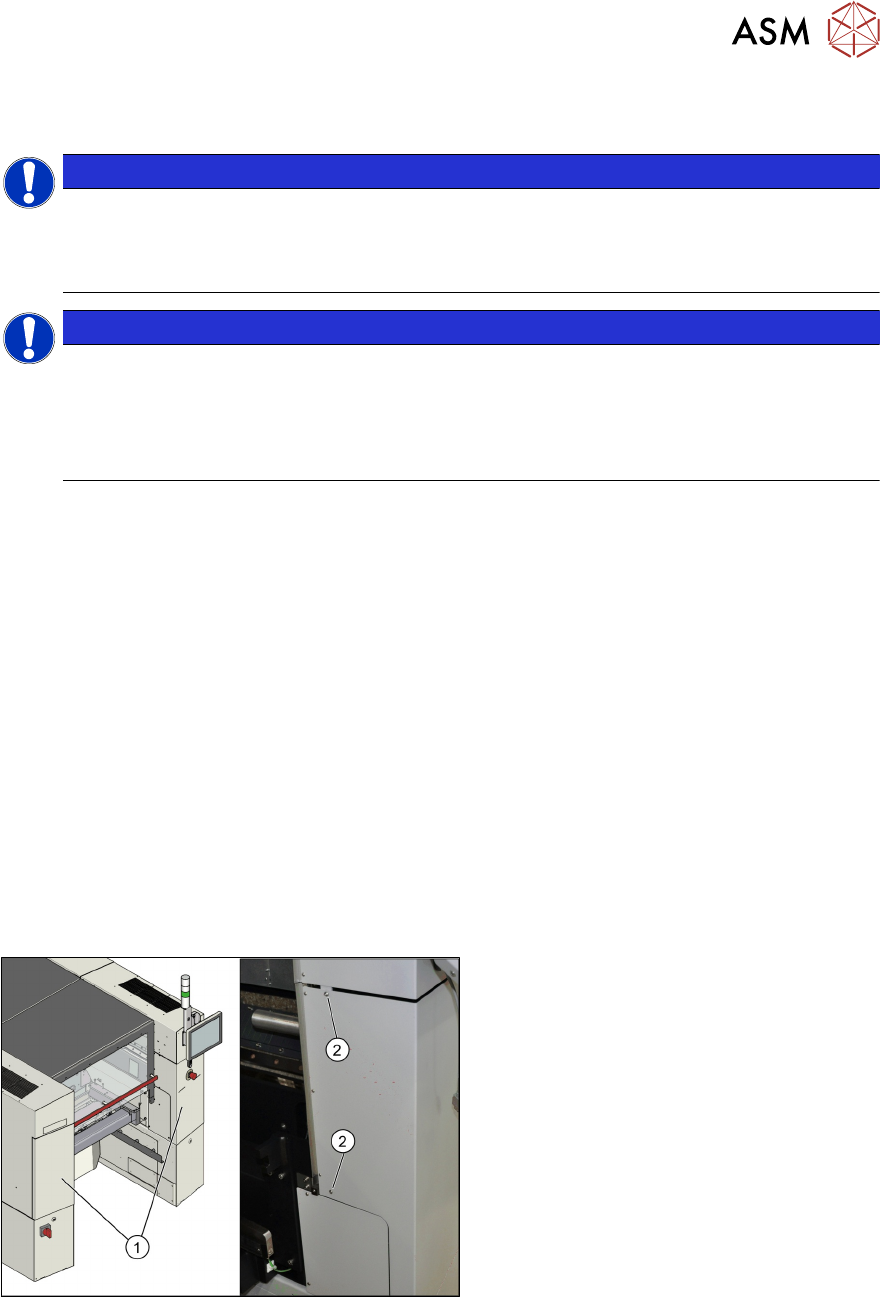

Fig.20: Overview of protective cover
► Open the protective cover at location 2
and move the component trolley out of
the machine.
► Loosen the two screws (2) fastening
the side covers (1)
on the right and left.
► Open the two covers (1).
